Corner Safety Barrier - 900 × 500mm Bolt-Down - 70mm Steel Tube
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
70mm Steel Tube - 605mm High - High-Visibility Yellow - 10mm Bolt-Down Base Plates - Free Next Day Delivery

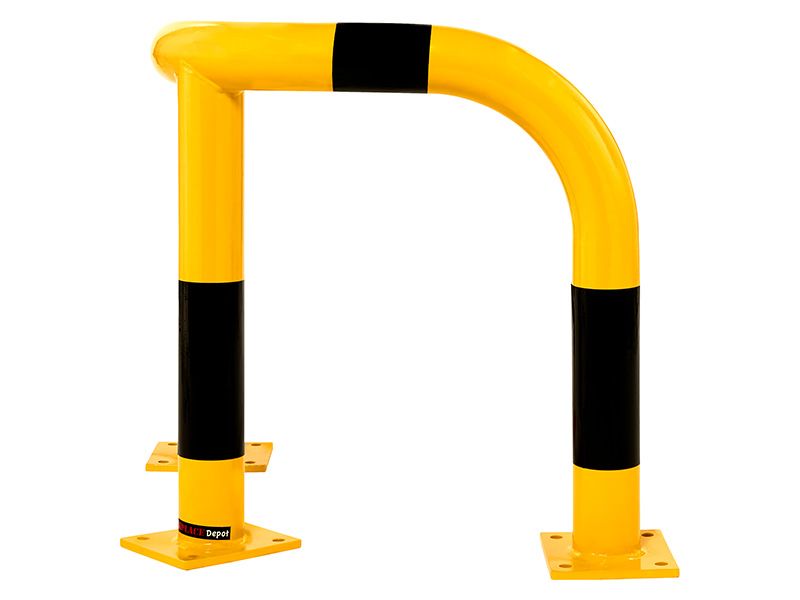

- 70mm Steel Tube: Rigid steel frame guards corners of racking, machinery and walls.
- 605mm Overall Height: Low-level frame guards the base of corners against knocks.
- 900 × 500mm Footprint: Covers both faces of a corner in one bolt-down unit.
- High-Visibility Yellow: Bright coating marks the corner for drivers and pedestrians.
- 160mm × 140mm Base Plates: Plates bolt to the floor for a fixed, stable fit.
- 10mm Thick Base Plates: Thick steel plates give a solid footing at each fixing.
- 15mm Bolt Holes: Holes set 110mm apart, so installers can plan fixings in advance.
- Fixing Bolts Included: Supplied with fixing bolts for straightforward surface mounting.
- Indoor and Outdoor Use: Weather-resistant build suits warehouse aisles and outdoor yards.
- 16kg Unit Weight: Manageable to carry and hold in position before bolting down.
- 605 × 900 × 500mm: Measures 605mm high, 900mm wide and 500mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your barrier delivered free the next working day.

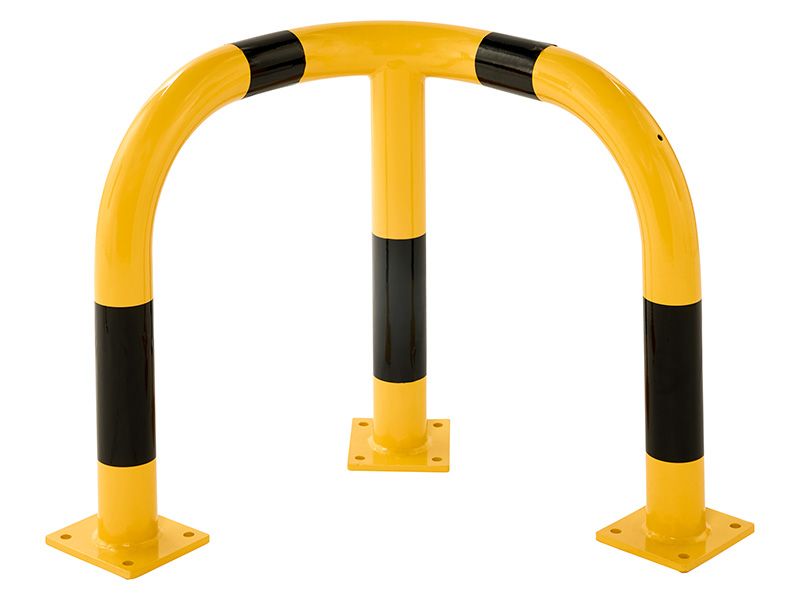

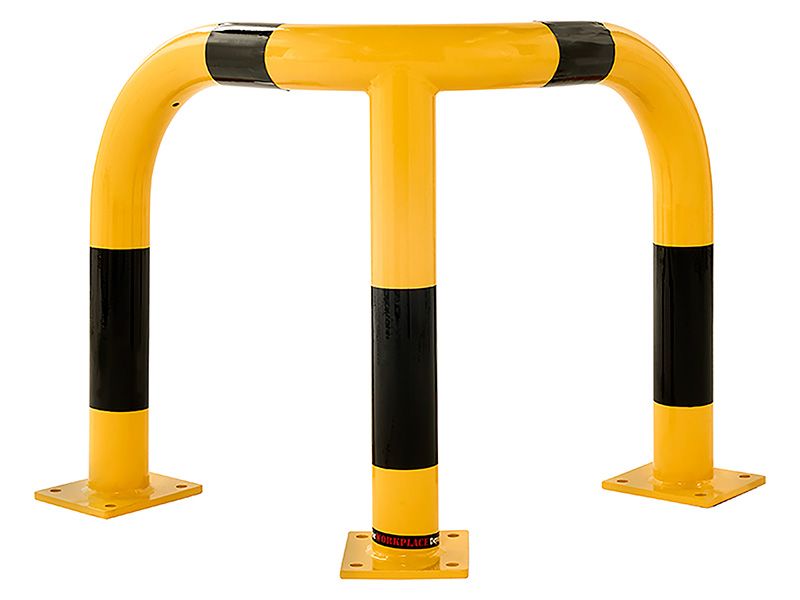

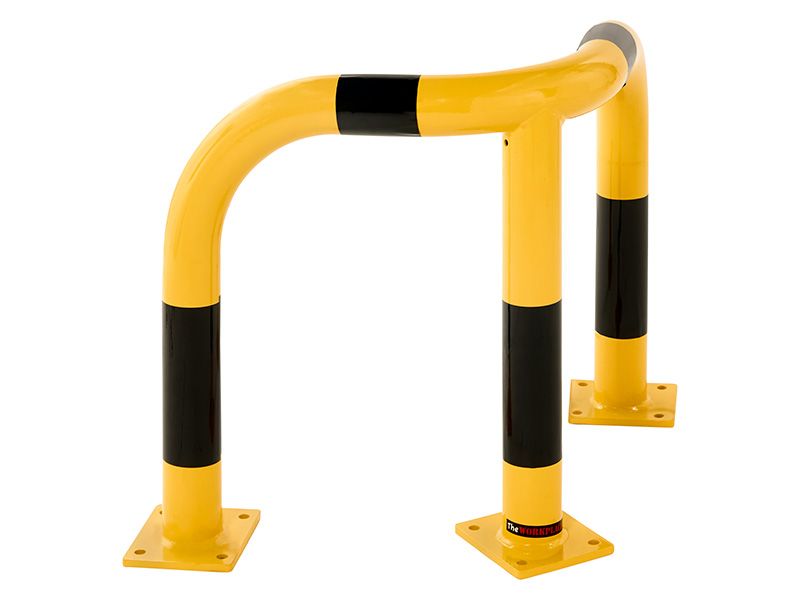

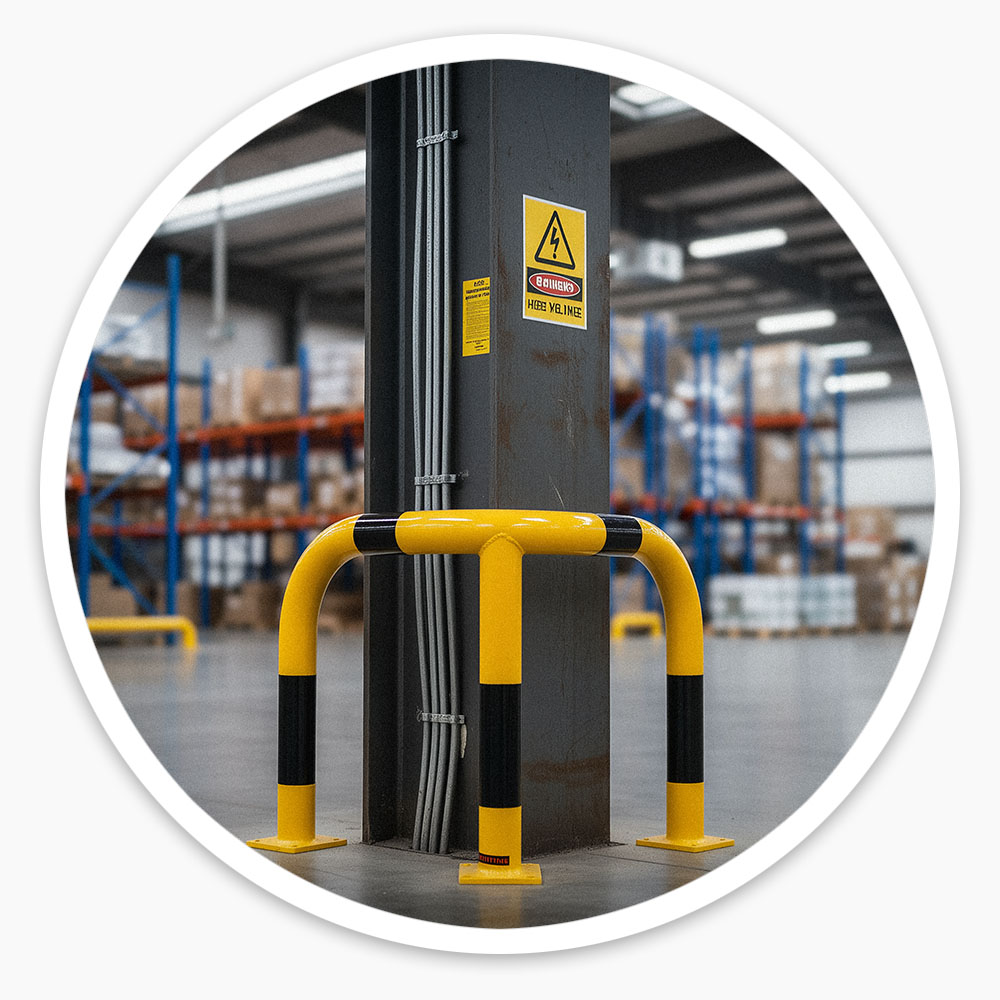

Guards Corners of Racking, Machinery and Walls
This corner safety barrier protects the exposed corners of racking, machinery, walls and buildings from knocks by forklifts, pallet trucks and other vehicles. Made from 70mm steel tube in high-visibility yellow, it stands 605mm high, covers a 900 × 500mm footprint and bolts down through 10mm thick base plates. It suits warehouses, factories and yards.
Specification
HEIGHT- 605mm
WIDTH- 900mm
DEPTH- 500mm
TUBE DIAMETER- 70mm
- INSIDE GAP
- 370mm
- BASE PLATE LENGTH
- 160mm
- BASE PLATE WIDTH
- 140mm
BASE PLATE THICKNESS- 10mm
- BOLT HOLE DIAMETER
- 15mm
- BOLT HOLE DISTANCE
- 110mm
WEIGHT- 16kg
COLOUR- Yellow
MATERIAL- Steel
- DIAMETER
- 70mm
- BASE PLATE DEPTH
- 160mm
FEATURES- Bolt Down
WARRANTY- 1 year
COMMODITY CODE- 7326909290
- GTIN
- 5061036697720

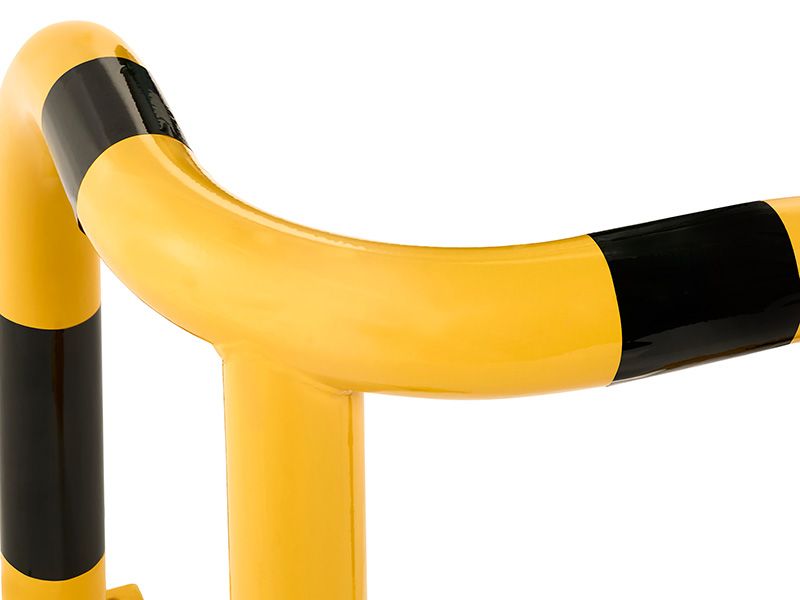

70mm Steel Tube Construction

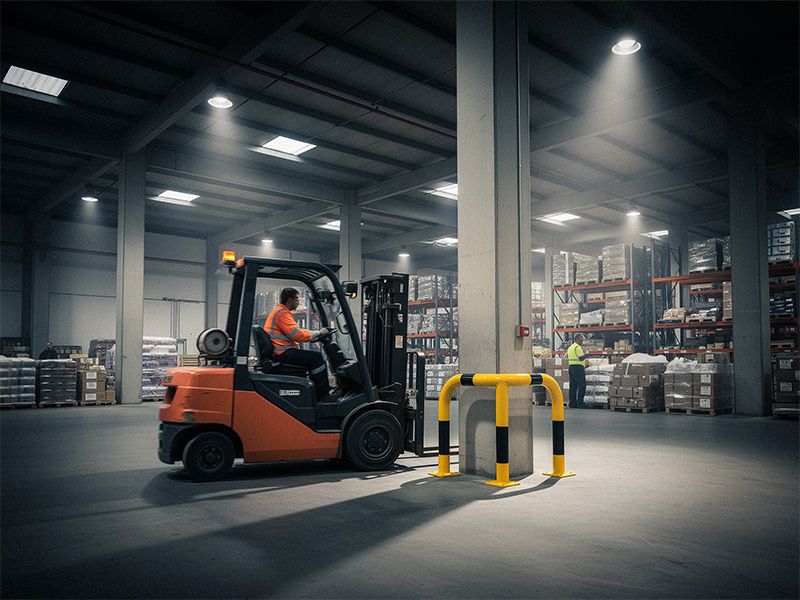

The barrier is made from 70mm steel tube welded into a rigid frame, so it stands up to daily knocks in busy warehouses, factories and yards. It guards the corner of racking, machinery or a wall, giving forklift and vehicle drivers a solid, visible point to steer around instead of the structure behind it.
900 × 500mm Corner Coverage

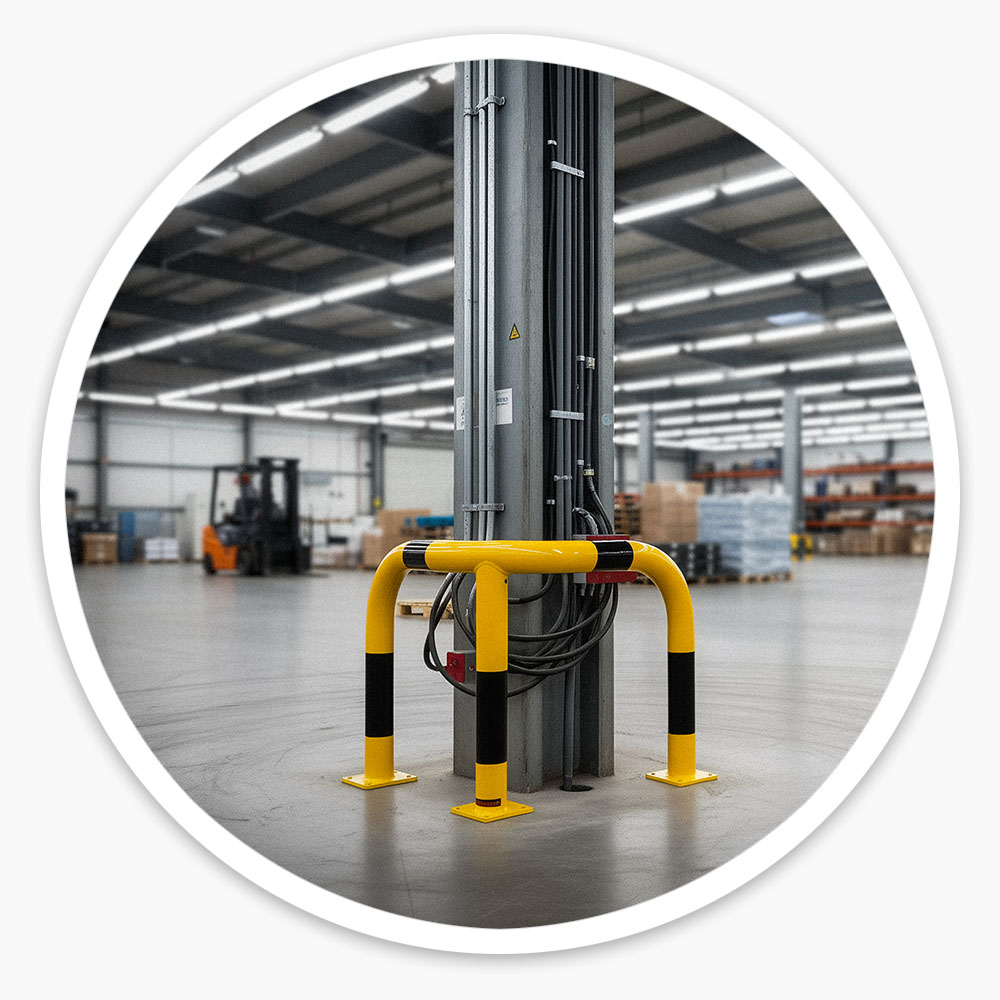

At 900mm wide and 500mm deep, the barrier wraps round a corner and guards both faces in one bolt-down unit. Standing 605mm high, it protects the low-level edges of racking ends, machine guards, columns and building corners, where turning vehicles tend to clip them.
High-Visibility Yellow Finish
The high-visibility yellow coating stands out against warehouse floors, racking and walls, so drivers and pedestrians see the corner straight away. It stays easy to spot in busy aisles and low light, giving a constant visual warning at the points where vehicles turn close to structures.

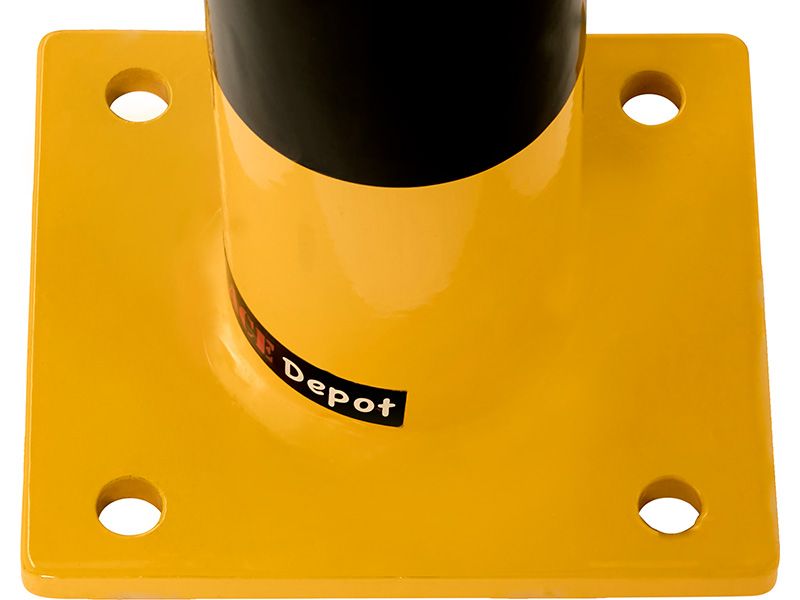

Bolt-Down 10mm Base Plates
The barrier bolts to the floor through 160mm × 140mm base plates, 10mm thick, with 15mm bolt holes set 110mm apart. It stays fixed when knocked, and fixing bolts are included for surface mounting, so facilities teams can fit it without digging or groundwork.

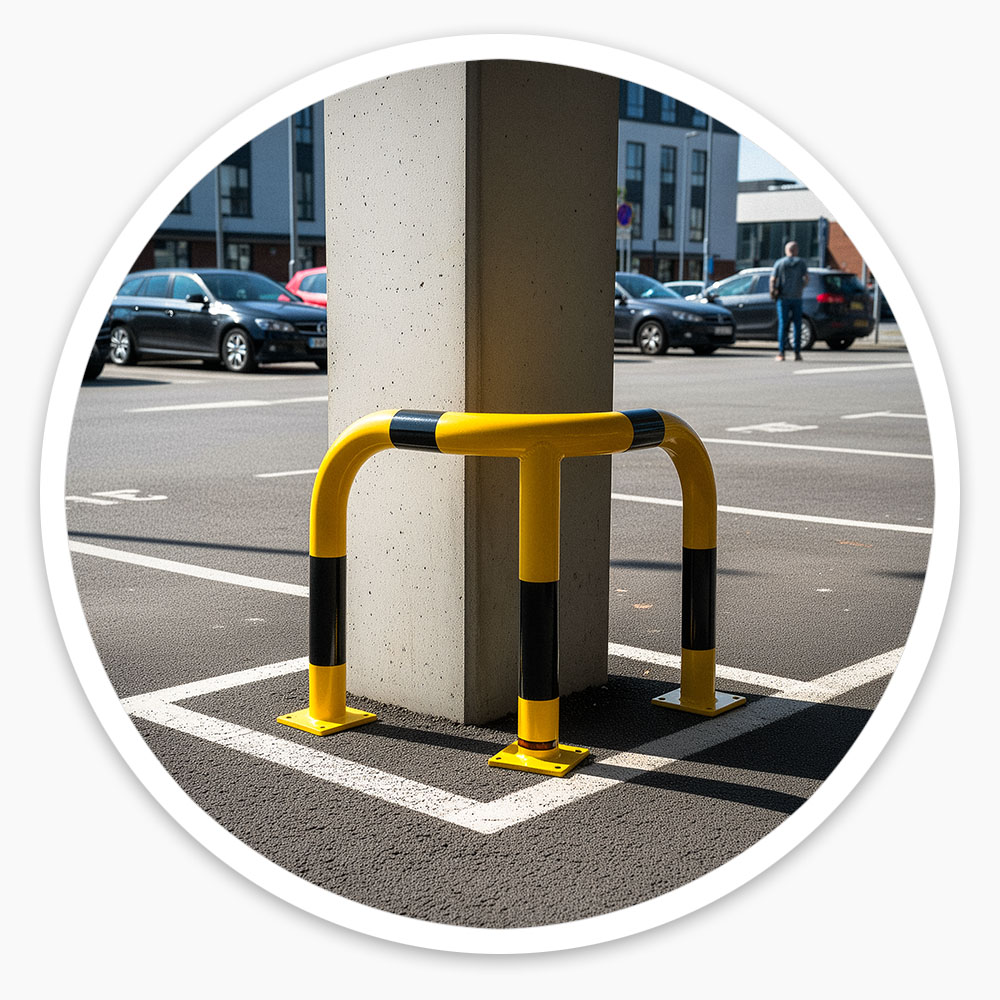

Built for Indoor and Outdoor Use
The steel barrier and its coating are built to withstand the weather, so it suits outdoor yards, loading bays and building corners as well as indoor aisles. Rain, frost and sun don’t stop it doing its job, and it keeps its bright yellow visibility in all conditions.

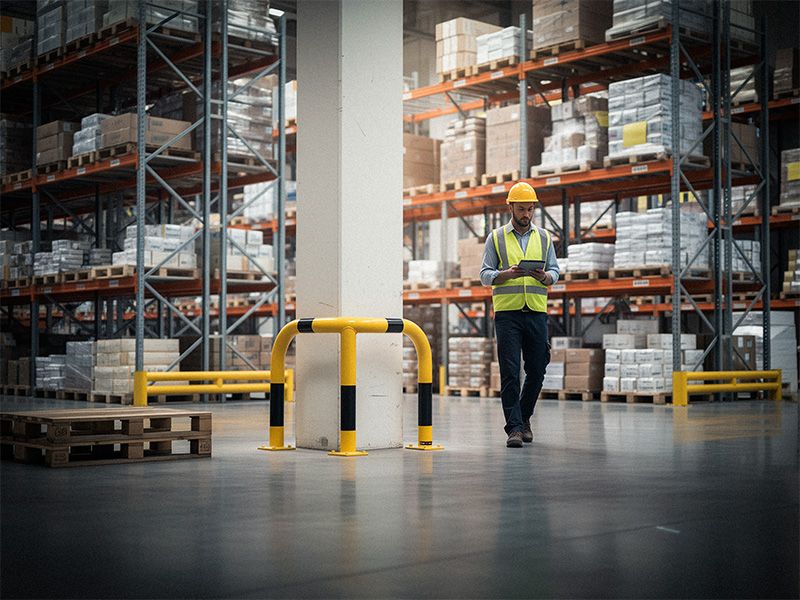

Part of a Wider Barrier Layout
The corner barrier is the piece that turns protection round a corner of racking, machinery or a building. Use it alongside straight walkway barriers, rack end barriers or hooped barriers to guard a full route or area, with each unit bolted down on its own in the position your layout needs.
Manageable 16kg Weight for Fitting
Weighing 16kg, the barrier can be carried to site, held in place and marked out before drilling. Because it bolts to the surface, it can be unbolted and refitted when a layout changes, so the corner protection can follow new racking, aisles or machinery positions.
Why Choose This Corner Safety Barrier?
- 70mm Steel Tube – Rigid steel frame stands up to daily knocks.
- 900 × 500mm Coverage – Guards both faces of a corner in one unit.
- High-Visibility Yellow – Easy for drivers and pedestrians to see.
- Indoor and Outdoor Use – Weather-resistant build suits aisles and yards.
- 10mm Base Plates – Bolt-down plates hold it firmly in place.
- Fixing Bolts Included – Ready for surface mounting when it arrives.
- 1 Year Warranty – Backed by a one-year warranty.
- Free Next Day Delivery – Order before 4pm and fit it the next working day.
Frequently Asked Questions
What is this corner safety barrier used for?
It protects the exposed corners of racking, machinery, walls and buildings from knocks by forklifts, pallet trucks and other vehicles. It’s used in warehouses, factories, loading bays and yards, where the 70mm steel tube frame and high-visibility yellow finish give drivers a clear point to steer around.
What size is the corner safety barrier?
It measures 605mm high, 900mm wide and 500mm deep, with a 370mm inside gap. It’s made from 70mm steel tube and bolts down through 160mm × 140mm base plates, 10mm thick. To guard a doorway or piece of plant at full height, see our hooped perimeter barrier.
Are fixing bolts included?
Yes. The barrier comes with fixing bolts for surface mounting through its 160mm × 140mm base plates, which are 10mm thick. The bolt holes are 15mm in diameter and set 110mm apart. Please contact our team if you need the bolt size or anchor type before ordering.
Can the corner barrier be used outdoors?
Yes. The steel barrier is built for indoor and outdoor use and withstands the weather, so it suits outdoor yards, loading bays and building corners as well as indoor aisles.
Can I move the barrier if our layout changes?
Yes. The barrier bolts down on the surface rather than being set into the ground, so it can be unbolted and refitted in a new position with no digging. At 16kg, it’s manageable to carry and hold in place while you refit it.
Will the corner barrier stop a forklift?
We don’t publish an impact rating, so it shouldn’t be relied on to stop a vehicle. It’s a 70mm steel tube barrier that marks out and guards a corner. To protect the end of a racking run, see our rack end barriers, and base your choice on a site risk assessment and HSE workplace transport guidance.
Can I use the corner barrier with other barriers?
Yes. Each corner barrier bolts down on its own, so it can guard the corner where a route lined with our walkway barriers turns past racking, machinery or a wall. Each unit is fixed separately in the position your layout needs.
What warranty does the corner safety barrier have?
The corner safety barrier is backed by a one-year warranty. Contact our team if you have a question about cover or need help with a claim.
