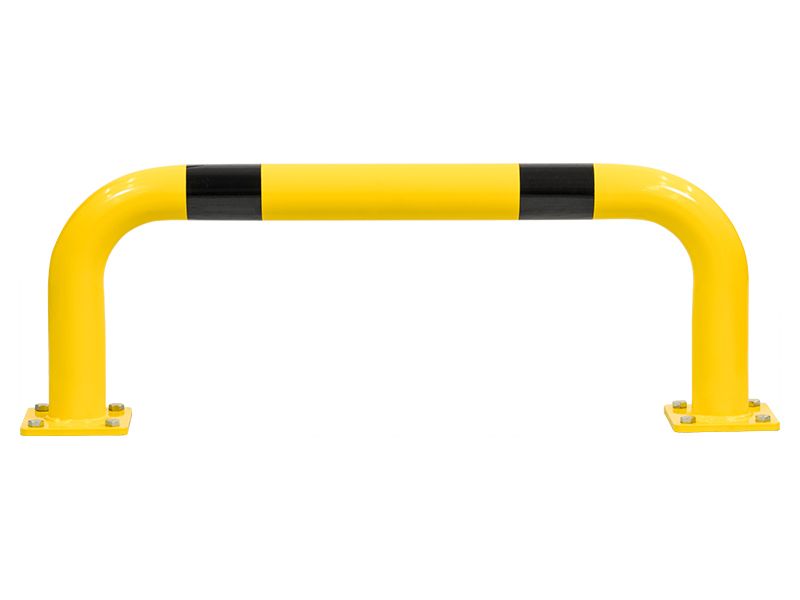

Tubular Rack End Barrier - 1065mm Wide Bolt-Down - 70mm Steel Tube
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
70mm Steel Tube - 355mm High - 245mm Ground to Rail - Yellow Powder-Coated Finish - Bolt-Down Base Plates - Free Next Day Delivery
- 70mm Steel Tube: Rigid steel frame guards the exposed end frames of racking runs.
- 355mm Overall Height: Low-level guard protects the base of racking end frames.
- 245mm Ground to Rail: Rail sits 245mm up to take low-level knocks from pallet trucks.
- 825mm Internal Width: Clear span between the uprights sits across the end of a run.
- High-Visibility Yellow: Bright yellow finish stands out to forklift drivers and staff.
- Powder-Coated Steel: Protective coating resists rust and weather indoors or out.
- 144mm × 164mm Base Plates: Plates bolt to the floor for a fixed, stable fit.
- Surface Bolt-Down Fixing: Unbolts and refits with no digging when layouts change.
- 12.7kg Unit Weight: Solid steel build that’s still easy to carry and position.
- 355 × 1065 × 164mm: Measures 355mm high, 1065mm wide and 164mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your barrier delivered free the next working day.

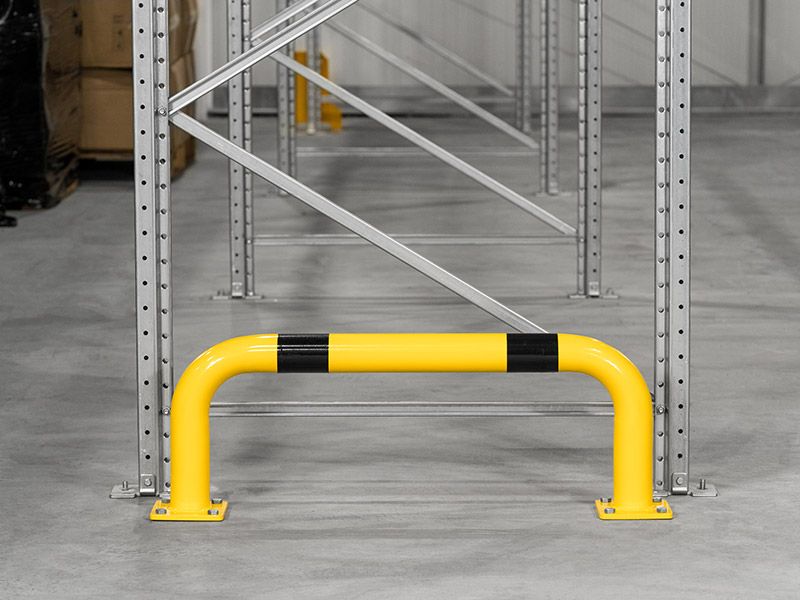

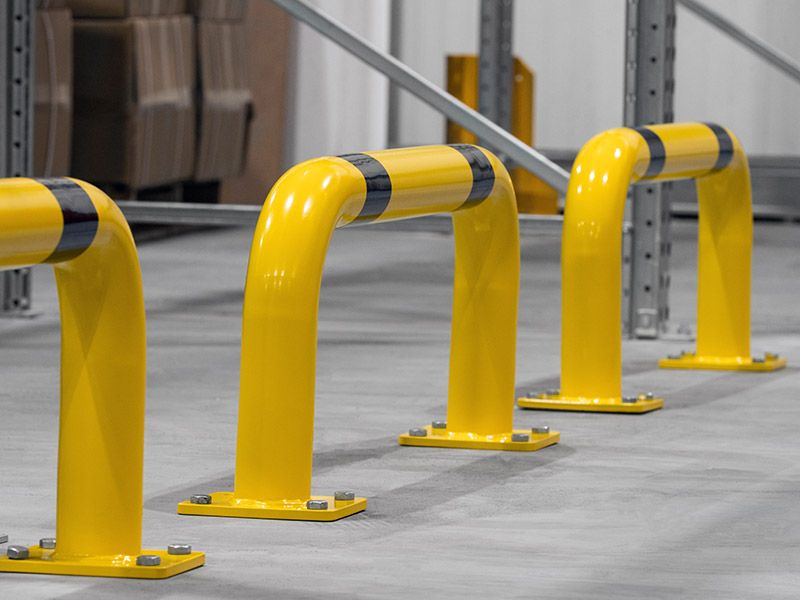

Guards the Exposed Ends of Racking Runs
This rack end barrier bolts down in front of the exposed end frame of a pallet racking run, where forklifts and pallet trucks turn into the aisle. Built from 70mm steel tube in a high-visibility yellow finish, it stands 355mm high and 1065mm wide, with its rail 245mm from the ground. It suits warehouses, distribution centres and stores with single-entry or double-entry runs.

Specification
OVERALL WIDTH- 1065mm
OVERALL HEIGHT- 355mm
BASE PLATE DEPTH- 164mm
BASE PLATE WIDTH- 144mm
GROUND TO RAIL- 245mm
INTERNAL WIDTH- 825mm
TUBE DIAMETER- 70mm
WEIGHT- 12.7kg
OVERALL DEPTH- 164mm
DIAMETER- 70mm
MATERIAL- Steel
FEATURES- Bolt Down
COLOUR- Yellow
WARRANTY- 1 year
COMMODITY CODE- 7326909290
GTIN- 0723172231729

70mm Steel Tube Construction
The barrier is made from 70mm mild steel tube, giving a rigid frame that stands up to daily use in busy warehouses. It sits in front of the exposed end frame of a racking run, giving forklift and pallet truck drivers a solid, visible line to steer around as they turn into the aisle.
Low 245mm Ground to Rail Height
The rail sits 245mm from the ground and the barrier stands 355mm high overall, putting the guard low down at the base of the end frame, the part turning vehicles and pallet trucks tend to catch. Vehicles meet the barrier rather than the upright, helping protect the frame that holds up the run.


High-Visibility Yellow Finish
The bright yellow finish stands out against warehouse floors and racking, so forklift drivers and pedestrians see the end of the run straight away. Although the barrier sits low at 355mm high, its colour means it’s noticed before a turn rather than after a knock, even in low light.

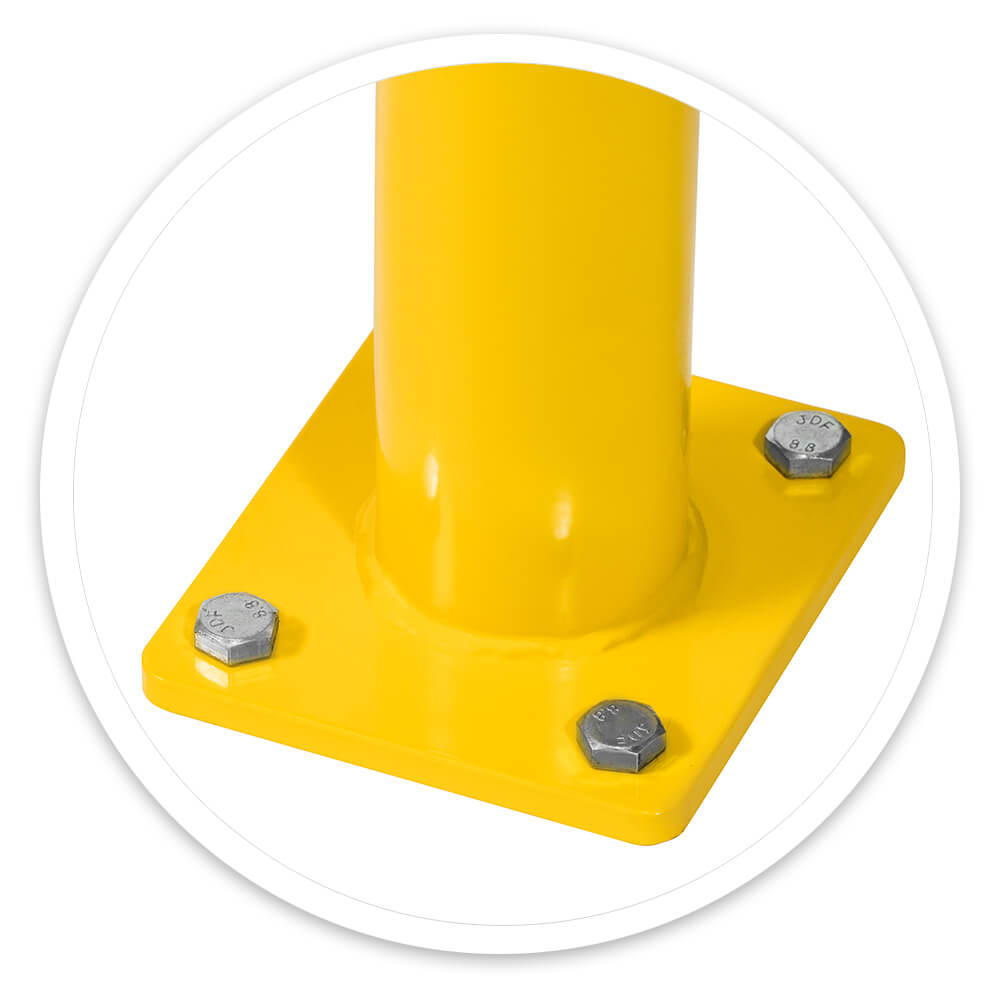

Bolt-Down 144mm × 164mm Base Plates
Each upright stands on a 144mm × 164mm steel base plate that bolts to the floor, giving a fixed, stable barrier that stays put when knocked. It mounts on the surface, so facilities teams can fit it in front of existing racking without digging or groundwork.


Weather-Resistant Powder Coating
A protective powder coating shields the steel from rust and wear, so the barrier suits outdoor racking, yards and loading areas as well as indoor aisles. Damp, frost and moisture don’t stop it doing its job, and the yellow finish stays easy to see whatever the conditions.
1065mm Width for Racking Ends
At 1065mm wide with 825mm between the uprights, the barrier sits across the end of a racking run as a single unit. Fit one at each exposed end of single-entry or double-entry runs, so every end frame along an aisle has its own guard. Check your end frame depth against the 825mm internal width before ordering.


Solid 12.7kg Design for Easy Fitting
Weighing 12.7kg, the barrier is solid steel yet manageable to carry to site, hold in place and mark out before drilling. Because it bolts to the surface, it can be unbolted and refitted when a layout changes, so the guard can follow racking that is moved, extended or re-laid.
Why Choose This Tubular Rack End Barrier?
- 70mm Steel Tube – Rigid steel frame stands up to daily warehouse use.
- 245mm Ground to Rail – Guards the base of racking end frames at low level.
- High-Visibility Yellow – Easy for forklift drivers and pedestrians to see.
- Weather-Resistant Coating – Powder coating protects against rust indoors or out.
- Bolt-Down Fixing – 144mm × 164mm base plates hold it firmly in place.
- Easy to Relocate – Unbolts and refits with no digging when racking moves.
- 1 Year Warranty – Backed by a one-year warranty.
- Free Next Day Delivery – Order before 4pm and fit it the next working day.

Frequently Asked Questions
What is this rack end barrier used for?
It guards the exposed end frame of a pallet racking run from forklifts and pallet trucks turning into the aisle. It’s used at the ends of single-entry and double-entry runs in warehouses, distribution centres and stores, where the 355mm high steel frame and yellow finish give a clear, low-level guard.
What size is the rack end barrier?
It measures 355mm high, 1065mm wide and 164mm deep, with 825mm internal width between the uprights. The rail sits 245mm from the ground, and the base plates are 144mm wide and 164mm deep. For guarding pedestrian routes rather than racking, see our walkway barriers.
Are fixing bolts included?
Fixings aren’t listed for this barrier, so please contact our team to confirm what’s supplied before ordering. The barrier bolts down through its 144mm × 164mm steel base plates, and our team can advise on bolt hole size and spacing.
Can the rack end barrier be used outdoors?
Yes. The steel is protected by a weather-resistant powder coating that guards against rust, so the barrier suits outdoor racking, yards and loading areas as well as indoor aisles.
Can I move the barrier if our racking layout changes?
Yes. The barrier bolts down on the surface rather than being set into the ground, so it can be unbolted and refitted in a new position with no digging. At 12.7kg, it’s manageable to carry and hold in place while you refit it.
Will the rack end barrier stop a forklift?
We don’t publish an impact rating, so it shouldn’t be relied on to stop a vehicle. It’s a 70mm steel tube barrier that marks out and guards the end of a racking run. For a taller guard around plant or doorways, see our hooped perimeter barrier, and base your choice on a site risk assessment and HSE workplace transport guidance.
Can I fit a barrier at the end of every racking run?
Yes. Each barrier is 1065mm wide and bolts down on its own, so one can be fitted at each exposed end along an aisle. Where racking, machinery or walls have an exposed corner, a corner safety barrier guards the corner.
What warranty does the rack end barrier have?
The rack end barrier is backed by a one-year warranty. Contact our team if you have a question about cover or need help with a claim.
