Trolley Cart - 3 Shelves - 500kg Maximum Load
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
500kg Maximum Load - 3 Shelves - 40mm Plywood Deck - Looped Push Handle - Foot-Operated Brake - Free Next Day Delivery
- 3 Shelves: Separate levels keep tools, boxes and supplies organised on the move.
- 500kg Maximum Load: Steel-framed base moves heavy stock, materials and equipment.
- 40mm Plywood Deck: Thick plywood on a steel frame supports heavy, bulky items.
- 50mm Top Shelf: Thick top shelf gives a sturdy surface for tools and supplies.
- Looped Push Handle: Large 600mm wide looped handle gives a firm, comfortable grip.
- Swivel and Braked Castors: Swivel castors steer easily and a foot brake holds it still.
- 195mm Solid Rubber Wheels: Steel-centred rubber wheels roll smoothly under heavy loads.
- Slot-Together Modular Frame: Parts fit 34mm corner sockets and swap between layouts.
- Flat-Pack Assembly: Arrives flat-packed and the parts slot together on site.
- Powder-Coated Blue Finish: Scratch- and scuff-resistant coat keeps it looking smart.
- 1055 × 690 × 1190mm: Measures 1055mm high, 690mm wide and 1190mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your cart delivered free the next working day.
3-Shelf Trolley Cart for Organised Loads
The Trolley Cart is a 500kg steel platform trolley with 3 shelves and a large looped push handle, so tools, boxes and supplies travel on separate levels instead of in one heap. It suits warehouses, workshops, offices and facilities teams moving mixed loads, and it comes with free next day delivery.
Specification
OVERALL HEIGHT- 1055mm
OVERALL DEPTH- 1190mm
OVERALL WIDTH- 690mm
BOTTOM TO MIDDLE SHELF- 335mm
- MIDDLE TO TOP SHELF
- 325mm
TOP SHELF THICKNESS- 50mm
- HANDLE WIDTH
- 600mm
- HANDLE DEPTH
- 95mm
HOLE DIAMETER- 34mm
- PLATFORM THICKNESS
- 40mm
- WHEEL DIAMETER
- 195mm
WEIGHT- 61.65kg
MAXIMUM LOAD- 500kg
WHEEL TYPE- Rubber
COLOUR- Blue
MATERIAL- Steel
WARRANTY- 1 year
COMMODITY CODE- 8716800000
- GTIN
- 0723172209643
3 Shelves for Organised Loads
With 3 shelves, users can sort tools, boxes and supplies by level rather than stacking them. There’s 335mm from the bottom to the middle shelf and 325mm from the middle to the top shelf, and the 50mm top shelf gives a sturdy surface for items in regular use. It suits stores, workshops and offices moving mixed loads.
500kg Maximum Load
The steel-framed base carries up to 500kg, so one trolley can move heavy stock, materials or equipment in a single trip. Every trolley built on this base shares the same 500kg maximum load, whichever handles, sides or shelves are fitted.
40mm Plywood Deck
A 40mm plywood deck sits in the steel frame at the bottom of the trolley, giving a firm, flat base for the heaviest items. The thick deck spreads weight across the frame, helping keep loads steady as the trolley moves around the warehouse or site.

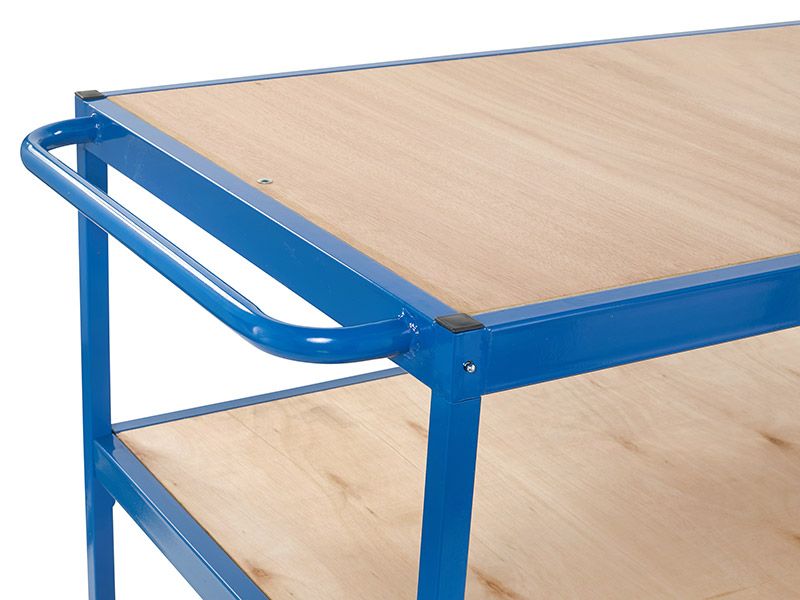

Large Looped Push Handle
The 600mm wide looped handle gives users a firm, comfortable grip for pushing, pulling and steering with one or both hands, even with every shelf loaded. It helps reduce strain when moving heavy loads through aisles, doorways and around obstacles.

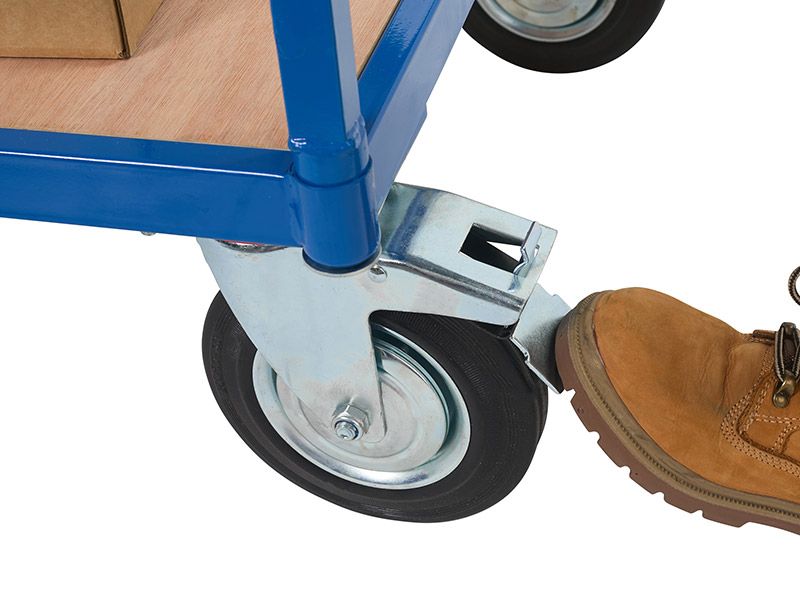

Foot-Operated Brakes
The swivel castors steer the trolley through tight spaces and corners, and a foot-operated brake holds it in place while it’s loaded or unloaded. Users can apply the brake without bending down, which helps keep loading bays and work areas safe.
195mm Solid Rubber Wheels
The 195mm solid rubber wheels have steel centres for strength under heavy loads and roll smoothly across warehouse, workshop and office floors. The trolley is robust enough to use outdoors, though it’s best stored indoors when not in use.
Slot-Together Modular Frame
The trolley arrives flat-packed and slots together. Its handle and shelf frame fit into 34mm sockets at the corners of the steel base, the same base used across our platform trolley range, so parts come apart and can be swapped to change the layout as your work changes.
Why Choose This Trolley Cart?
- 3 Shelves – Keeps tools, boxes and supplies organised on separate levels.
- 500kg Maximum Load – Moves heavy stock and materials in one trip.
- 40mm Plywood Deck – A thick deck on a steel frame supports bulky loads.
- Looped Push Handle – A large handle gives a firm, comfortable grip.
- Foot-Operated Brake – Holds the trolley still while it’s loaded and unloaded.
- 195mm Solid Rubber Wheels – Steel-centred wheels roll smoothly under load.
- Modular Design – Parts slot together and swap between layouts.
- 1 Year Warranty – Backed by a one-year warranty.
Frequently Asked Questions
How much weight can the Trolley Cart carry?
It carries up to 500kg. That is the maximum load for the steel-framed base, which every trolley in the range shares, so the figure stays the same whichever handles, sides or shelves are fitted. Keep the heaviest items on the bottom deck and check loads against this figure and your own risk assessment before moving them.
Does the trolley arrive assembled?
No, it arrives flat-packed for easy assembly. The handle and shelf frame slot into 34mm sockets at the corners of the steel base, and the parts fit together from there. If you don’t need shelves or a handle, the platform dolly cart is the same base on its own.
Can I use the trolley outdoors?
Yes, it’s robust enough to use outdoors, for example to move loads between buildings. We recommend storing it indoors when it’s not in use to keep the plywood deck and powder-coated finish in good condition.
Which castors steer and which have brakes?
The swivel castors steer the trolley, and they have a foot-operated brake so you can hold the trolley still while loading and unloading. All the wheels are 195mm solid rubber with steel centres.
Can I change the layout or swap parts later?
Yes, the range is modular. Handles, sides and shelves slot into the corner sockets of the same steel base, so parts come apart and can be swapped between layouts. If you only need one shelf above the deck, see the two shelf trolley.
Will the trolley fit through my doorways?
The trolley is 690mm wide, 1190mm long and 1055mm high overall, and weighs 61.65kg. Measure your doorways, lifts and aisles against these figures before ordering so it moves freely around your site.
How much space is there between the shelves?
There’s 335mm from the bottom to the middle shelf and 325mm from the middle to the top shelf. Check the height of your boxes or equipment against these figures. If you need more levels, see our shelf trolley.
What warranty does the trolley come with?
The Trolley Cart is backed by a one-year warranty. If you have a problem with it in that time, contact our customer service team with your order details.
Customer Reviews
How do you rate this product? Guidance:
- Please focus on the item itself. Your review will be most helpful if you include the specific reasons why you either liked or disliked the item.
- Try to be concise and straight to the point - but avoid single-word reviews.
Trolley Cart Delivered Fast
Order before 4pm and get your trolley cart the next working day. With 3 shelves, a 500kg maximum load and a 40mm plywood deck, it’s a practical choice for warehouses, workshops, offices and facilities teams moving mixed loads.
