Mobile Shelf Trolley - 4 Shelves - 500kg Maximum Load

£399.99 Ex. VAT £479.99 Inc. VAT
£479.99 Inc. VAT £399.99 Ex. VAT

FREE DELIVERY

20+ units gets 3% off
10+ units gets 2% off
5+ units gets 1% off
SKU CODE: TROLLEY-17
In Stock (67 units)

Free Delivery - Next Working Day

Klarna available at checkout

500kg Maximum Load - 4 Shelves - 345mm Shelf Spacing - 40mm Plywood Deck - Foot-Operated Brake - Free Next Day Delivery

  • 4 Shelves: Four levels keep boxes, tools and stock organised on the move.
  • 500kg Maximum Load: Steel-framed base moves heavy stock, materials and equipment.
  • 345mm Shelf Spacing: Shelves spaced 345mm apart leave room for boxes and bulky items.
  • 40mm Plywood Deck: Thick plywood on a steel frame supports heavy, bulky items.
  • Rounded Push Handle: 690mm-wide handle gives a comfortable grip for steering.
  • Swivel and Braked Castors: Swivel castors steer easily and a foot brake holds it still.
  • 195mm Solid Rubber Wheels: Steel-centred wheels give a smooth, quiet ride under load.
  • Slot-Together Modular Frame: Parts fit 34mm corner sockets and swap between layouts.
  • Flat-Pack Assembly: Arrives flat-packed and the parts slot together on site.
  • Powder-Coated Blue Finish: Tough coat resists rust and impact damage.
  • 1775 × 690 × 1190mm: Measures 1775mm high, 690mm wide and 1190mm deep.
  • 1 Year Warranty: Backed by a one-year warranty.
  • Free Next Day Delivery: Get your trolley delivered free the next working day.

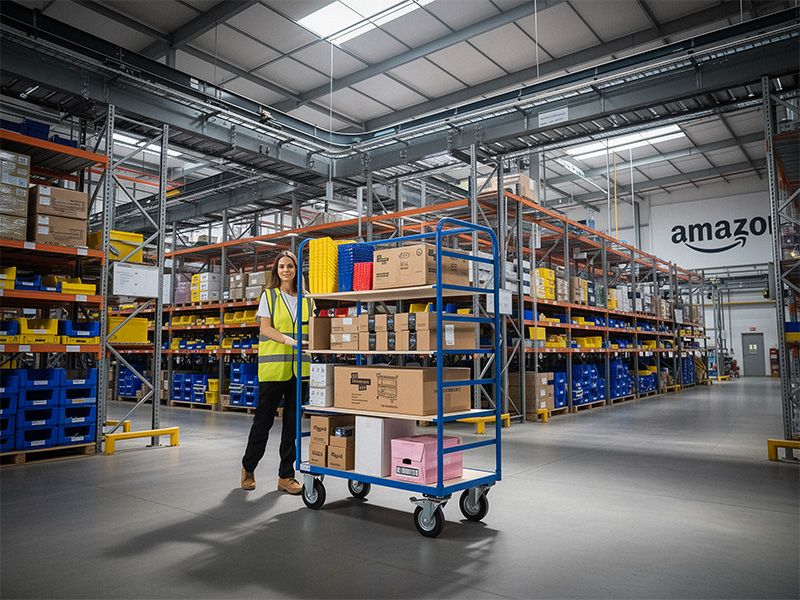

Warehouse worker in a hi-vis vest standing beside a loaded Mobile Shelf Trolley in a large distribution centre

Four-Shelf Mobile Trolley for Stock and Tools

The Mobile Shelf Trolley is a 500kg steel trolley with four shelves spaced 345mm apart and a rounded push handle, so boxes, tools and stock can be organised and moved in one trip. It suits warehouses, factories, retail stockrooms and facilities teams, and it comes with free next day delivery.

Mobile Shelf Trolley dimensions

Specification

OVERALL HEIGHT
1775mm
OVERALL DEPTH
1190mm
OVERALL WIDTH
690mm
PLATFORM THICKNESS
40mm
SHELF DISTANCE
345mm
SHELF THICKNESS
20mm
HANDLE WIDTH
690mm
HANDLE DEPTH
115mm
WHEEL DIAMETER
195mm
HOLE DIAMETER
34mm
WEIGHT
65.55kg
MAXIMUM LOAD
500kg
COLOUR
Blue
MATERIAL
Steel
WHEEL TYPE
Solid Rubber
WARRANTY
1 year
COMMODITY CODE
8716800000
GTIN
0723172209667

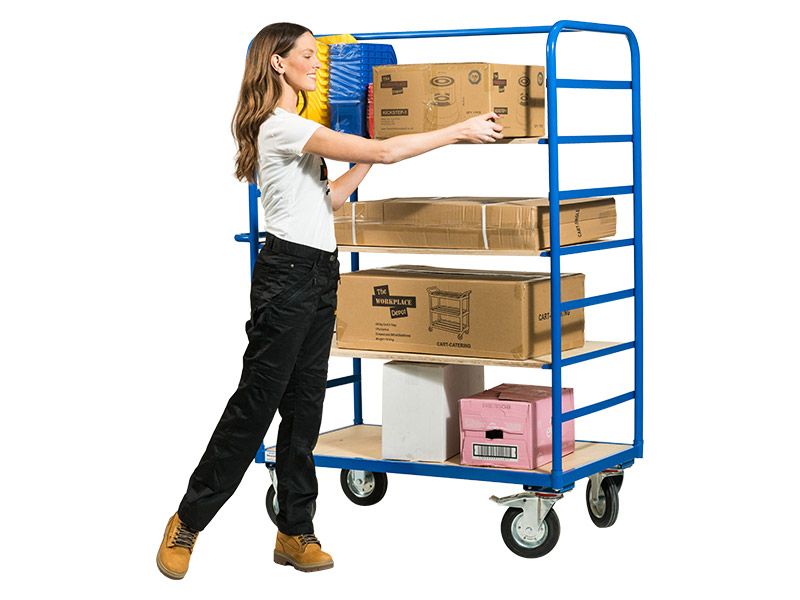

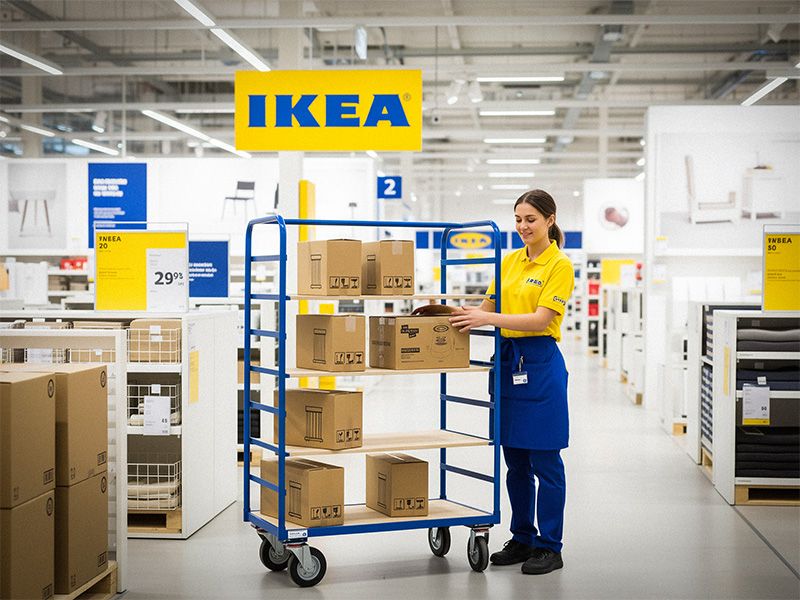

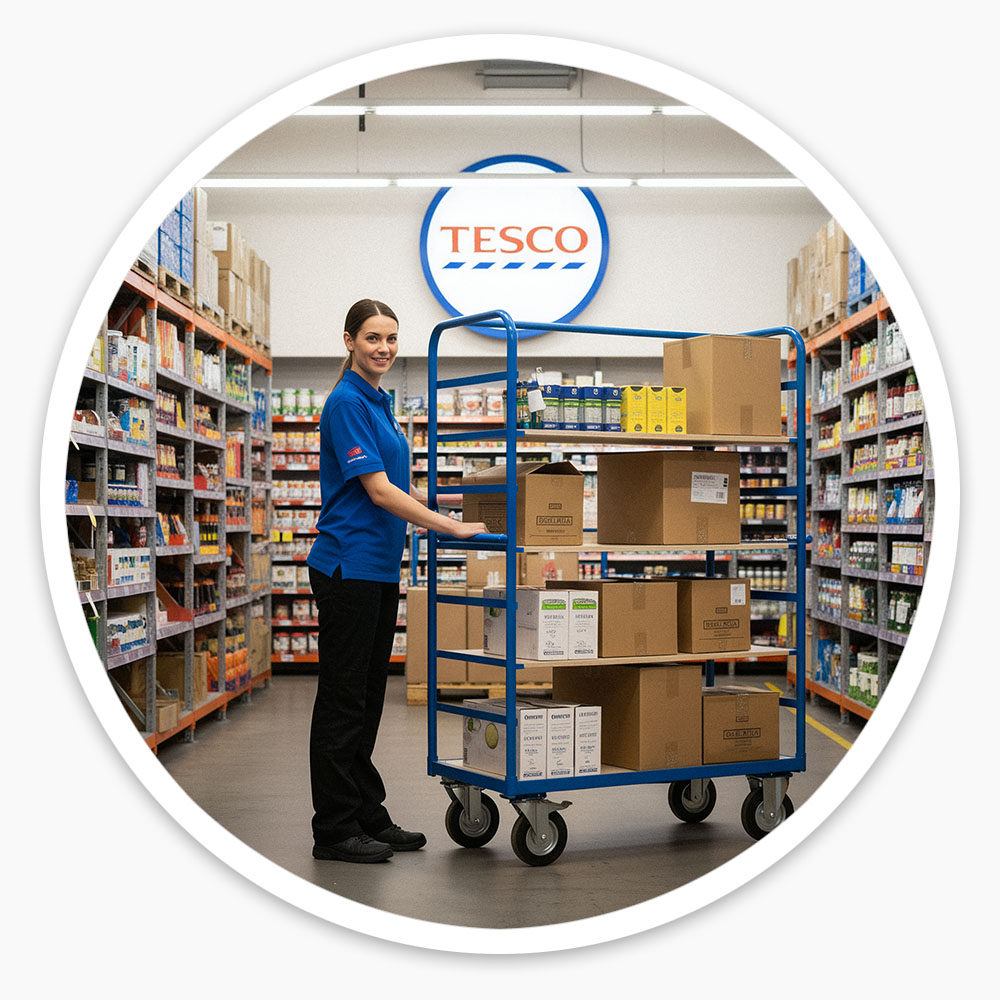

Store worker sorting boxes on the four shelves of a Mobile Shelf Trolley in a retail store

Four Shelves Spaced 345mm Apart

Four shelves spaced 345mm apart keep boxes, tools, parts and stock organised on separate levels, so one trolley can save several trips. It’s a practical choice for warehouses, factories and retail stockrooms picking orders, restocking shelves or moving supplies between areas.

500kg Maximum Load

The steel-framed base carries up to 500kg, so one trolley can move heavy stock, tools or equipment across the warehouse in a single trip. Every trolley built on this base shares the same 500kg maximum load, whichever handles, sides or shelves are fitted.

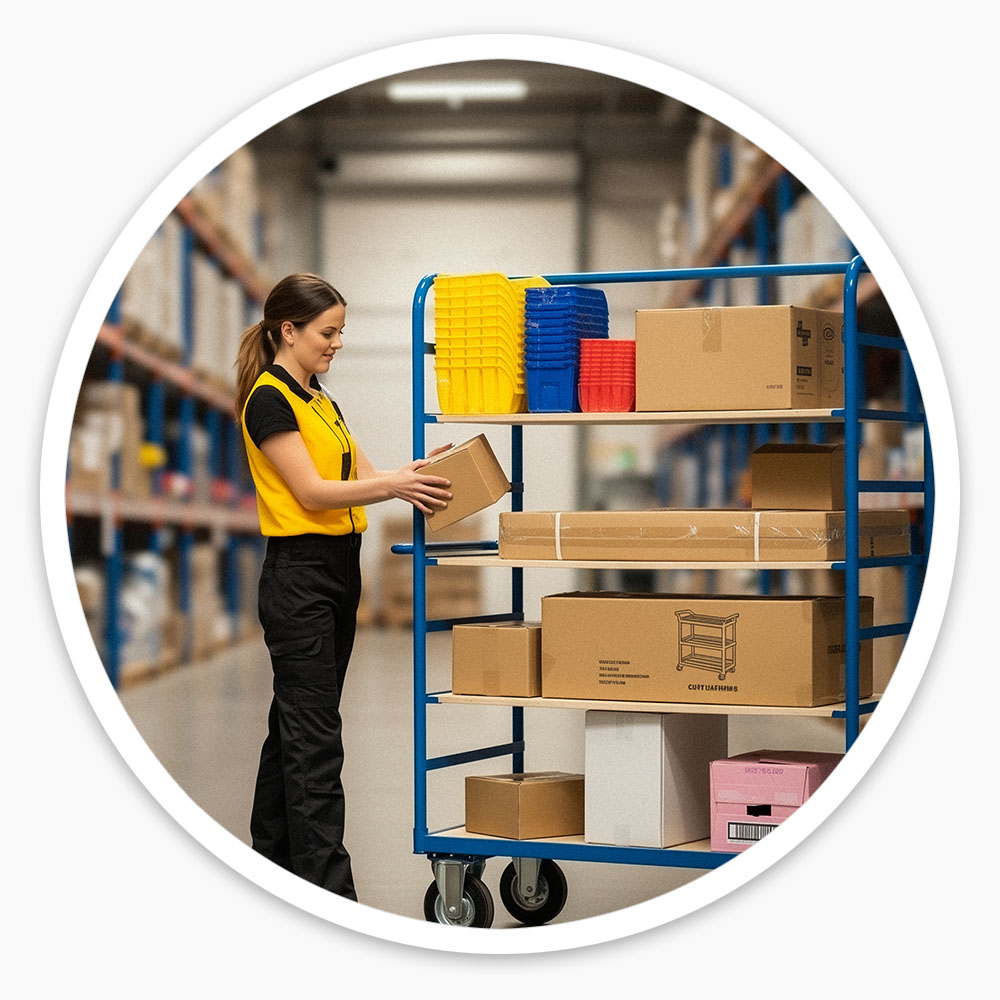

Warehouse worker loading boxes and bins onto a Mobile Shelf Trolley between racking aisles

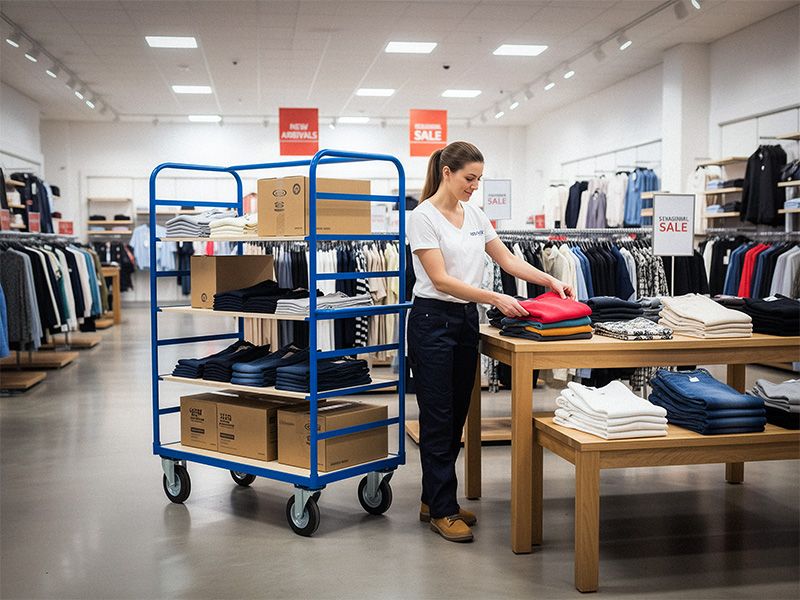

Mobile Shelf Trolley in a clothing shop with heavy boxes on the plywood deck and lighter garments on the shelves above

40mm Plywood Deck

A 40mm plywood deck sits in the steel frame at the bottom of the trolley, giving a firm, flat surface for the heaviest items. Keeping heavy loads low on the deck and lighter items on the shelves above helps the trolley stay steady as it moves.

Rounded Push Handle

The 690mm-wide rounded push handle gives users a comfortable grip and steady control when steering with heavy or bulky items on board. It helps reduce strain on hands and wrists when manoeuvring through aisles, around corners and into tight spaces.

Close-up of the rounded blue steel push handle on the Mobile Shelf Trolley frame

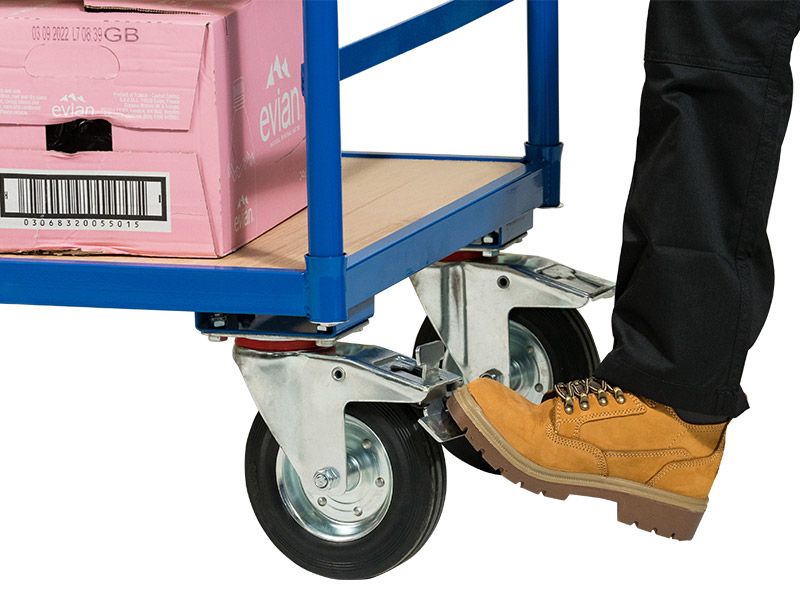

Close-up of a Mobile Shelf Trolley swivel castor with its foot-operated brake pedal

Foot-Operated Brakes

The swivel castors at the handle end steer the trolley through tight spaces, while the two fixed castors keep it tracking straight. A foot-operated brake holds it in place while it’s loaded or unloaded, and users can apply it without bending down.

195mm Solid Rubber Wheels

The 195mm solid rubber wheels have steel centres for strength under heavy loads and give a smooth, quiet ride across warehouse, factory and shop floors. The trolley is robust enough to use outdoors and its powder-coated finish resists rust and impact damage, though it’s best stored indoors.

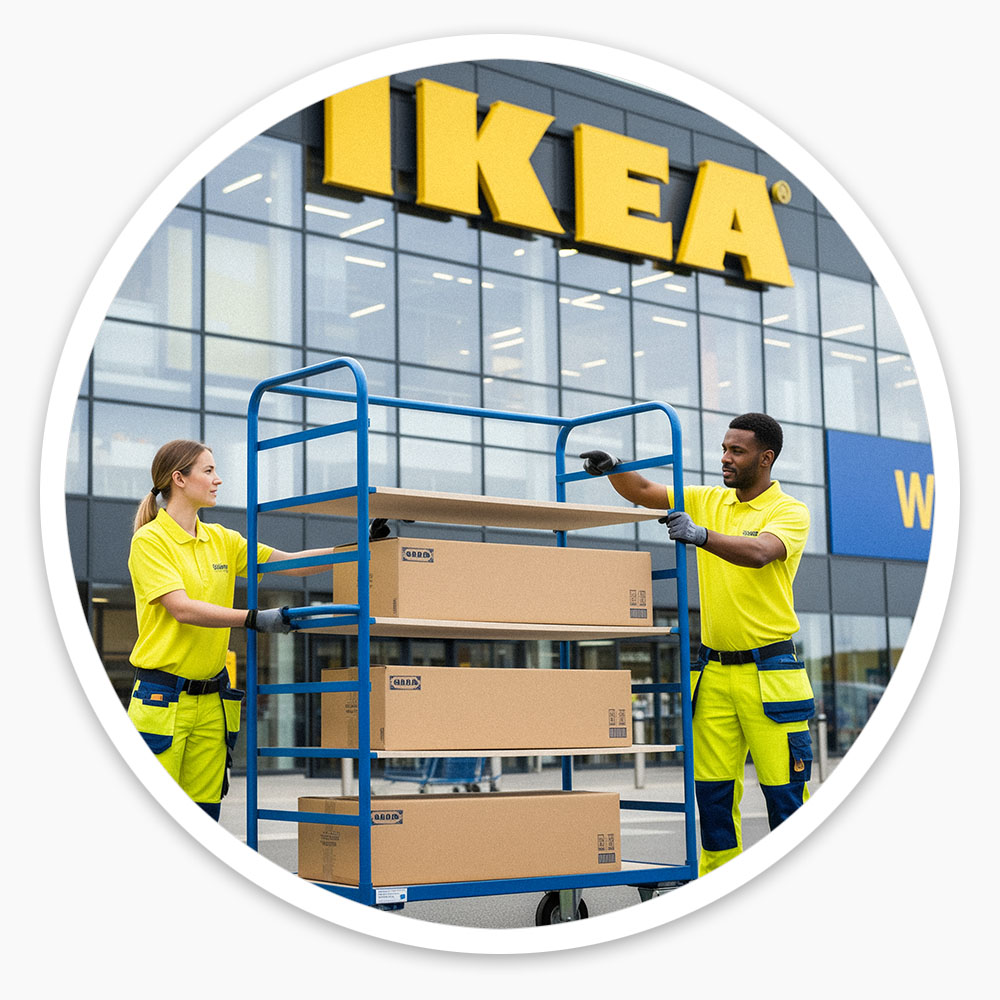

Two workers loading flat-pack boxes onto a Mobile Shelf Trolley outside a store

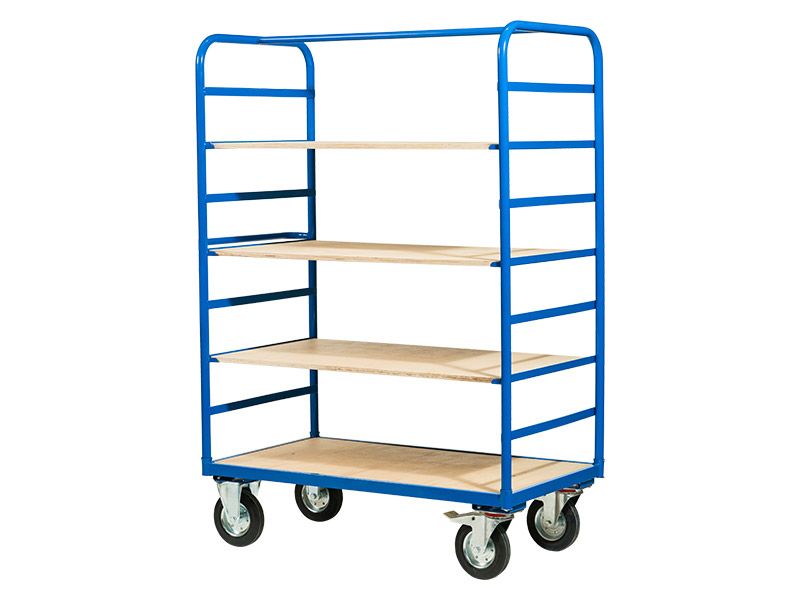

Mobile Shelf Trolley with blue tubular steel frame, four plywood shelves and swivel castors, seen from the end on white

Slot-Together Modular Frame

The trolley arrives flat-packed and slots together. Its parts fit into 34mm sockets at the corners of the steel frame, the same base used across our platform trolley range, so parts come apart and can be swapped to change the layout as your work changes.

Why Choose This Mobile Shelf Trolley?

  • 4 Shelves – Keeps boxes, tools and stock organised on separate levels.
  • 500kg Maximum Load – Moves heavy stock and equipment in one trip.
  • 345mm Shelf Spacing – Leaves room for boxes and bulky items on each level.
  • 40mm Plywood Deck – A thick deck on a steel frame supports heavy loads.
  • Rounded Push Handle – Gives a comfortable grip and steady control.
  • Foot-Operated Brake – Holds the trolley still while it’s loaded and unloaded.
  • Modular Design – Parts slot together and swap between layouts.
  • 1 Year Warranty – Backed by a one-year warranty.

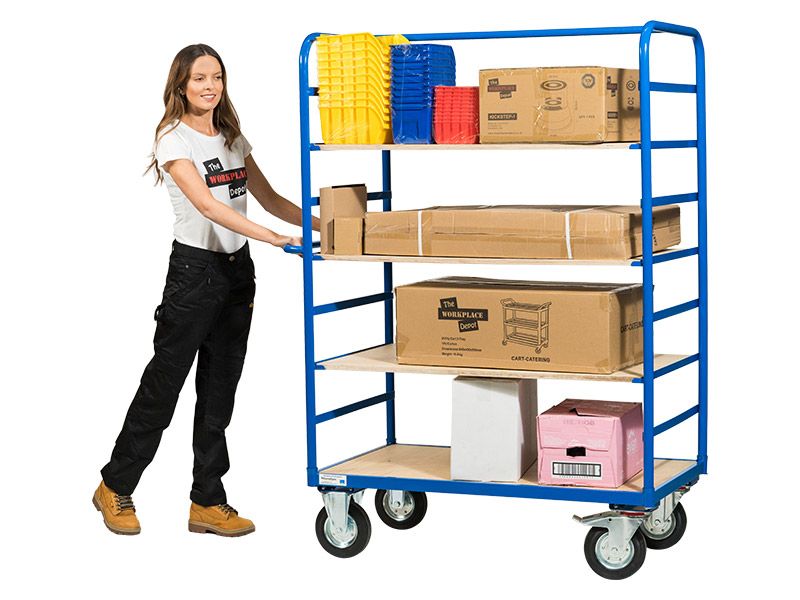

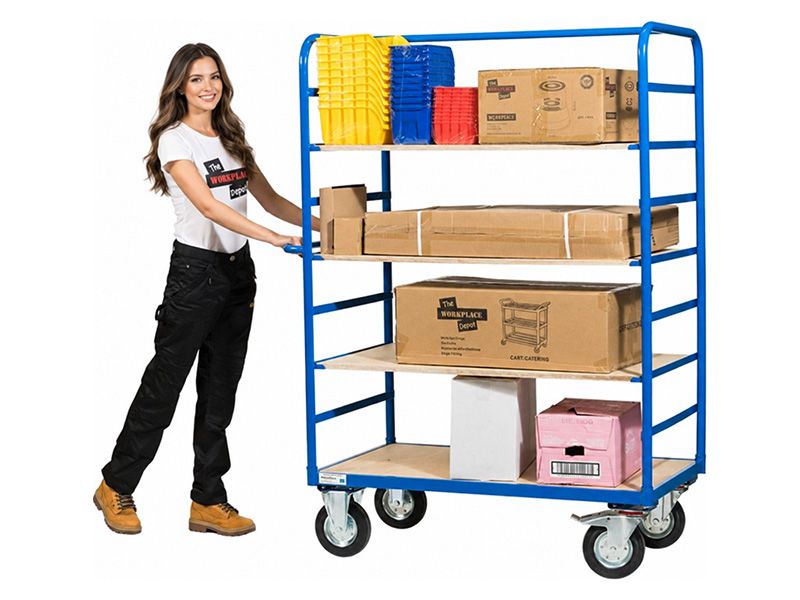

Woman pushing a loaded Mobile Shelf Trolley with four shelves of boxes and bins, on a white background

Frequently Asked Questions

  • How much weight can the Mobile Shelf Trolley carry?

    It carries up to 500kg. That is the maximum load for the steel-framed base, which every trolley in the range shares, from the flatbed trolley to this four-shelf layout. Check heavy loads against this figure and your own risk assessment before moving them.

  • Does the trolley arrive assembled?

    No, it arrives flat-packed for easy assembly. The parts slot into 34mm sockets at the corners of the steel frame and fit together from there. If you don’t need shelves or a handle at all, the platform dolly cart is the same base on its own.

  • Can I use the trolley outdoors?

    Yes, it’s robust enough to use outdoors, for example to move stock between buildings. We recommend storing it indoors when it’s not in use to keep the plywood deck and powder-coated finish in good condition.

  • Which castors steer and which have brakes?

    The two swivel castors at the handle end steer the trolley, and they have a foot-operated brake so you can hold it still while loading and unloading. The two fixed castors keep it tracking straight. All the wheels are 195mm solid rubber with steel centres.

  • Can I change the layout or swap parts later?

    Yes, the range is modular. Handles, sides and shelves slot into the corner sockets of the same steel base, so parts come apart and can be swapped between layouts. If you need fewer levels, see the two shelf trolley.

  • Will the trolley fit through my doorways?

    The trolley is 690mm wide, 1190mm long and 1775mm high overall, and weighs 65.55kg. Measure your doorways, lifts and aisles against these figures before ordering, and check the 1775mm height against door frames and low ceilings, so it moves freely around your site.

  • How much space is there between the shelves?

    The shelves are spaced 345mm apart and each shelf is 20mm thick, so check your tallest boxes or items against that spacing before loading. Keep heavier items low on the 40mm plywood deck and lighter ones on the shelves above to help the trolley stay steady.

  • What warranty does the trolley come with?

    The Mobile Shelf Trolley is backed by a one-year warranty. If you have a problem with it in that time, contact our customer service team with your order details.
