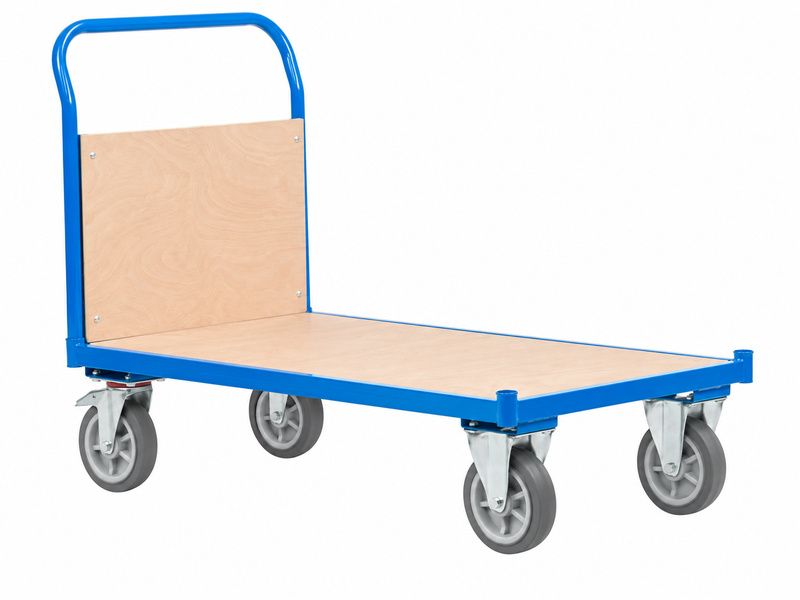

Flatbed Trolley - Push Handle - 500kg Maximum Load
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
500kg Maximum Load - Push Handle - 40mm Plywood Deck - Foot-Operated Brake - Free Next Day Delivery
- Ergonomic Push Handle: Handle rises 695mm above the deck for comfortable pushing.
- 500kg Maximum Load: Steel-framed base moves heavy stock, materials and equipment.
- 40mm Plywood Deck: Thick plywood on a steel frame supports heavy, bulky items.
- Swivel and Braked Castors: Swivel castors steer easily and a foot brake holds it still.
- 195mm Solid Rubber Wheels: Steel-centred rubber wheels roll smoothly under heavy loads.
- Rust-Resistant Powder Coat: Blue powder-coated finish resists rust and abrasion.
- Slot-Together Modular Frame: Handle fits 34mm corner sockets for different layouts.
- Flat-Pack Assembly: Arrives flat-packed and the parts slot together on site.
- Easy to Clean: Smooth powder-coated surfaces wipe clean quickly.
- 990 × 690 × 1190mm: Measures 990mm high, 690mm wide and 1190mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your trolley delivered free the next working day.

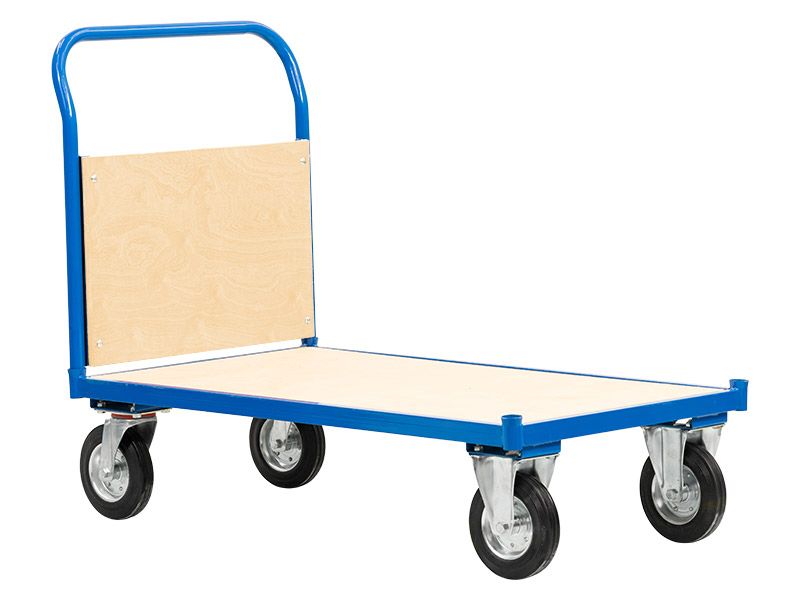

Flatbed Trolley With a Push Handle for Heavy Loads
The Flatbed Trolley is a 500kg steel platform trolley with a push handle at one end, rising 695mm above its 40mm plywood deck for comfortable steering. It suits warehouses, factories, workshops and facilities teams moving heavy stock, machinery or bulky goods, and it comes with free next day delivery.

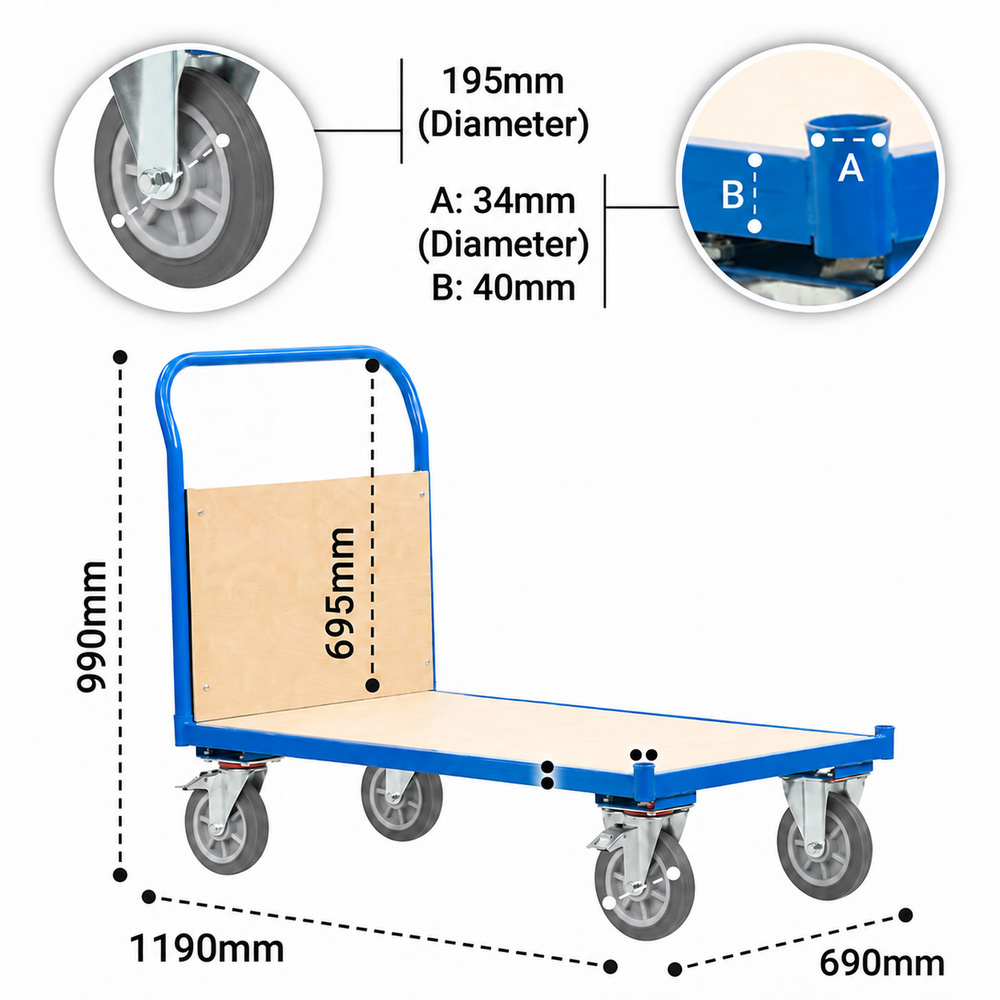

Specification
OVERALL HEIGHT- 990mm
OVERALL DEPTH- 1190mm
OVERALL WIDTH- 690mm
- PLATFORM TO TOP OF HANDLE
- 695mm
PLATFORM THICKNESS- 40mm
WHEEL DIAMETER- 195mm
- HOLE DIAMETER
- 34mm
WEIGHT- 31.6kg
MAXIMUM LOAD- 500kg
COLOUR- Blue
MATERIAL- Steel
WHEEL TYPE- Solid Rubber
WARRANTY- 1 year
COMMODITY CODE- 8716800000
- GTIN
- 0723172209599

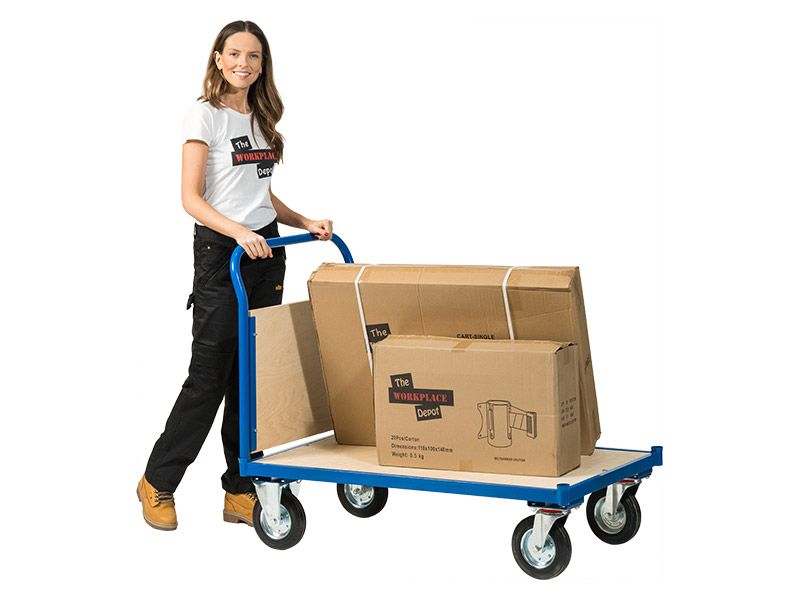

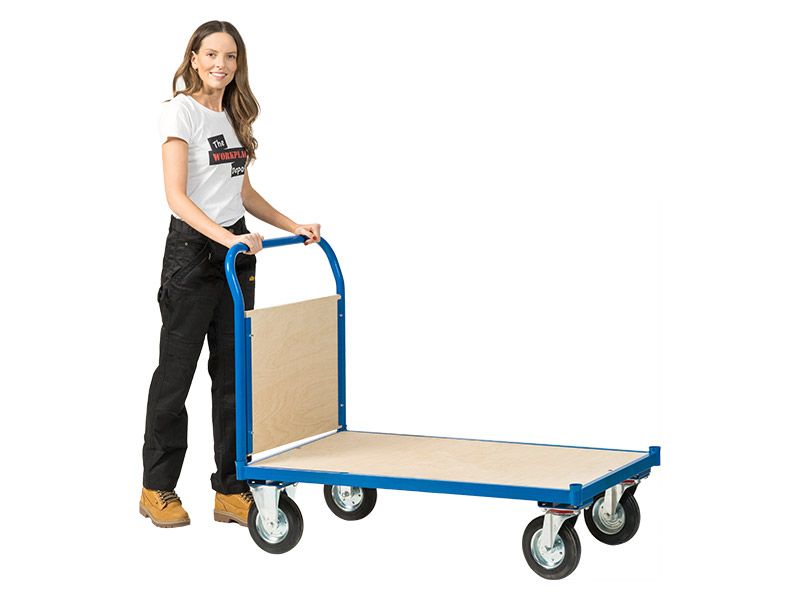

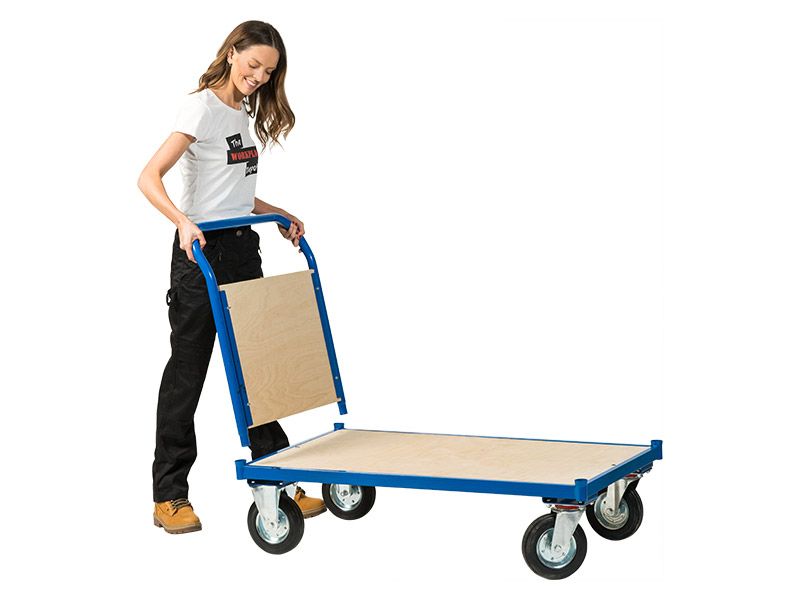

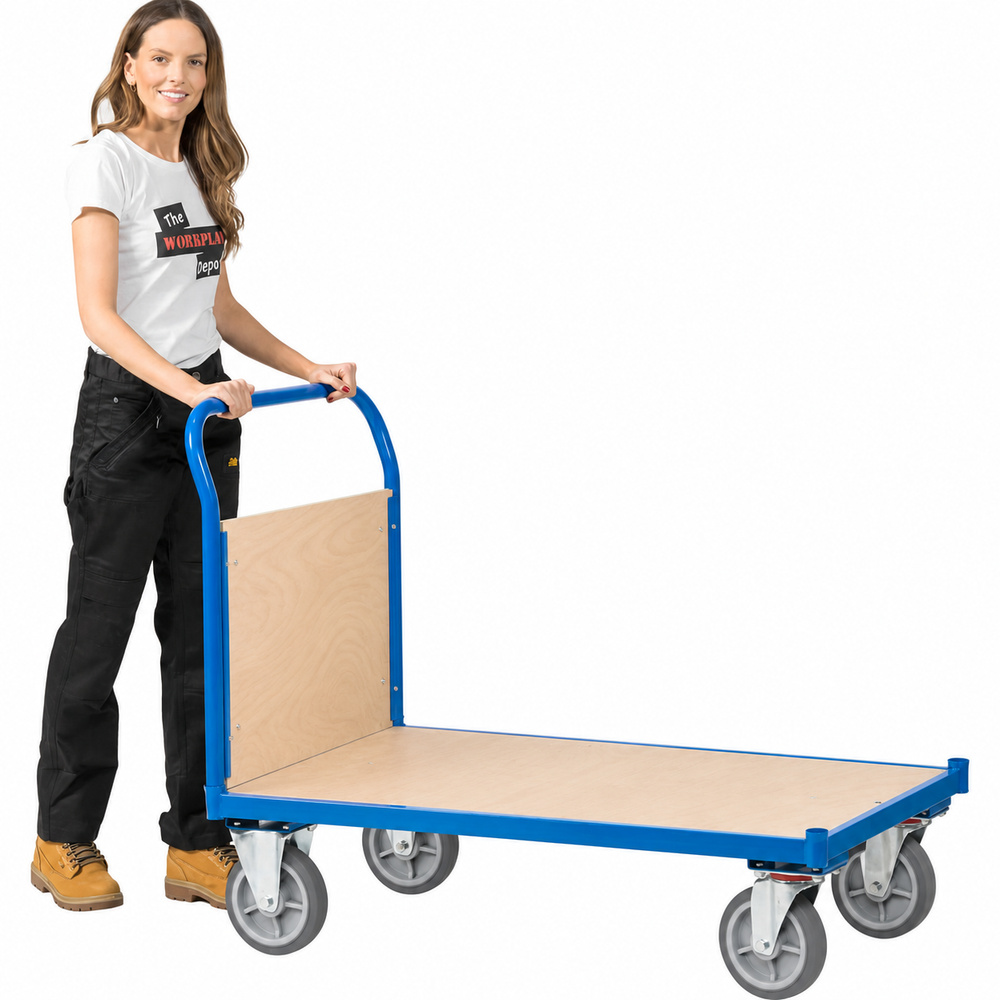

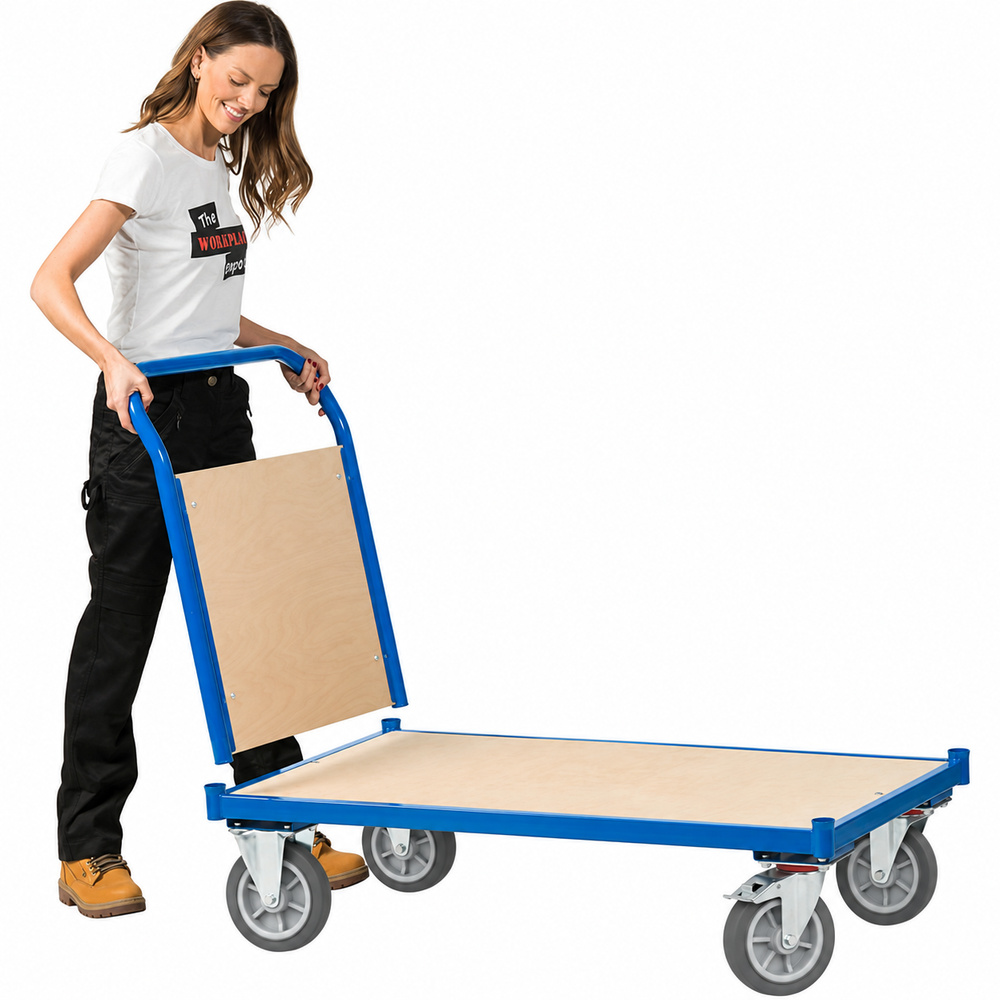

Ergonomic Push Handle
The push handle stands 695mm above the deck, so users can push, pull and steer a full load at a comfortable height without stooping. The handle end is fitted with a wooden support, and with the handle at one end only, the rest of the deck stays clear for loading goods.
500kg Maximum Load
The steel-framed base carries up to 500kg, so one trolley can move heavy stock, building materials or equipment in a single trip. Every trolley built on this base shares the same 500kg maximum load, whichever handles or sides are fitted.
40mm Plywood Deck
A 40mm plywood deck sits in the steel frame, giving a firm, flat surface for heavy and bulky loads. The thick deck spreads weight across the frame, helping keep loads steady as the trolley moves around the warehouse or factory.

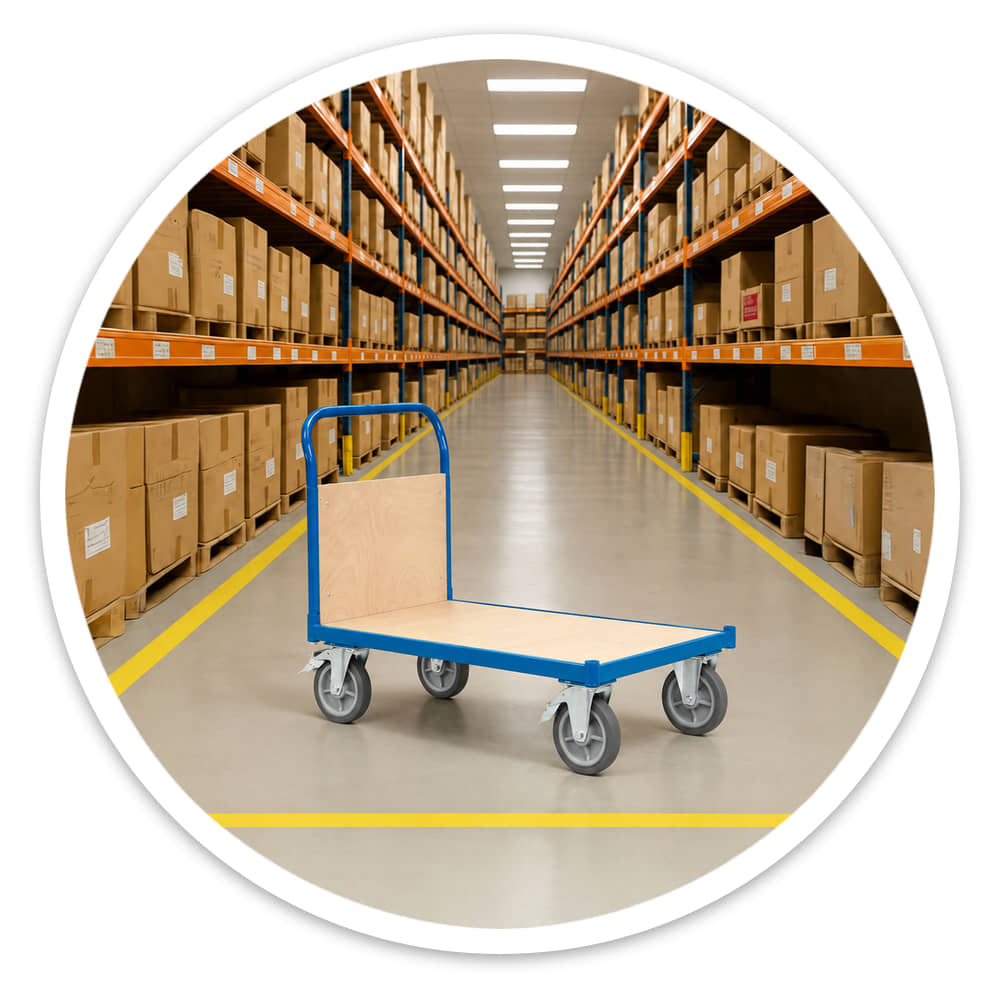

Rust-Resistant Powder Coat
A blue powder-coated finish protects the steel from rust and abrasion, so the trolley keeps its appearance and works reliably in busy warehouses and factories. The smooth coating wipes clean easily, keeping upkeep quick for teams that use the trolley every day.

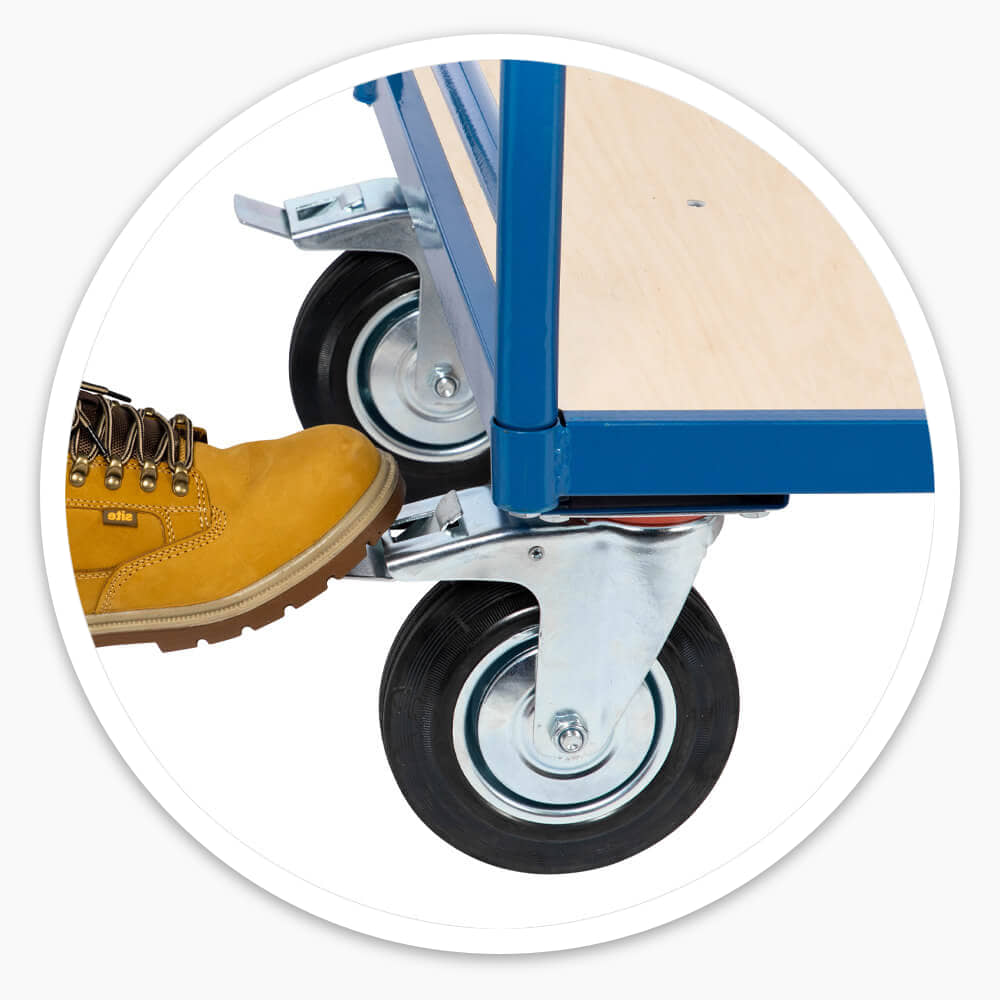

Foot-Operated Brakes
The swivel castors steer the trolley through tight spaces and corners, and a foot-operated brake holds it in place while it’s loaded or unloaded. Users can apply the brake without bending down, which helps keep loading bays and work areas safe.

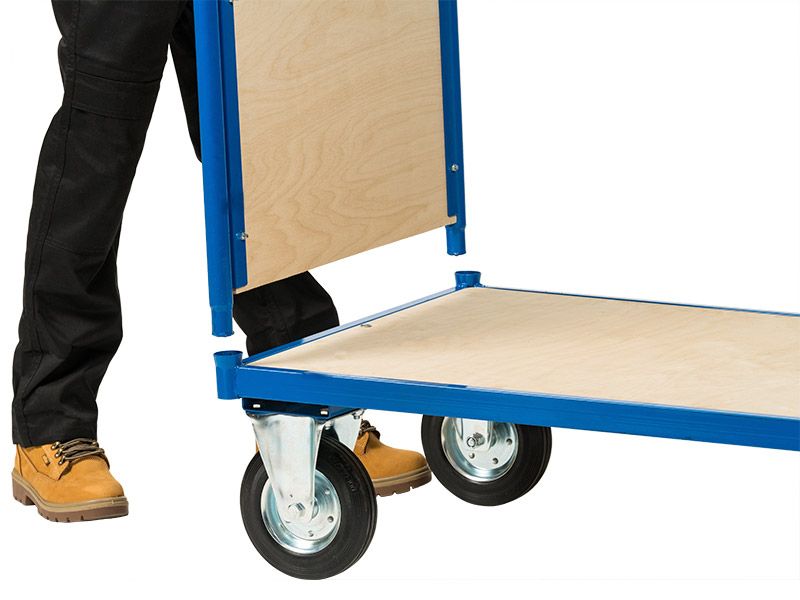

Slot-Together Modular Frame
The trolley arrives flat-packed and slots together. Its push handle fits into 34mm sockets at the corners of the steel frame, the same base used across our platform trolley range, so parts come apart and can be swapped to change the layout as your work changes.

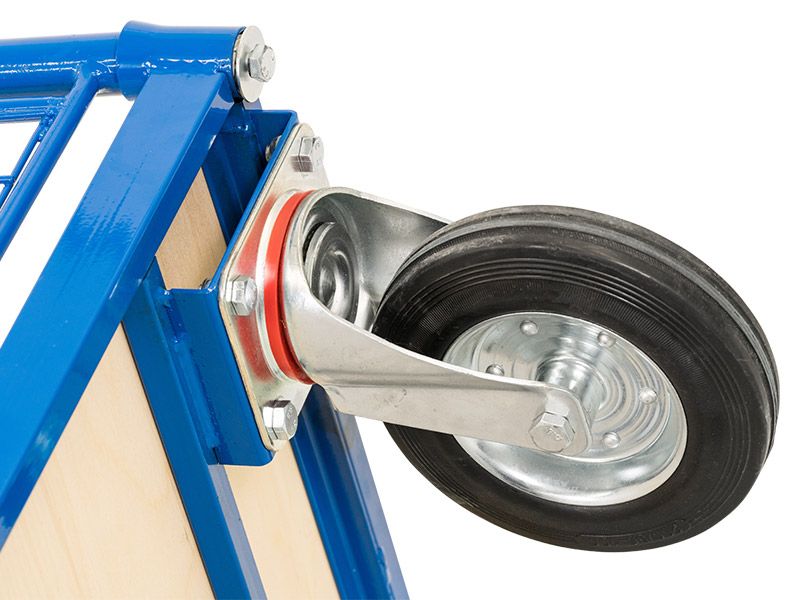

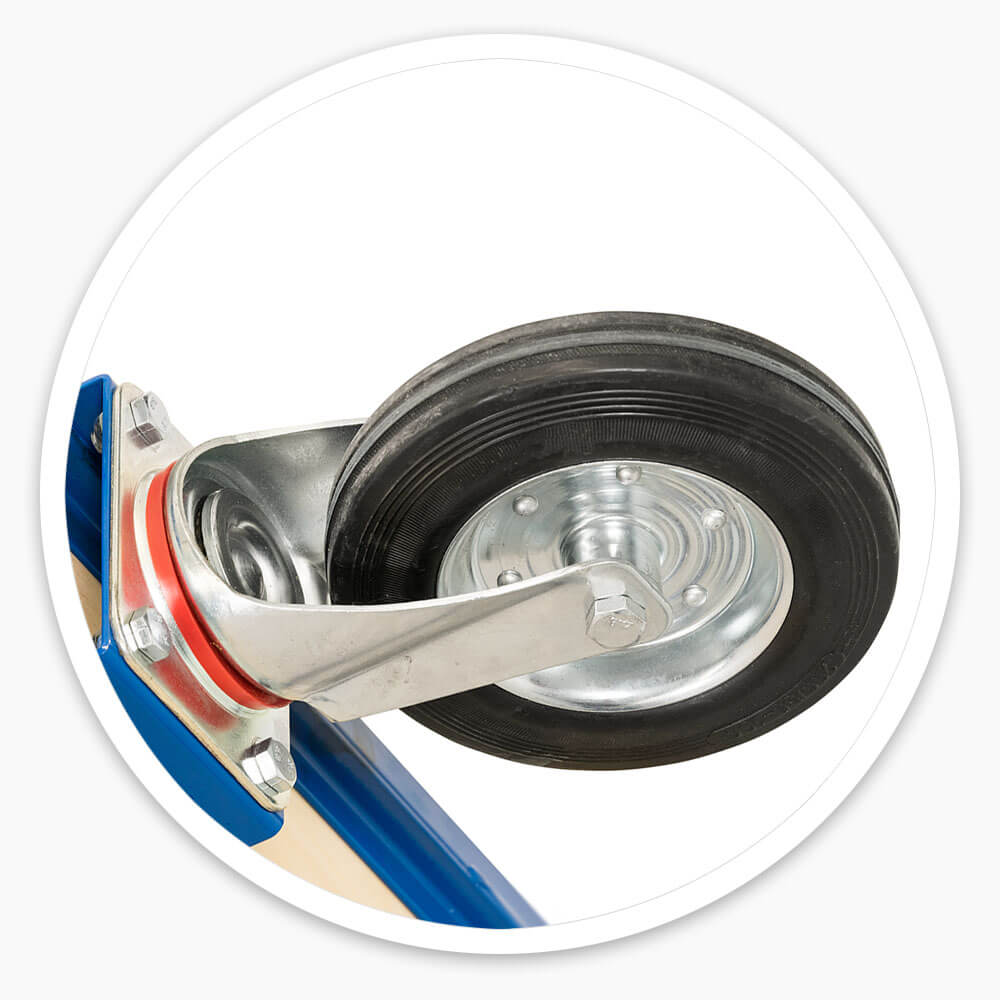

195mm Solid Rubber Wheels
The 195mm solid rubber wheels have steel centres for strength under heavy loads and roll smoothly across warehouse, workshop and factory floors. The trolley is robust enough to use outdoors, though it’s best stored indoors when not in use.
Why Choose This Flatbed Trolley?
- Push Handle – Sits 695mm above the deck for comfortable steering.
- 500kg Maximum Load – Moves heavy stock and materials in one trip.
- 40mm Plywood Deck – A thick deck on a steel frame supports bulky loads.
- Foot-Operated Brake – Holds the trolley still while it’s loaded and unloaded.
- 195mm Solid Rubber Wheels – Steel-centred wheels roll smoothly under load.
- Rust-Resistant Finish – Powder coat resists rust and abrasion and wipes clean.
- Modular Design – Parts slot together and swap between layouts.
- 1 Year Warranty – Backed by a one-year warranty.
Frequently Asked Questions
How much weight can the Flatbed Trolley carry?
It carries up to 500kg. That is the maximum load for the steel-framed base, which every trolley in the range shares, so the figure stays the same whichever handles or sides are fitted. Check heavy loads against this figure and your own risk assessment before moving them.
Does the trolley arrive assembled?
No, it arrives flat-packed for easy assembly. The push handle slots into 34mm sockets at the corners of the steel frame, and the parts fit together from there. If you don’t need a handle at all, the platform dolly cart is the same base on its own.
Can I use the trolley outdoors?
Yes, it’s robust enough to use outdoors, for example to move loads between buildings. We recommend storing it indoors when it’s not in use to keep the plywood deck and powder-coated finish in good condition.
Which castors steer and which have brakes?
The swivel castors steer the trolley, and they have a foot-operated brake so you can hold the trolley still while loading and unloading. All the wheels are 195mm solid rubber with steel centres.
Can I add sides or swap the handle later?
Yes, the range is modular. Handles, sides and shelves slot into the corner sockets of the same steel base, so parts come apart and can be swapped between layouts. If you need sides to hold loose items, see the flatbed trolley with sides.
Will the trolley fit through my doorways?
The trolley is 690mm wide, 1190mm long and 990mm high overall, and weighs 31.6kg. Measure your doorways, lifts and aisles against these figures before ordering so it moves freely around your site.
Is it suitable for carrying sheet materials?
It can carry boards and panels laid flat on the 40mm plywood deck, which measures 1190mm long and 690mm wide including the steel frame. If you’d rather carry sheets upright, the sheet material trolley has upright support bars.
What warranty does the trolley come with?
The Flatbed Trolley is backed by a one-year warranty. If you have a problem with it in that time, contact our customer service team with your order details.
Customer Reviews
How do you rate this product? Guidance:
- Please focus on the item itself. Your review will be most helpful if you include the specific reasons why you either liked or disliked the item.
- Try to be concise and straight to the point - but avoid single-word reviews.
Flatbed Trolley Delivered Fast
Order before 4pm and get your flatbed trolley the next working day. With a 500kg maximum load, a 40mm plywood deck and a push handle 695mm above the deck, it’s a practical choice for warehouses, factories and facilities teams moving heavy stock and bulky goods.
