Single Cylinder Trolley With Support Wheel - 100kg Max Load

£109.99 Ex. VAT £131.99 Inc. VAT
£131.99 Inc. VAT £109.99 Ex. VAT

FREE DELIVERY

20+ units gets 3% off
10+ units gets 2% off
5+ units gets 1% off
SKU CODE: GASTRUCK-SUPPORT
In Stock (66 units)

Free Delivery - Next Working Day

Klarna available at checkout

100kg Maximum Load - 120mm Support Wheel - 610mm Retaining Chain - 250mm Solid Rubber Wheels - Free Next Day Delivery

  • 100kg Maximum Load: Carries one gas cylinder and its contents up to 100kg.
  • 250mm Solid Rubber Wheels: Large wheels roll steadily over rough and uneven ground.
  • 120mm Support Wheel: Third wheel lowers for extra support and stability.
  • 610mm Retaining Chain: Adjustable chain holds the cylinder firmly during transit.
  • Powder-Coated Blue Finish: Coating helps protect the steel against corrosion and wear.
  • Free-Standing Upright: Stands securely upright when parked, keeping the cylinder steady.
  • Single Cylinder Design: Built to carry one cylinder at a time for better control.
  • Assembly Required: Supplied with a video and manual to guide you through assembly.
  • 16.1kg Steel Frame: Manageable weight for tilting, steering and repositioning.
  • 1260 × 480 × 500mm: Measures 1260mm high, 480mm wide and 500mm deep.
  • 1 Year Warranty: Backed by a one-year warranty.
  • Free Next Day Delivery: Get your trolley delivered free the next working day.
Quick Links:
Single Cylinder Transport With a Support Wheel

Single Cylinder Transport With a Support Wheel

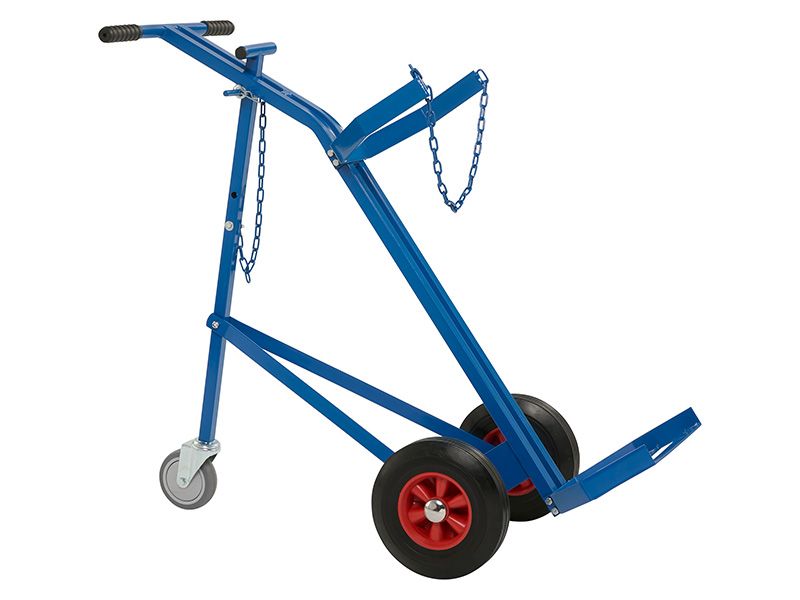

This blue steel gas cylinder trolley moves one cylinder of up to 100kg, held against the backing plate by an adjustable 610mm retaining chain. A 120mm support wheel lowers for extra stability and two 250mm solid rubber wheels roll steadily, so it suits welding and fabrication shops, site teams, labs, hospital estates and facilities teams moving gas bottles.

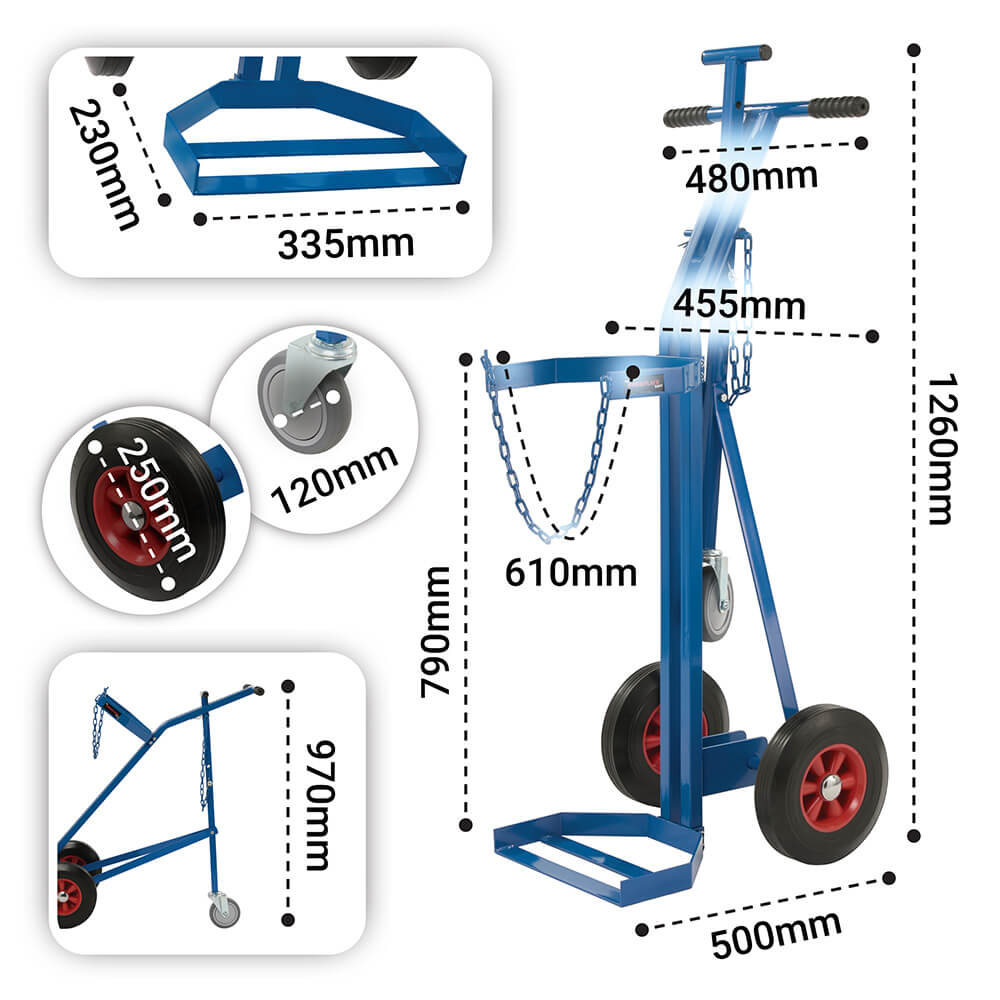

Single Cylinder Trolley With Support Wheel dimensions

Specification

WEIGHT CAPACITY
100kg
MAX CYLINDER DIAMETER
230–335mm
OVERALL HEIGHT
1260mm
HEIGHT WITH WHEEL DOWN
970mm
OVERALL WIDTH
480mm
DEPTH WHEN UPRIGHT
500mm
HEIGHT TO BACKING PLATE
790mm
BASE PLATE WIDTH
335mm
BASE PLATE DEPTH
230mm
CHAIN LENGTH
610mm
LARGE RUBBER WHEEL DIAMETER
250mm
SUPPORT CASTOR DIAMETER
120mm
WEIGHT
16.1kg
COLOUR
Blue
MATERIAL
Steel
FINISH
Powder Coated
ASSEMBLY
Required
WARRANTY
1 Year
COMMODITY CODE
8428909000
GTIN
5061036698994
Woman tilting a single cylinder trolley with support wheel, carrying a full gas cylinder on its base plate

100kg Maximum Load Capacity

The trolley carries a single gas cylinder with a combined weight of up to 100kg, covering the cylinder and its contents. The cylinder stands on a 335mm × 230mm base plate, so welding shops, labs and site teams can move a full bottle with balanced support. Check the full cylinder weight before loading.

250mm Solid Rubber Wheels

Two 250mm solid rubber wheels make the trolley easy to manoeuvre over workshop floors, site yards and tight spaces, reducing the strain on operators. Solid rubber gives consistent grip, so site teams and facilities staff can move a loaded cylinder between areas with steady, controlled movement.

Blue single cylinder trolley with support wheel, showing two solid black rubber wheels with red hubs, a safety chain and a toe plate
Close-up of the grey 120mm support wheel castor on the Single Cylinder Trolley's blue steel leg

120mm Support Wheel for Stability

A third, 120mm support wheel lowers when needed to give the trolley extra support and stability, which helps on uneven surfaces and lowers the risk of accidents in transit. With the wheel down the trolley measures 970mm high, against 1260mm without it, so operators can set it up to suit the job.

Adjustable 610mm Retaining Chain

An adjustable 610mm chain fastens the cylinder against the backing plate, 790mm from the ground, keeping it firmly anchored and limiting movement in transit. Because the trolley is built for one cylinder at a time, operators keep full control of the load, which lowers the risk of a bottle shifting or falling while it is moved.

Close-up of the blue retaining chain and cylinder support arm on the Single Cylinder Trolley
Single Cylinder Trolley With Support Wheel in blue powder-coated steel, with chains, red-hub wheels and a rear support castor

Corrosion-Resistant Powder-Coated Finish

A blue powder-coated finish protects the steel against corrosion, wear and tear, helping the trolley last in harsh environments. It keeps its appearance with daily use and needs less upkeep, so workshops, stores and plant rooms get long service from it.

Free-Standing and Compact to Store

The trolley stands securely upright when parked, keeping the cylinder steady and preventing unwanted movement. Its compact frame, 480mm wide and 500mm deep, takes up little floor space, so it suits small workshops, labs and stores where room is tight.

Front view of the Single Cylinder Trolley standing upright, showing its narrow 480mm wide frame
Blue steel toe plate and frame of the Single Cylinder Trolley With Support Wheel, with its red-hubbed support wheel above

Easy to Assemble

The trolley is supplied for assembly, with a supporting video and manual to take you through each step. Once built, the steel frame carries loads up to 100kg, so workshops, industrial units and hospital estates can put it to work moving a single gas cylinder.

Why Choose This Single Gas Cylinder Trolley With Support Wheel?

  • 100kg Maximum Load – Carries one gas cylinder and its contents up to 100kg.
  • 250mm Rubber Wheels – Solid wheels roll steadily over rough and uneven ground.
  • 120mm Support Wheel – Lowers for extra stability on uneven surfaces.
  • 610mm Retaining Chain – The adjustable chain holds the cylinder steady in transit.
  • Guided Assembly – Supplied with a video and manual to help with assembly.
  • Powder-Coated Finish – The blue coating helps protect the steel against corrosion.
  • 1 Year Warranty – Backed by a one-year warranty.
  • Free Next Day Delivery – Order before 4pm for delivery the next working day.
Blue steel single cylinder trolley with support wheel, retaining chains, red-hub rubber wheels and a cylinder foot plate

Frequently Asked Questions

  • What’s the maximum load, and does it include the cylinder?

    The maximum load is 100kg, and it covers the whole cylinder with its contents, not just the gas. Check the weight of the full cylinder before loading, and follow your risk assessment and HSE guidance on handling gas cylinders.

  • Which gas cylinders will this trolley take?

    It takes one cylinder at a time, between 230mm and 335mm in diameter and weighing up to 100kg in total. The cylinder stands on a 335mm × 230mm base plate. For propane bottles, we also offer a dedicated propane cylinder trolley.

  • How is the cylinder held in place?

    An adjustable 610mm retaining chain fastens the cylinder against the backing plate, which is 790mm from the ground. Secure the chain before tilting the trolley so the cylinder stays stable and can’t shift in transit.

  • What does the support wheel do?

    The 120mm support wheel lowers to give the trolley extra support and stability, which helps on uneven surfaces and lowers the risk of accidents in transit. With the wheel down the trolley measures 970mm high, and 1260mm without it.

  • Will it rust, and what wheels does it have?

    The steel frame has a blue powder-coated finish that helps protect it against corrosion, wear and tear. It runs on two 250mm solid rubber wheels, which handle rough and uneven ground, with a 120mm support wheel that lowers for extra stability.

  • Is it suitable for labs and hospitals?

    Yes, it suits labs, hospital estates, workshops and industrial sites that move one gas cylinder at a time. The adjustable 610mm chain secures the cylinder, and the 250mm solid rubber wheels give steady movement along corridors and between buildings.

  • Can I move two cylinders at once?

    No, this trolley is designed to carry one cylinder at a time for better control. To move a pair of cylinders together, choose our double gas cylinder carrier, which has two bays.

  • Is there a version without a support wheel?

    Yes. If you only need a single cylinder trolley on two wheels, see our single gas cylinder trolley. This model adds a 120mm support wheel to its two 250mm wheels and carries up to 100kg.
