Single Gas Cylinder Trolley - With Retaining Chain - 100kg Max Load

£76.49 Ex. VAT £91.79 Inc. VAT
£91.79 Inc. VAT £76.49 Ex. VAT

FREE DELIVERY

20+ units gets 3% off
10+ units gets 2% off
5+ units gets 1% off
SKU CODE: GASTRUCK-BUDGET
In Stock (11 units)

Free Delivery - Next Working Day

Klarna available at checkout

100kg Maximum Load - 460mm Retaining Chain - Fully Welded Steel Frame - 250mm Solid Rubber Wheels - Free Next Day Delivery

  • 100kg Maximum Load: Carries one gas cylinder and its contents up to 100kg.
  • 460mm Retaining Chain: Adjustable chain holds the cylinder firmly during transit.
  • 250mm Solid Rubber Wheels: Large wheels roll steadily over rough and uneven ground.
  • Powder-Coated Red Finish: Tough coating resists scuffs and scrapes in busy work areas.
  • 230mm Max Cylinder Diameter: Takes one oxygen or acetylene cylinder at a time.
  • Ergonomic Handle: Comfortable grip reduces operator fatigue when moving cylinders.
  • Minimal Assembly: Hassle-free setup straight out of the box.
  • 13.1kg Lightweight Frame: Easy to tilt, steer and reposition in confined spaces.
  • 325mm × 230mm Base Plate: Flat base plate gives the cylinder balanced support in transit.
  • 1180 × 610 × 500mm: Measures 1180mm high, 610mm wide and 500mm deep.
  • 1 Year Warranty: Backed by a one-year warranty.
  • Free Next Day Delivery: Get your trolley delivered free the next working day.
Quick Links:
Secure Single Cylinder Gas Truck

Secure Single Cylinder Gas Truck

This red steel gas cylinder trolley moves one cylinder of up to 100kg, held against the backing plate by an adjustable 460mm retaining chain. With a fully welded frame and 250mm solid rubber wheels, it suits welding and fabrication shops, site teams, labs, hospital estates and facilities teams moving gas bottles every day.

Single Gas Cylinder Trolley dimensions

Specification

WEIGHT CAPACITY
100kg
HEIGHT
1180mm
WIDTH
610mm
DEPTH
500mm
BASE PLATE WIDTH
325mm
BASE PLATE DEPTH
230mm
BACKING PLATE WIDTH
315mm
HEIGHT TO BACKING PLATE
790mm
MAXIMUM CYLINDER DIAMETER
230mm
CHAIN LENGTH
460mm
WHEEL DIAMETER
250mm
WEIGHT
13.1kg
COLOUR
Red
MATERIAL
Steel
FINISH
Powder Coated
WARRANTY
1 year
COMMODITY CODE
8428909000
GTIN
5061036698987

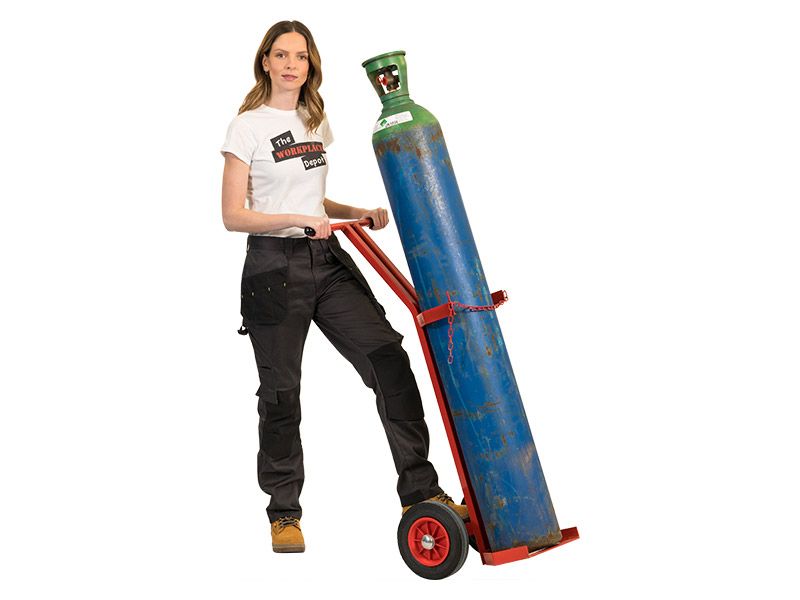

Woman tilting a full-size gas cylinder on a red single gas cylinder trolley, showing its load capacity

100kg Maximum Load Capacity

The trolley carries one gas cylinder of up to 100kg including its contents, and takes cylinders up to 230mm in diameter, such as oxygen, argon and acetylene in Y, M, W, L, N and J sizes. The cylinder stands on a 325mm × 230mm base plate, so site teams can move a full bottle with balanced support. Check the full cylinder weight before loading.

Adjustable 460mm Retaining Chain

An adjustable 460mm chain fastens the cylinder against the backing plate, 790mm from the ground, keeping it stable and limiting movement in transit. Because the trolley is built for one cylinder at a time, operators keep full control of the load, which lowers the risk of a bottle shifting or falling while it is moved.

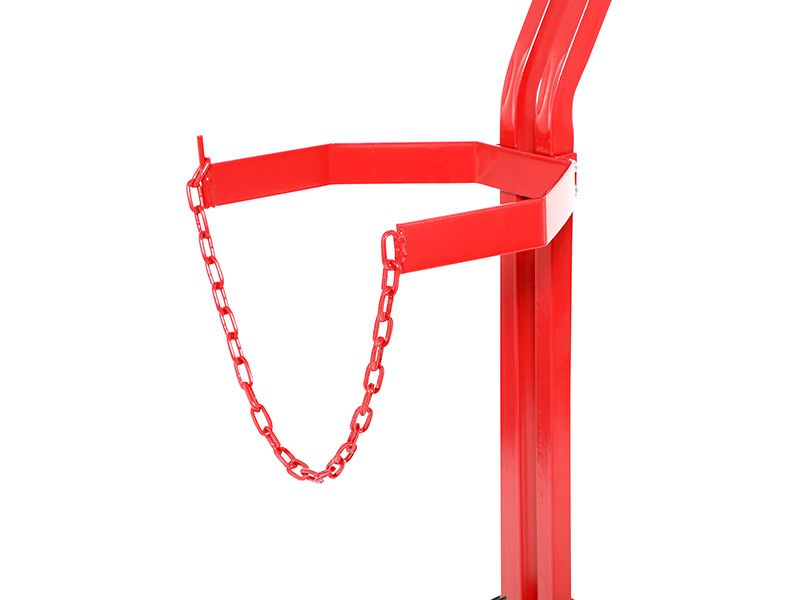

Close-up of the red cylinder cradle and adjustable retaining chain on the gas cylinder trolley

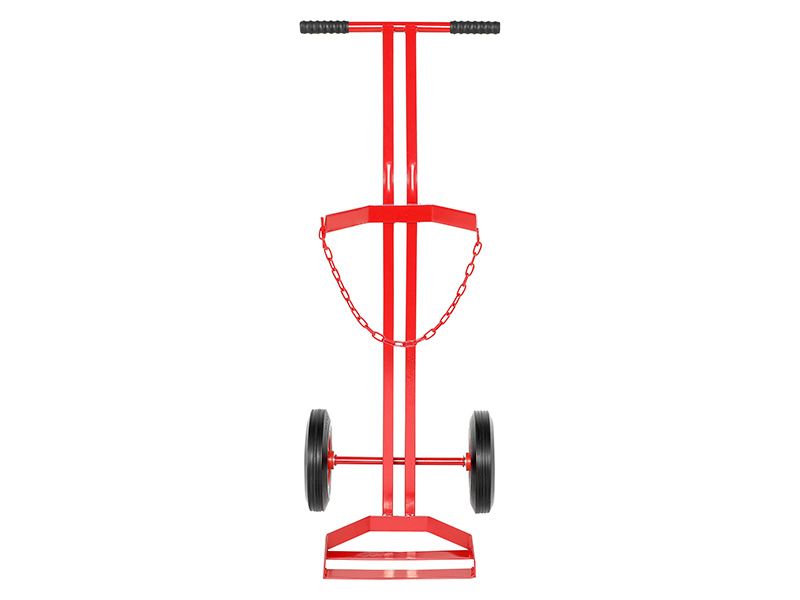

Red welded steel single gas cylinder trolley with retaining chain, T-handle, foot plate and solid rubber wheels

Fully Welded Steel Frame

The steel frame is fully welded, giving a rigid structure with no loose joints to check or tighten. It stands up to constant use in industrial units, workshops and hospital estates, with little maintenance needed to keep it in service.

250mm Solid Rubber Wheels

Two 250mm solid black rubber wheels roll steadily over rough and uneven ground, from workshop floors to site yards. Solid rubber gives consistent grip and balance, so site teams and facilities staff can move a loaded cylinder between areas with steady, controlled movement.

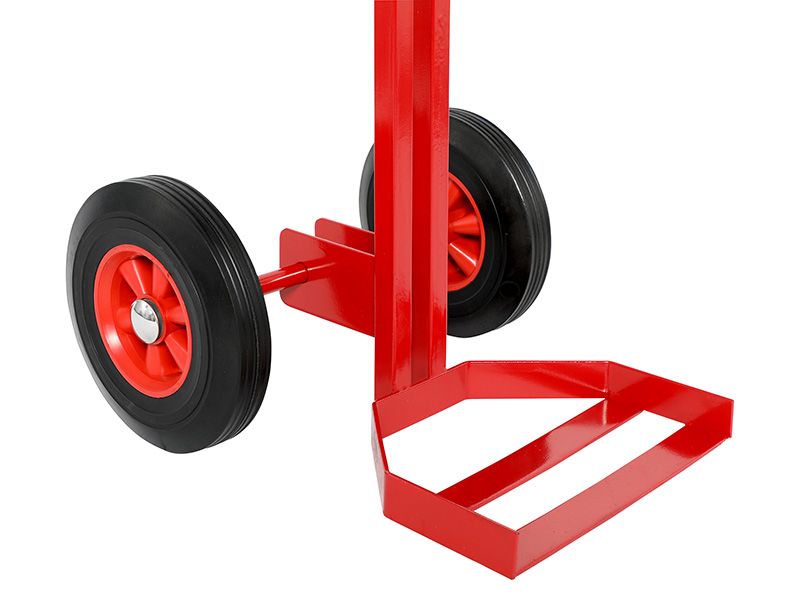

Close-up of the two 250mm solid black rubber wheels with red hubs on the gas cylinder trolley
Close-up of the red powder-coated steel base plate on the gas cylinder trolley

Scuff-Resistant Powder-Coated Finish

A professional red powder-coated finish resists the scuffs and scrapes common in busy work areas, protecting the steel from everyday wear. The trolley keeps its appearance with daily use and needs less upkeep, and the red colour stands out in workshops and stores.

Lightweight 13.1kg Design

At 13.1kg, the trolley is easy to tilt, steer and reposition through busy workspaces, narrow corridors and tight corners. Its compact frame lets operators move cylinders around confined areas with less effort, which helps when bottles are moved several times a shift.

Lightweight red single gas cylinder trolley seen from the side, showing its compact frame
Close-up of the ribbed black rubber handle grip on the red gas cylinder trolley

Ergonomic Handle Design

The handle and layout are designed for operator comfort, reducing strain and fatigue when tilting and pushing a loaded cylinder. Staff can move bottles with natural, controlled movements, helping welding teams, lab technicians and porters handle cylinders comfortably through longer shifts.

Why Choose This Single Gas Cylinder Trolley?

  • 100kg Maximum Load – Carries one gas cylinder and its contents up to 100kg.
  • 460mm Retaining Chain – The adjustable chain holds the cylinder steady in transit.
  • Fully Welded Steel – The rigid welded frame is built for daily use in busy workplaces.
  • 250mm Rubber Wheels – Solid wheels roll steadily over rough and uneven ground.
  • Powder-Coated Finish – The red coating resists scuffs and scrapes.
  • Lightweight 13.1kg – Easy to tilt, steer and move through confined spaces.
  • 1 Year Warranty – Backed by a one-year warranty.
  • Free Next Day Delivery – Order before 4pm for delivery the next working day.

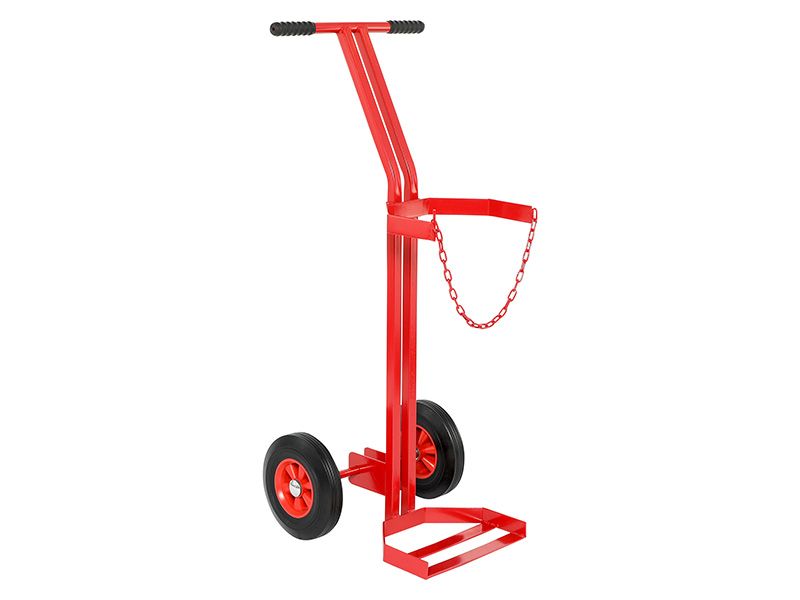

Red single gas cylinder trolley with retaining chain, black rubber wheels, toe plate and grip handles, on white

Frequently Asked Questions

  • What’s the maximum load, and does it include the cylinder?

    The maximum load is 100kg, and it covers the whole cylinder with its contents, not just the gas. Check the weight of the full cylinder before loading, and follow your risk assessment and HSE guidance on handling gas cylinders.

  • Which gas cylinders will this trolley take?

    It takes one cylinder up to 230mm in diameter and 100kg in total weight. That covers standard industrial cylinders such as oxygen or acetylene, in common sizes Y, M, W, L, N and J. The cylinder stands on a 325mm × 230mm base plate against a 315mm wide backing plate. For propane bottles, we also offer a dedicated propane cylinder trolley.

  • How is the cylinder held in place?

    An adjustable 460mm retaining chain fastens the cylinder against the backing plate, which is 790mm from the ground. Secure the chain before tilting the trolley so the cylinder stays stable and can’t shift in transit.

  • What finish and wheels does it have?

    The steel frame has a powder-coated red finish that resists scuffs, scrapes and everyday wear, helping protect the steel underneath. It runs on two 250mm solid black rubber wheels, which handle rough and uneven ground.

  • How heavy is the trolley itself?

    The trolley weighs 13.1kg, so one person can tilt, steer and reposition it easily. Its fully welded steel frame still supports a maximum load of 100kg.

  • Is it suitable for labs and hospitals?

    Yes, it suits labs, hospital estates, workshops and industrial sites that move one gas cylinder at a time. The adjustable 460mm chain secures the cylinder, and the 250mm solid rubber wheels give steady movement along corridors and between buildings.

  • Can I move two cylinders at once?

    No, this trolley is designed to carry one cylinder at a time for better control. To move a pair of cylinders together, choose our double gas cylinder carrier, which has two bays.

  • Is there a version with a support wheel?

    Yes. If you want a single cylinder trolley that can rest on a support wheel, see our single cylinder trolley with support wheel. This model runs on two 250mm wheels and carries up to 100kg.
