Expanding Aisle Barrier - Yellow Steel With Wall Brackets - Extends to 3340mm
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
Extends to 3340mm - Closes to 300mm - Fixes to Wall or Racking - Braked 75mm Wheels - Holds at Any Width - Free Next Day Delivery
- Extends to 3340mm: Spans a racking aisle, then closes to 300mm wide for storage.
- 3 Wall Bracket Receivers: Fix to a wall or racking uprights; all fixings supplied.
- 3 Connectors: 2 at one end and 1 at the other lock it in place at both ends.
- Braked 75mm Wheels: Pull it out across the aisle, then set the brakes to hold it.
- Holds at Any Width: Stays put at any width from 300mm closed to 3340mm fully open.
- Powder-Coated Steel: Reinforced steel with a yellow powder coat stands up to heavy use.
- High-Visibility Yellow: Bright yellow finish marks a closed aisle clearly to staff.
- 495mm × 360mm Lattice Gaps: Gives a clear visual boundary rather than a solid screen.
- 1540mm High: Tall frame makes the closed-off aisle clear from a distance.
- 13.35kg Weight: Light enough for one person to pull out and push back on its wheels.
- 1540 × 3340 × 500mm: Measures 1540mm high, 3340mm wide and 500mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your barrier delivered free the next working day.

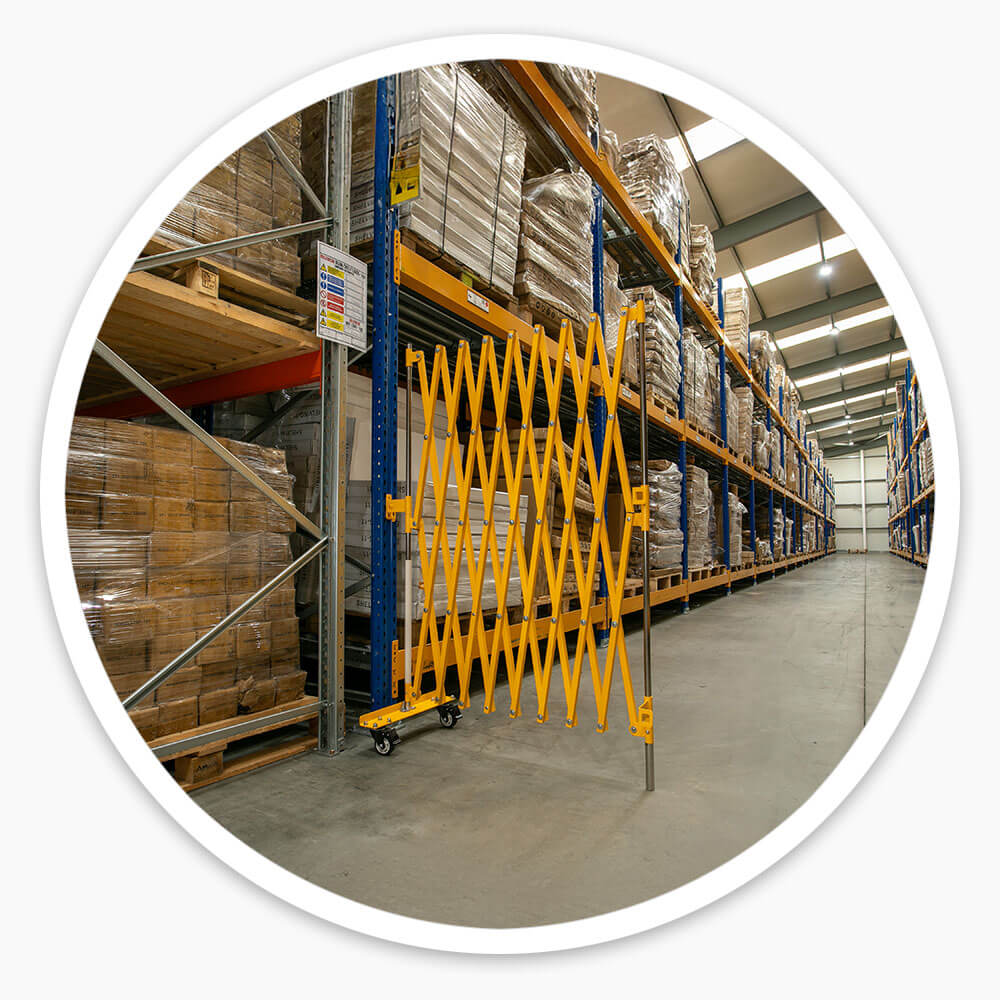

Aisle Barrier That Fixes to Wall or Racking

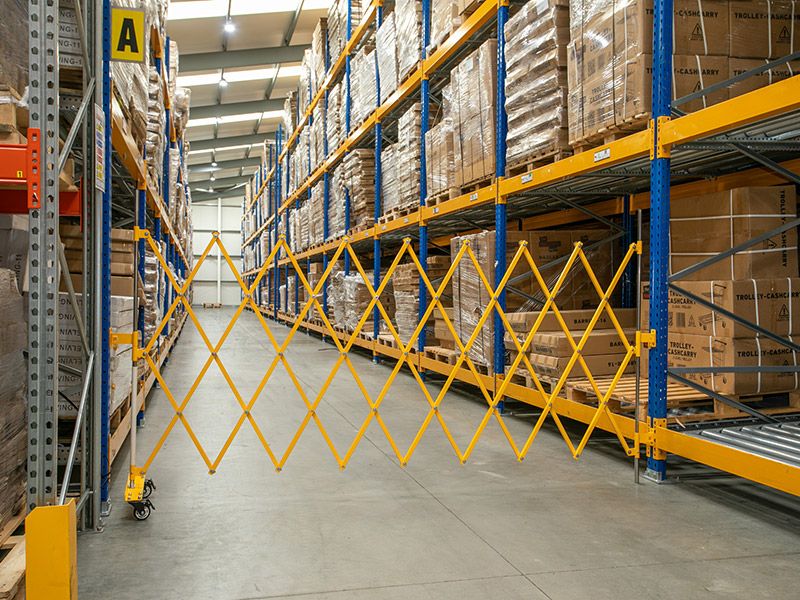

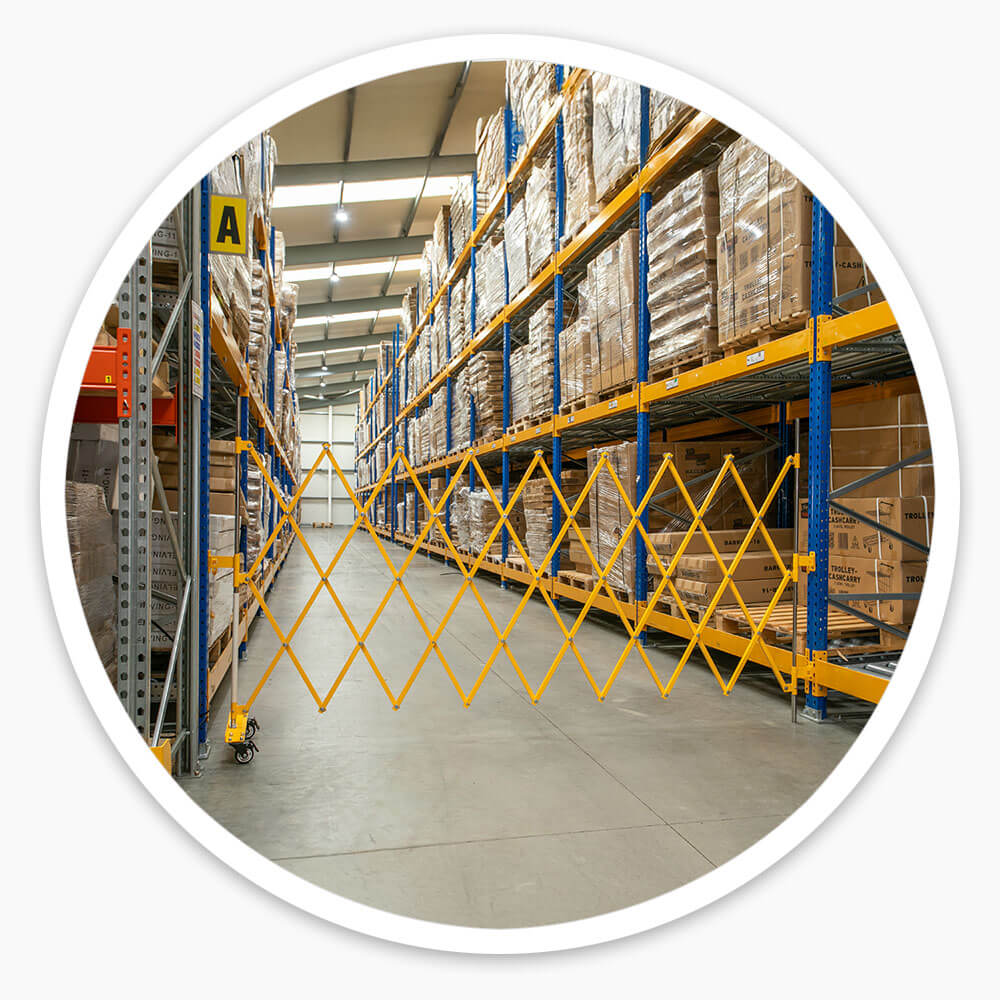

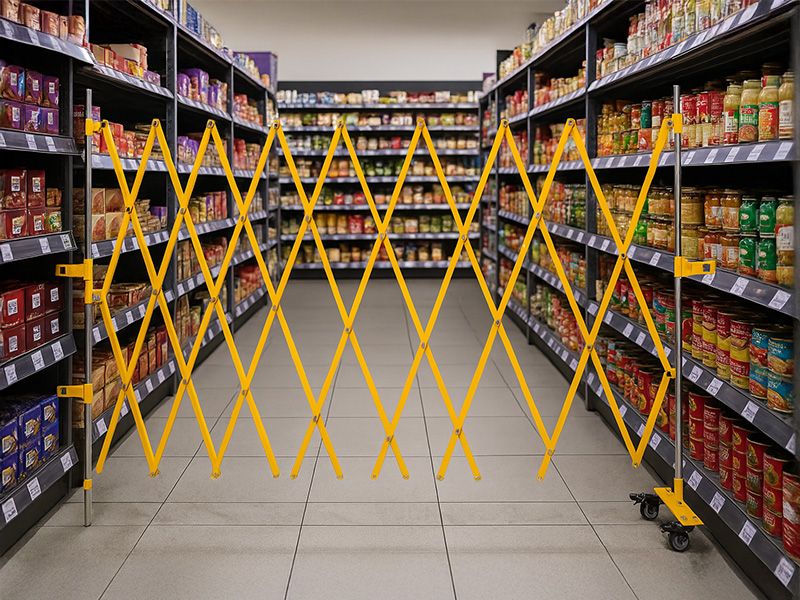

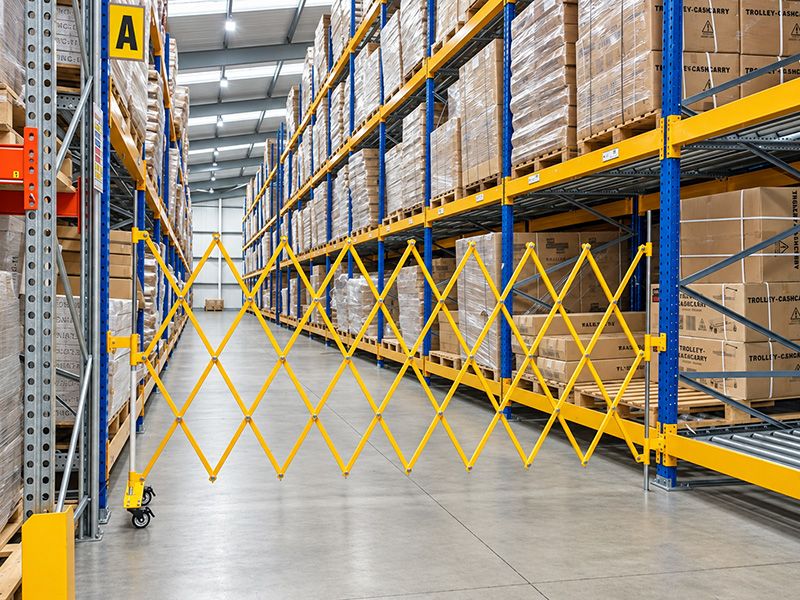

The Expanding Aisle Barrier fixes at one end to a wall or racking uprights and pulls out to 3340mm on braked 75mm wheels, closing off a racking aisle during forklift work, picking or maintenance. It closes to 300mm wide when the aisle reopens, and suits warehouses, stores and facilities teams that need a temporary or permanent no-go zone indoors.

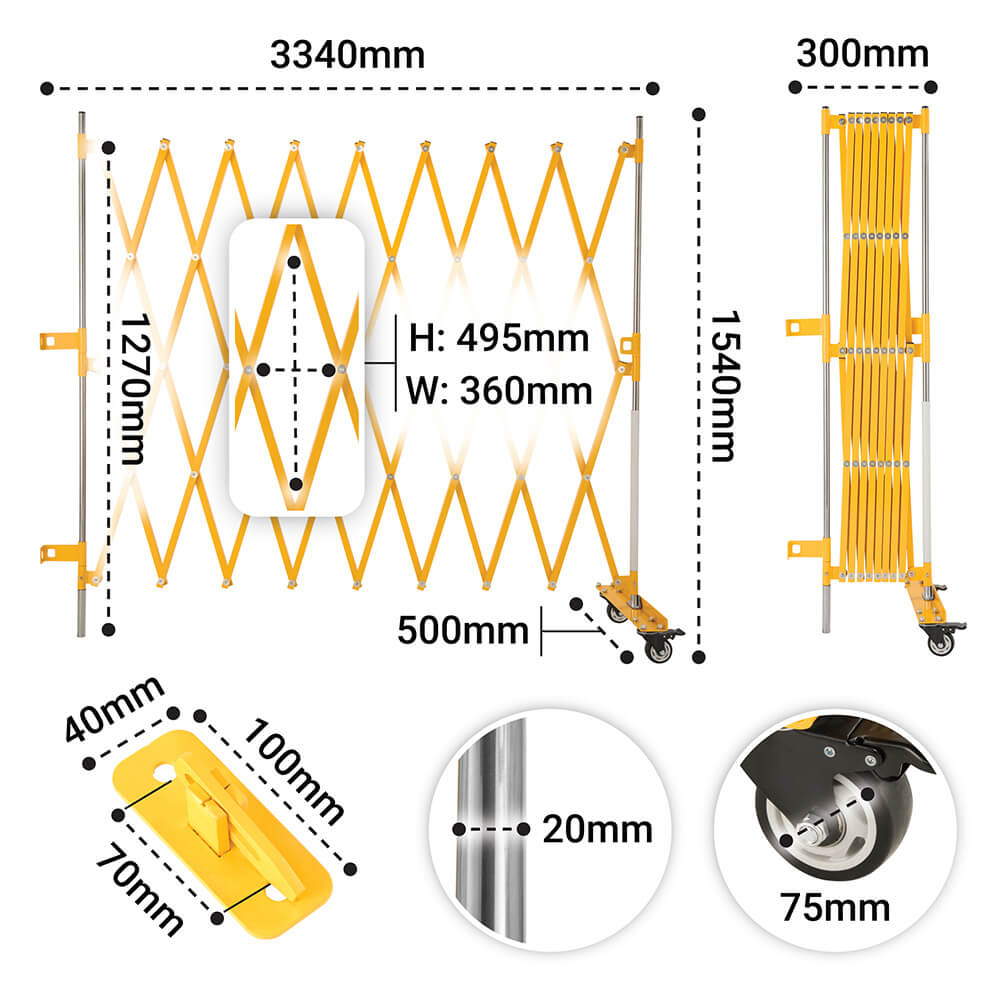

Specification
OVERALL HEIGHT- 1540mm
OVERALL WIDTH- 3340mm
DEPTH- 500mm
CLOSED WIDTH- 300mm
BARRIER HEIGHT- 1270mm
WHEEL DIAMETER- 75mm
EXPANDING GAP HEIGHT- 495mm
EXPANDING GAP WIDTH- 360mm
TUBE DIAMETER- 20mm
BRACKET HEIGHT- 100mm
BRACKET WIDTH- 40mm
BRACKET BOLT DISTANCE- 70mm
CONNECTORS- 3
WALL BRACKET RECEIVERS- 3
WEIGHT- 13.35kg
COLOUR- Yellow
MATERIAL- Steel
WARRANTY- 1 year
GTIN- 5061036694651

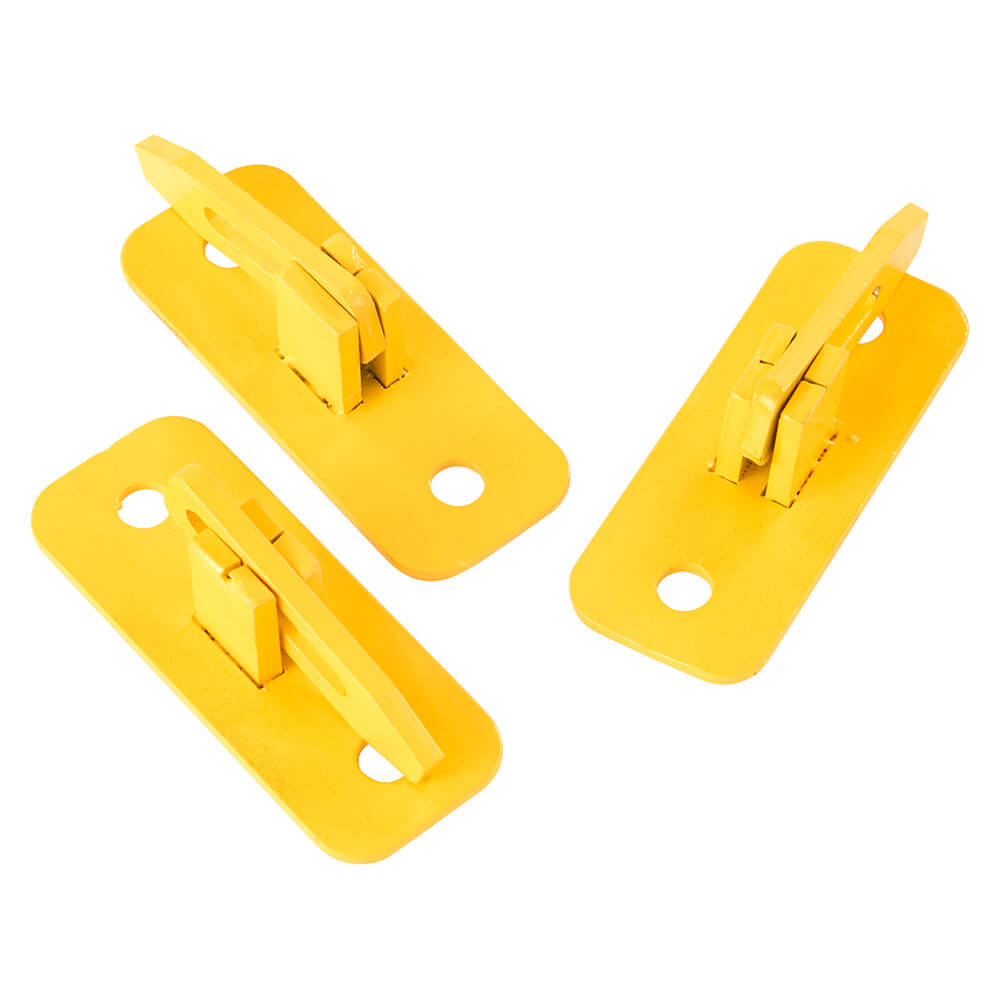

Fixes to a Wall or Racking

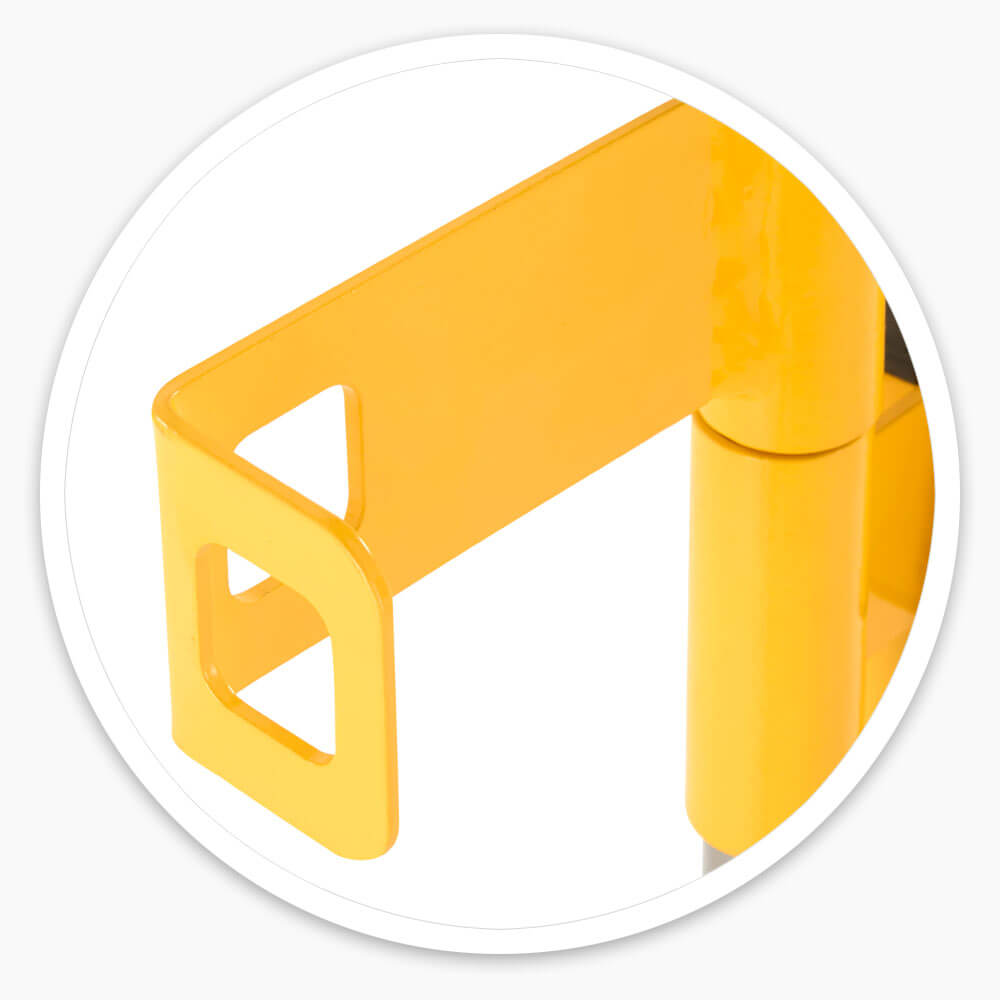

The barrier has 2 connectors at one end and 1 at the other, so it locks in place at both ends, and comes with 3 wall mount bracket receivers and all fixings supplied. The 100mm × 40mm brackets, with 70mm between bolt holes, fix to anything you can bolt or screw into, such as a wall or racking uprights. Each connector slides into a receiver and a latch holds it.

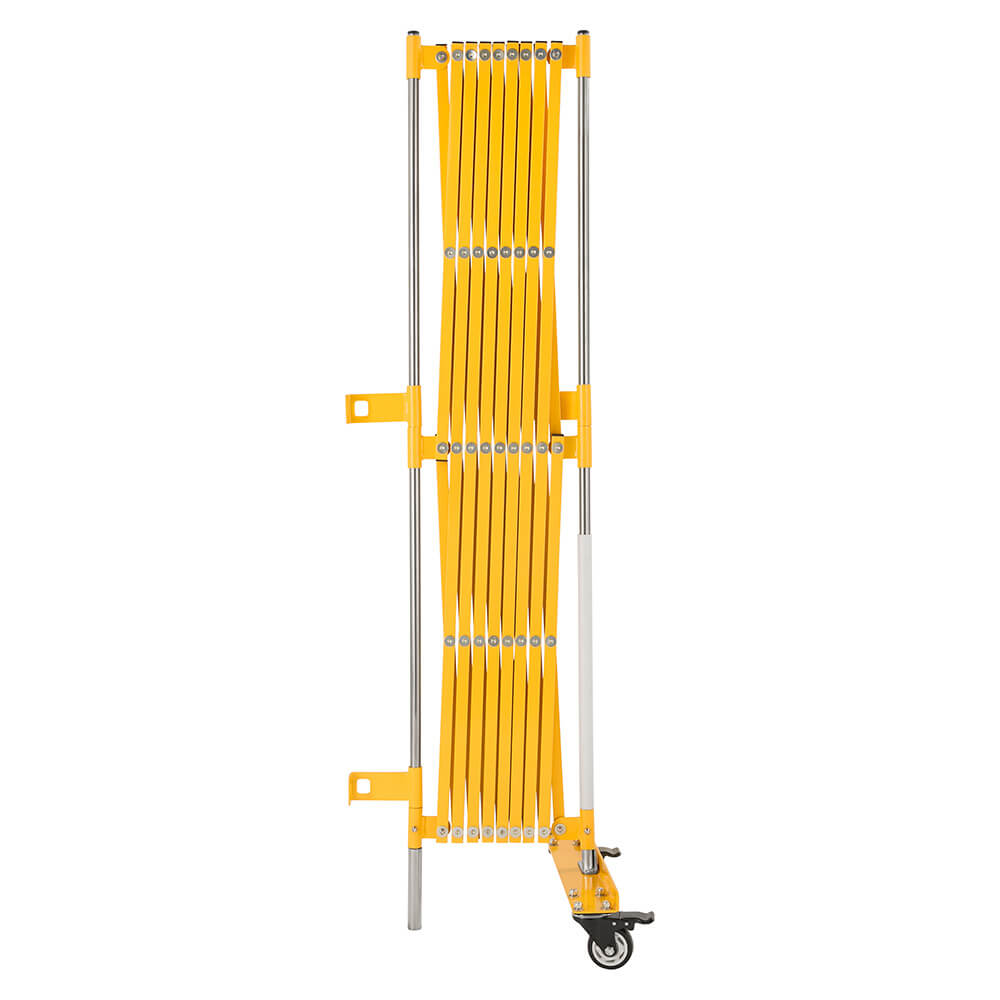

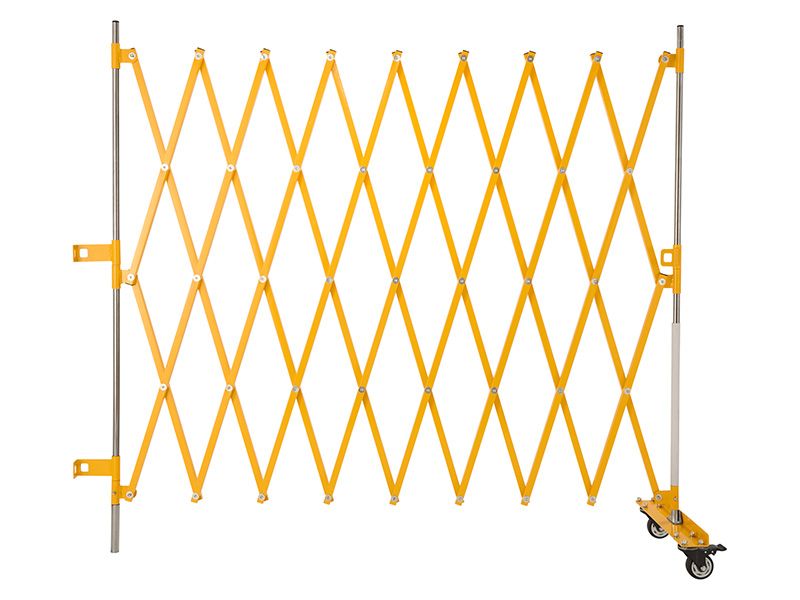

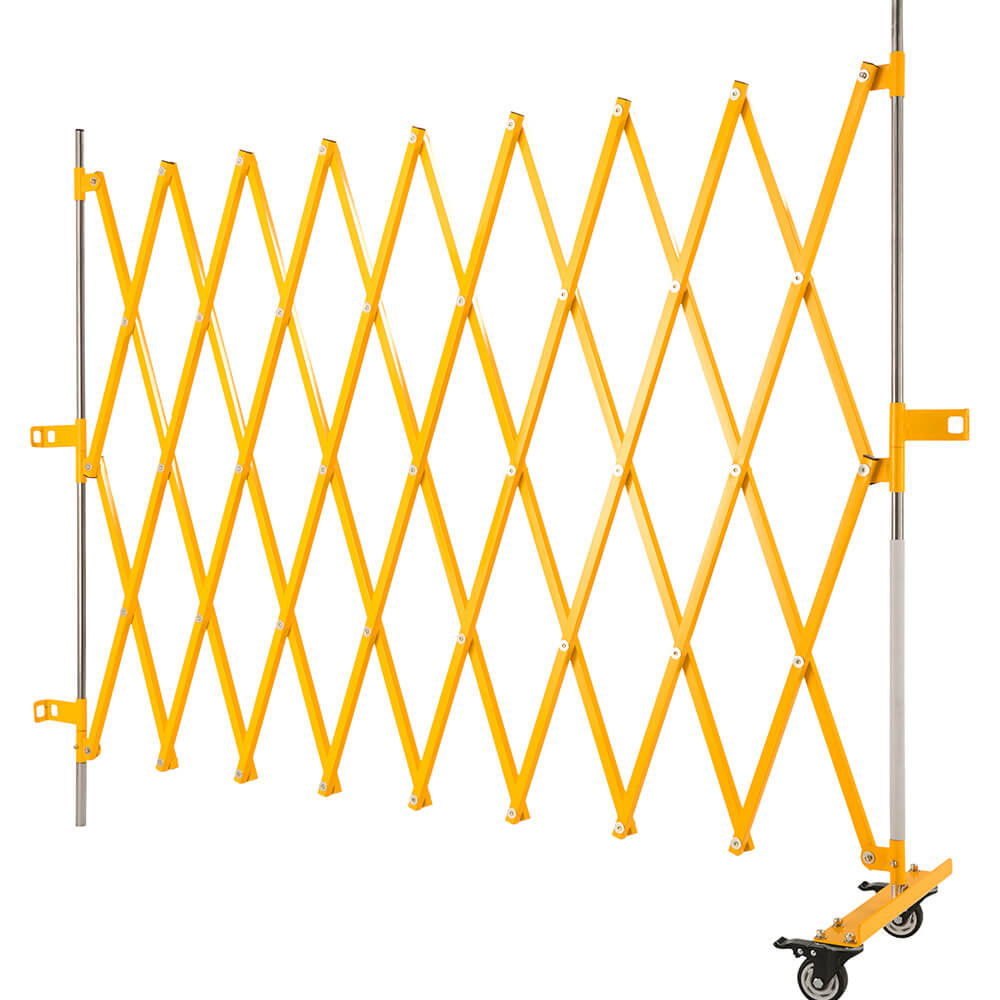

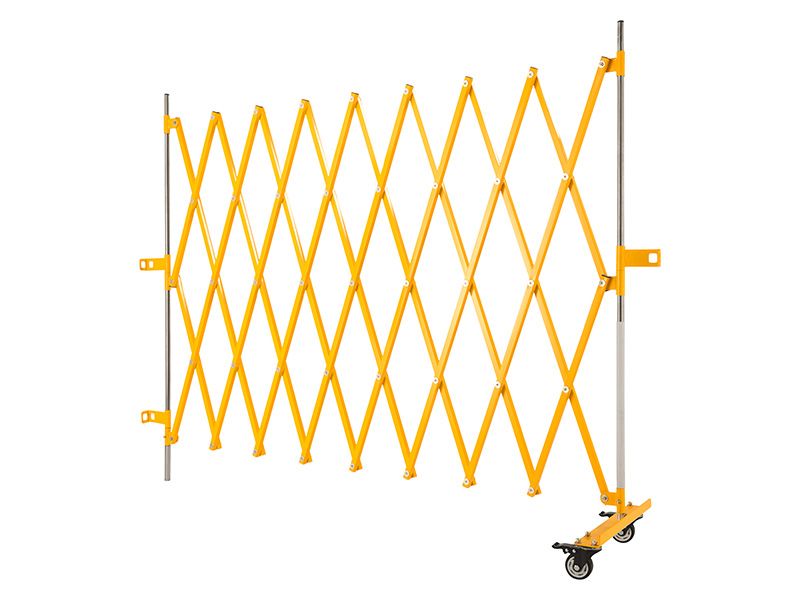

Opens to 3340mm, Closes to 300mm

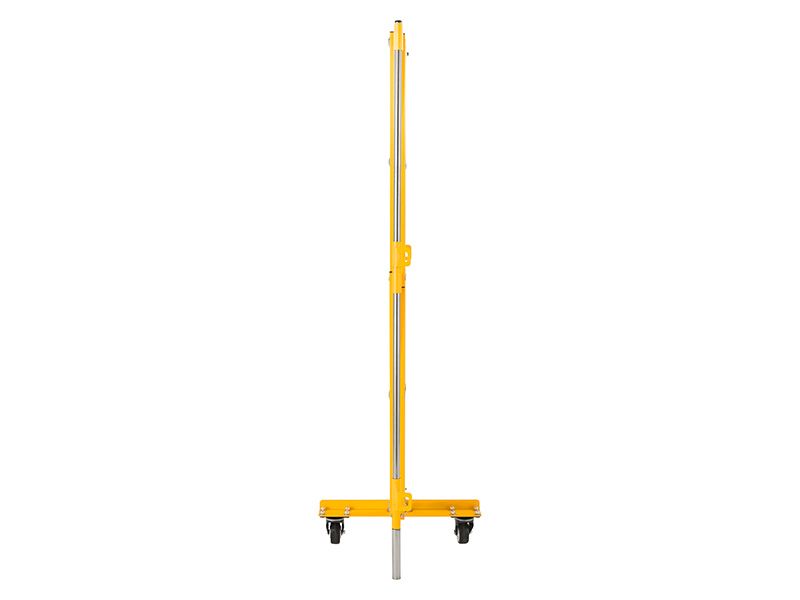

Pulled fully out, the barrier spans 3340mm from its fixed end, enough to close off a racking aisle or a work area in a warehouse. When the aisle reopens it closes to 300mm wide, so it sits against the wall or the end of the racking without taking up floor space.


Holds Steady at Any Width
You don’t have to open it fully. The barrier holds steady at any width from 300mm closed to 3340mm fully open, so it fits a narrow pedestrian aisle as well as a wider forklift aisle. One barrier can close off whatever width the job in front of you needs.

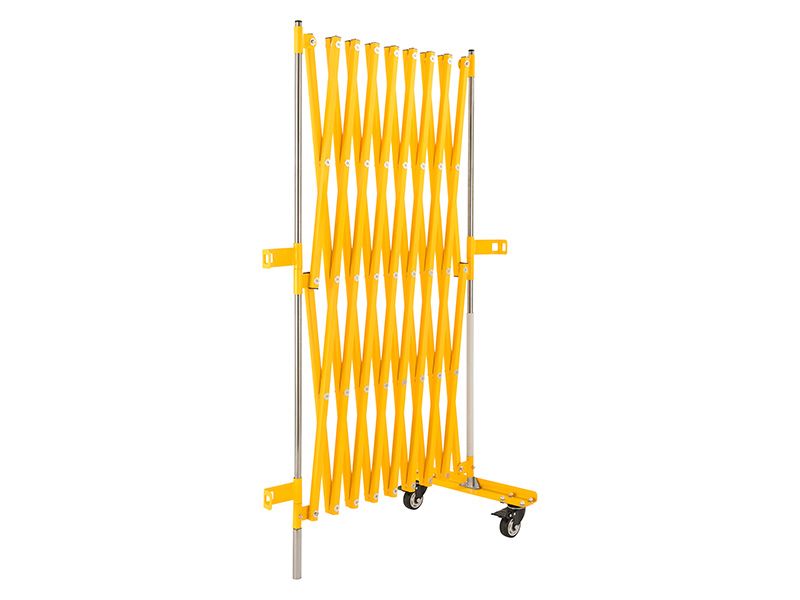

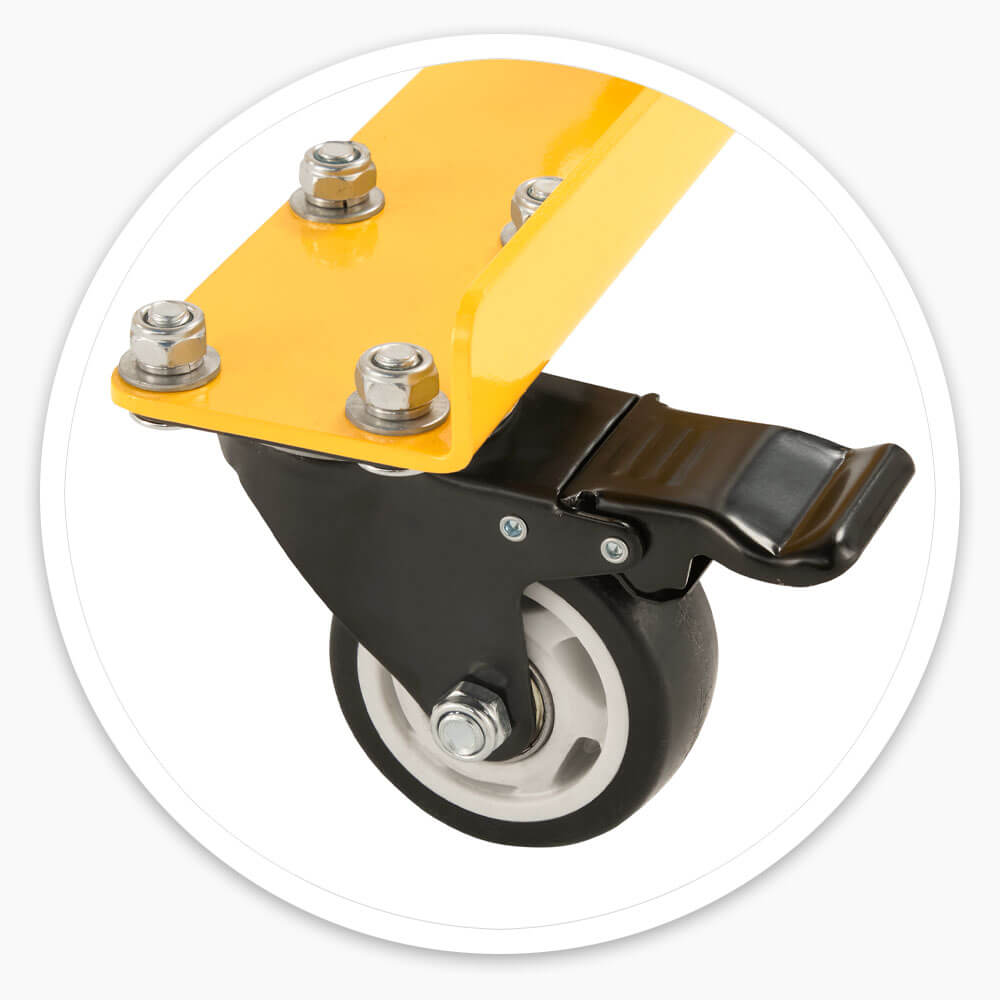

Braked 75mm Wheels
Two braked 75mm wheels on the free end let you pull the barrier out from its fixed end instead of carrying it. Once it’s across the aisle, apply the brakes to hold it in place. At 13.35kg, it’s easy for one person to pull out and push back again.

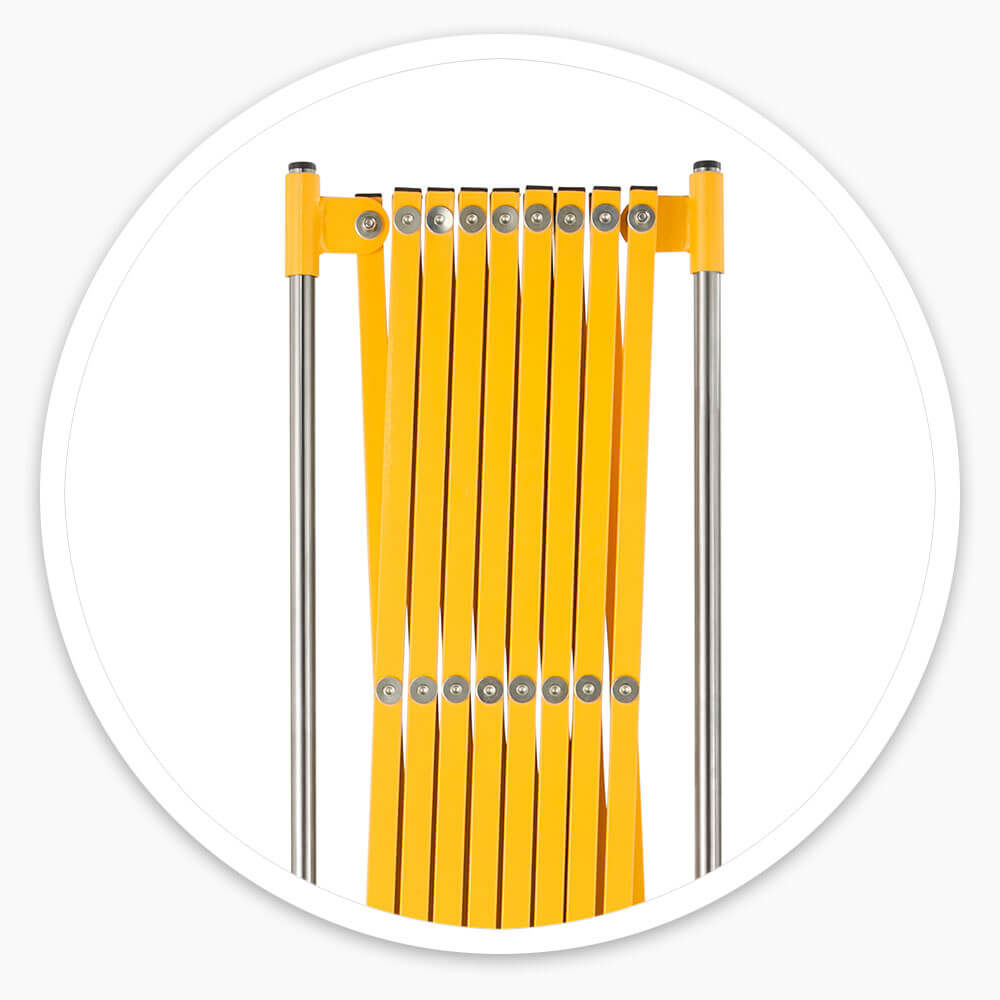

Powder-Coated Steel Frame
The frame is reinforced 20mm steel tube with a yellow powder coat, made to stand up to heavy use, knocks and everyday wear in busy warehouses. The powder coat resists scratches and scuffs and holds its colour, so the barrier stays clearly visible over time.
1540mm High-Visibility Yellow Frame
Standing 1540mm high in bright yellow, the barrier is easy to spot from the far end of an aisle, so staff see a restricted zone before they reach it. That helps in warehouses with forklift traffic, where a closed aisle needs to be obvious to pedestrians and drivers alike.

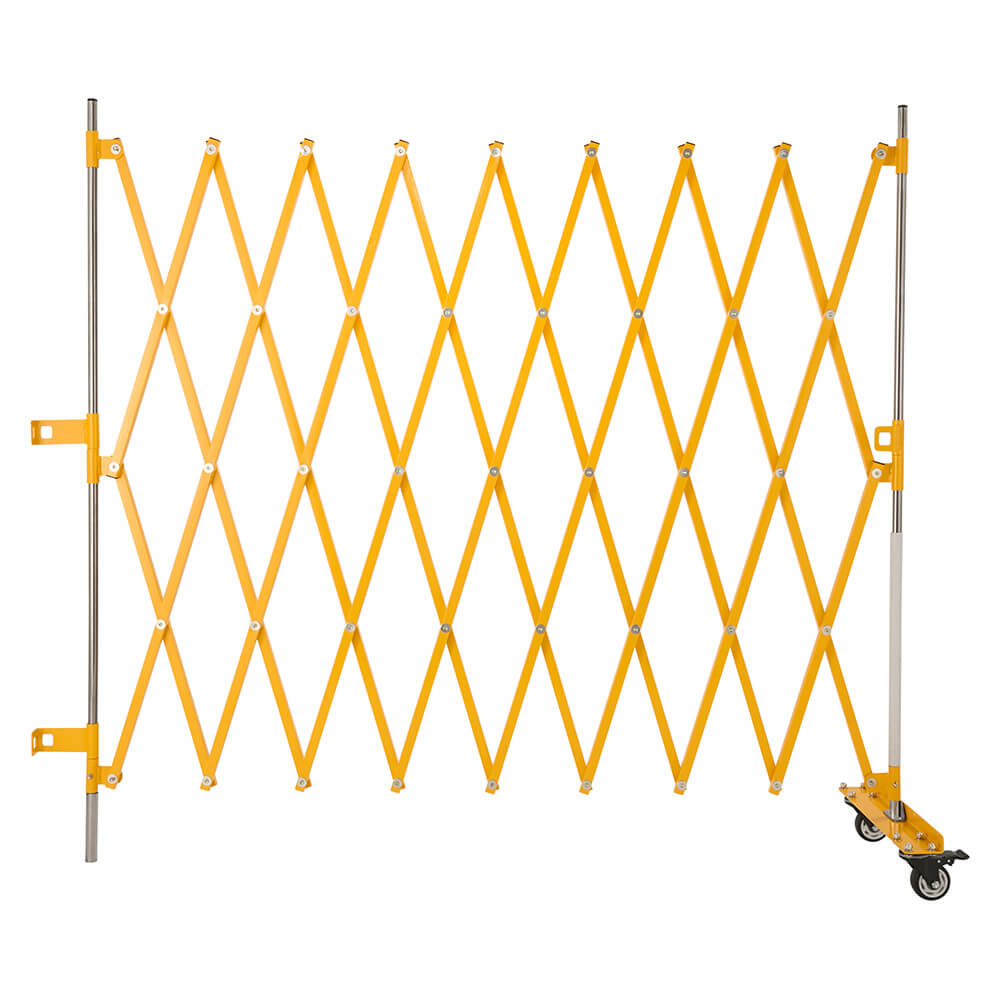

Open 495mm × 360mm Lattice
The expanding lattice has gaps 495mm high by 360mm wide, so it acts as a clear visual boundary rather than a solid screen. It marks off the aisle and warns people away, while staff can still see what’s happening beyond it. The barrier is designed for indoor use.
Why Choose This Expanding Aisle Barrier?
- Extends to 3340mm – Closes off a racking aisle in one run.
- Closes to 300mm – Sits against the wall or racking when the aisle is open.
- Fixes to Wall or Racking – 3 bracket receivers with all fixings supplied.
- Braked 75mm Wheels – Pull it out and hold it in place with the brakes.
- Holds at Any Width – Use it part-open to fit the aisle in front of you.
- Powder-Coated Steel – A reinforced yellow steel frame made for heavy use.
- 1540mm High – Tall, bright yellow and easy to see down an aisle.
- 1 Year Warranty – Backed by a one-year warranty.

Frequently Asked Questions
Can I use it part-open?
Yes. The barrier holds steady at any width from its 300mm closed width to its 3340mm fully open width, so you can set it to fit a narrow aisle rather than opening it fully every time.
Can I link several barriers together?
No, this barrier doesn’t link to other barriers. One end fixes to a wall or racking and it covers up to 3340mm on its own. For a free-standing barrier that covers a wider opening, look at the extra large expandable barrier.
Can it be used outdoors, and how does it cope with wind?
It’s designed for indoor use, as most aisles are indoors, but it can work in an outdoor aisle too. It has no wind rating, so check conditions in your risk assessment. For regular outdoor work, look at the large expandable barrier, which is designed for indoor and outdoor use.
Is it suitable for crowd control?
No. It marks off an aisle and keeps people away from a hazard, but it isn’t built for people to stand and push against. For queues and crowds, use rope and post barriers, retractable barriers or, for heavy-duty use, a police barrier.
Does it need putting together?
Only the wheels. They bolt on with 10 bolts using a spanner, which isn’t included, and fitting them is quick. Fix the bracket receivers to your wall or racking with the fixings supplied, and the barrier is ready to use.
How do I fix it and keep it in place?
Fix the 3 bracket receivers to a wall or racking uprights with the fixings supplied. The barrier has 2 connectors at one end and 1 at the other, so it can lock in place at both ends: each connector slides into a receiver and you flip the latch down to hold it. Two braked 75mm wheels let you pull it across the aisle, then apply the brakes to keep it there.
Is there a lighter barrier for shops and offices?

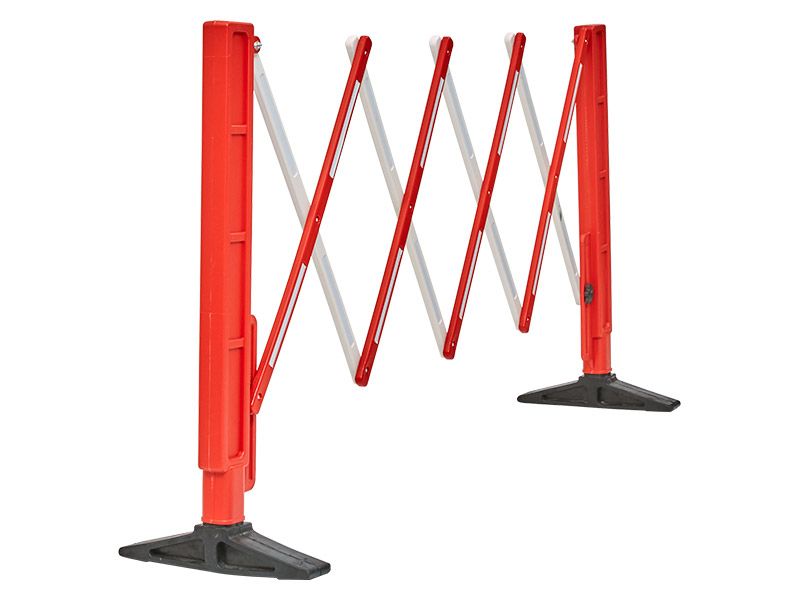

Yes. This steel barrier weighs 13.35kg and is made to fix across warehouse aisles. For spills and cleaning in shops, offices and schools, a lighter plastic expandable barrier is easier to carry from place to place.
What warranty does it come with?
It comes with a one-year warranty. The barrier is made from reinforced, powder-coated steel for heavy use in warehouses and other indoor workplaces.
