Dotted Double Garage Floor Tile Pack - 169 Tiles and 13 Edges - Up to 3.35 Tonnes Per Tyre
FREE DELIVERY
Free Delivery - Next Working Day
Up to 3.35 Tonnes Per Tyre - 169 Tiles and 13 Black Edges - Made in the UK - Load Tested for Forklifts - Free Next Day Delivery
- 169 Tiles and 13 Edges: Covers a double garage floor of approx. 6.1m × 6.1m in one pack.
- Whole-Garage Pack: One order for the whole floor, cheaper than buying the tiles singly.
- Made in the UK: Manufactured in the UK from hard-wearing recycled vinyl PVC.
- Load Tested for Forklifts: Load tested to 3.35 tonnes per tyre for forklifts and pallet trucks.
- Up to 1 Tonne UDL: Each tile is rated up to 1 tonne when the load is spread evenly.
- Slip-Resistant Dotted Surface: Raised dots add grip underfoot across the garage floor.
- Oil and Chemical Resistant: Resists oils, solvents and moisture, so spills wipe up easily.
- Fire Tested Vinyl: Fire tested to BS EN ISO 11925-2:2010 and classed Bfl-s1.
- Loose Lay or Glued: Lays loose on hard floors, or can be glued where forklifts turn.
- Cut to Fit: Trims with a sharp utility knife to fit flush at walls and fixed points.

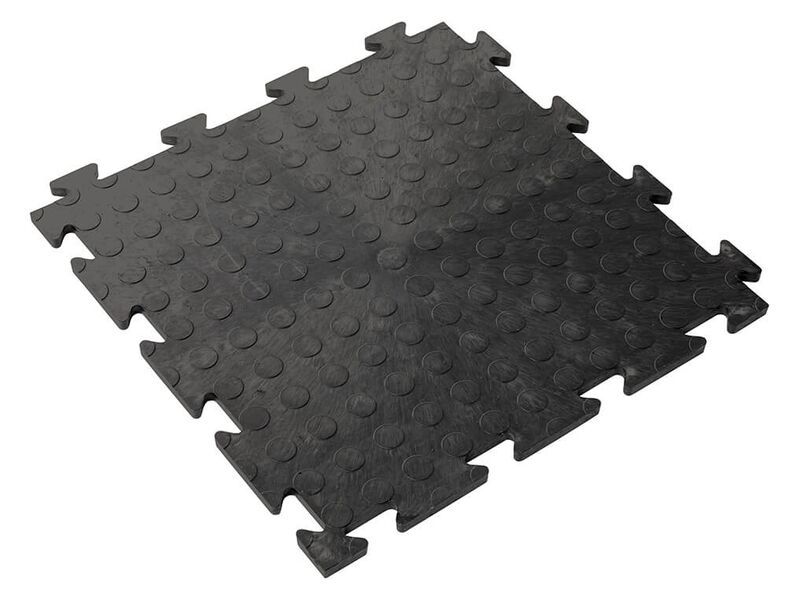

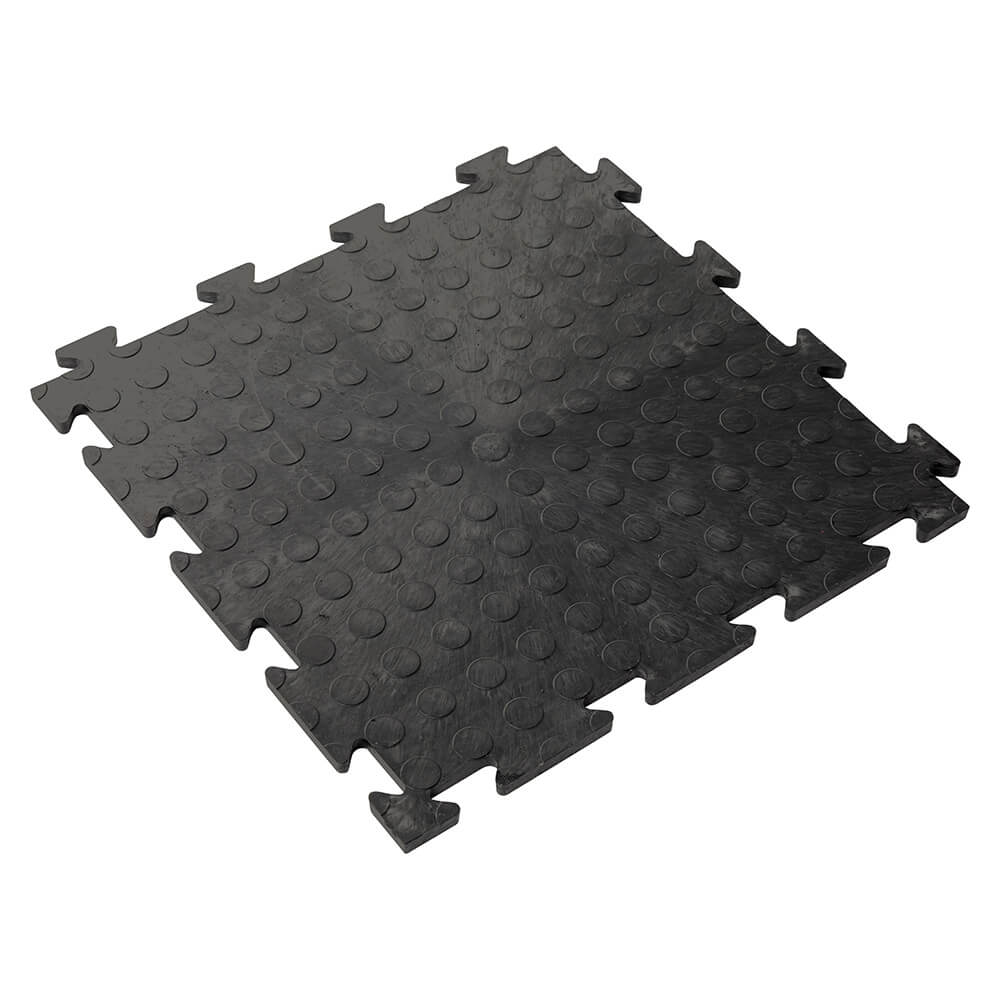

- 12 × 495 × 495mm: Each tile measures 12mm high, 495mm long and 495mm wide.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your pack delivered free the next working day.
UK-Made Dotted Tiles for a Double Garage

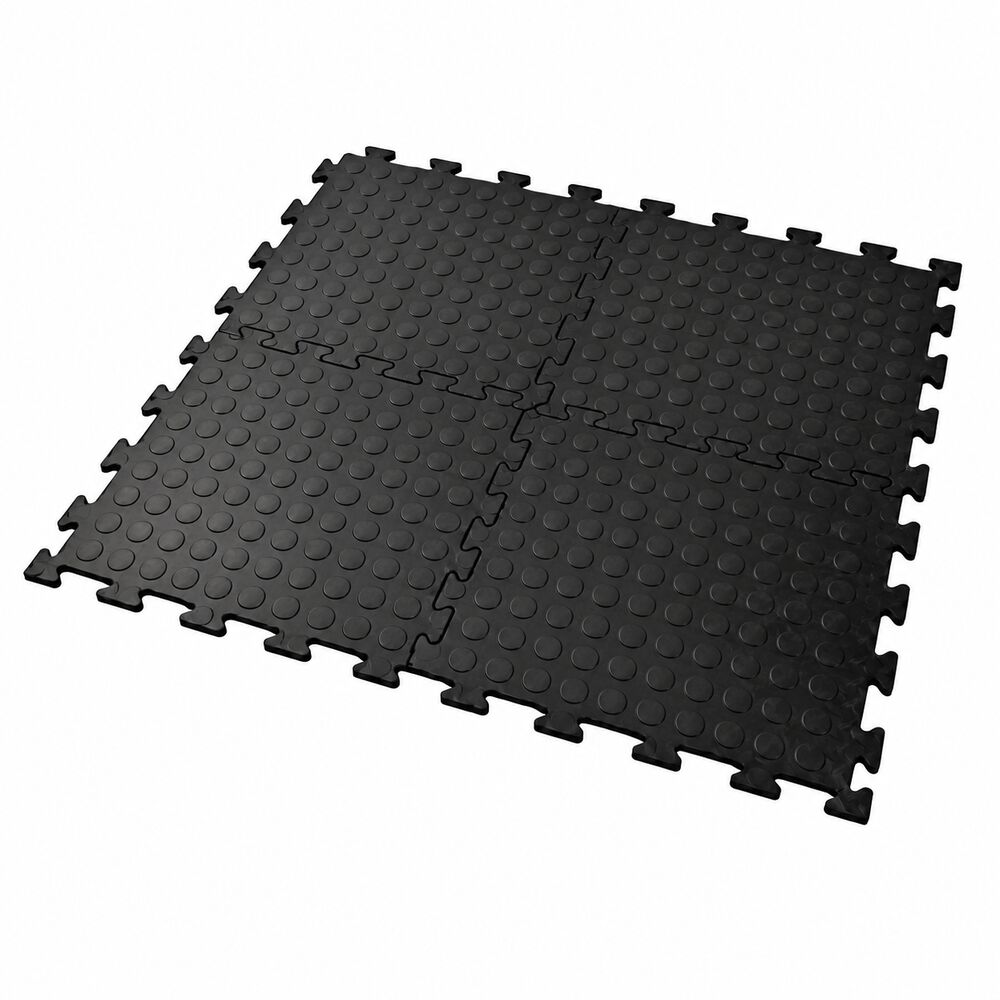

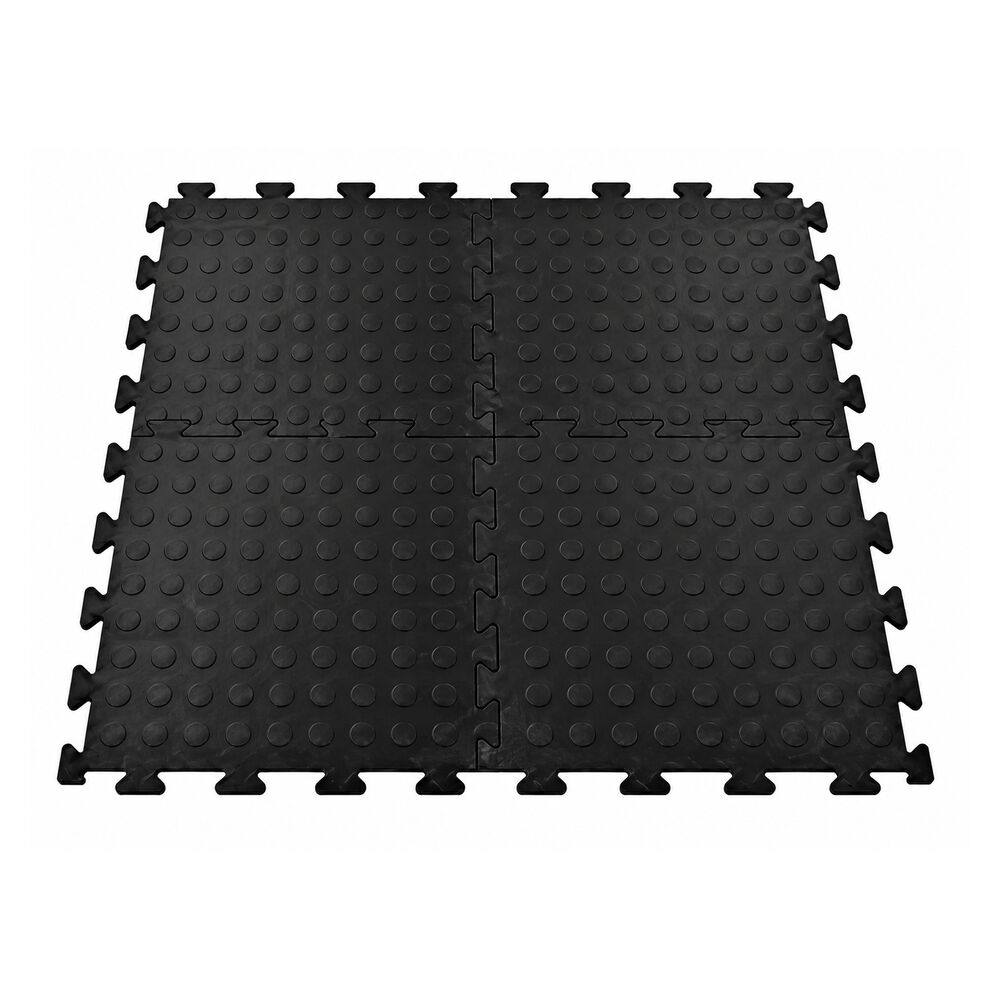

Everything you need to floor a double garage in one order: 169 dotted interlocking tiles and 13 black edges, covering approx. 6.1m × 6.1m. Made in the UK from recycled vinyl PVC, each 495 × 495mm tile is 12mm thick and load tested to 3.35 tonnes per tyre. The pack costs less than buying the tiles singly, making it a practical choice for home garages and workshops.
Specification
TILES INCLUDED- 169
EDGES INCLUDED- 13 black edges
TOTAL COVERAGE- Approx. 6.1m × 6.1m
MATERIAL- Recycled Vinyl PVC
HEIGHT- 12mm
WIDTH- 495mm
LENGTH- 495mm

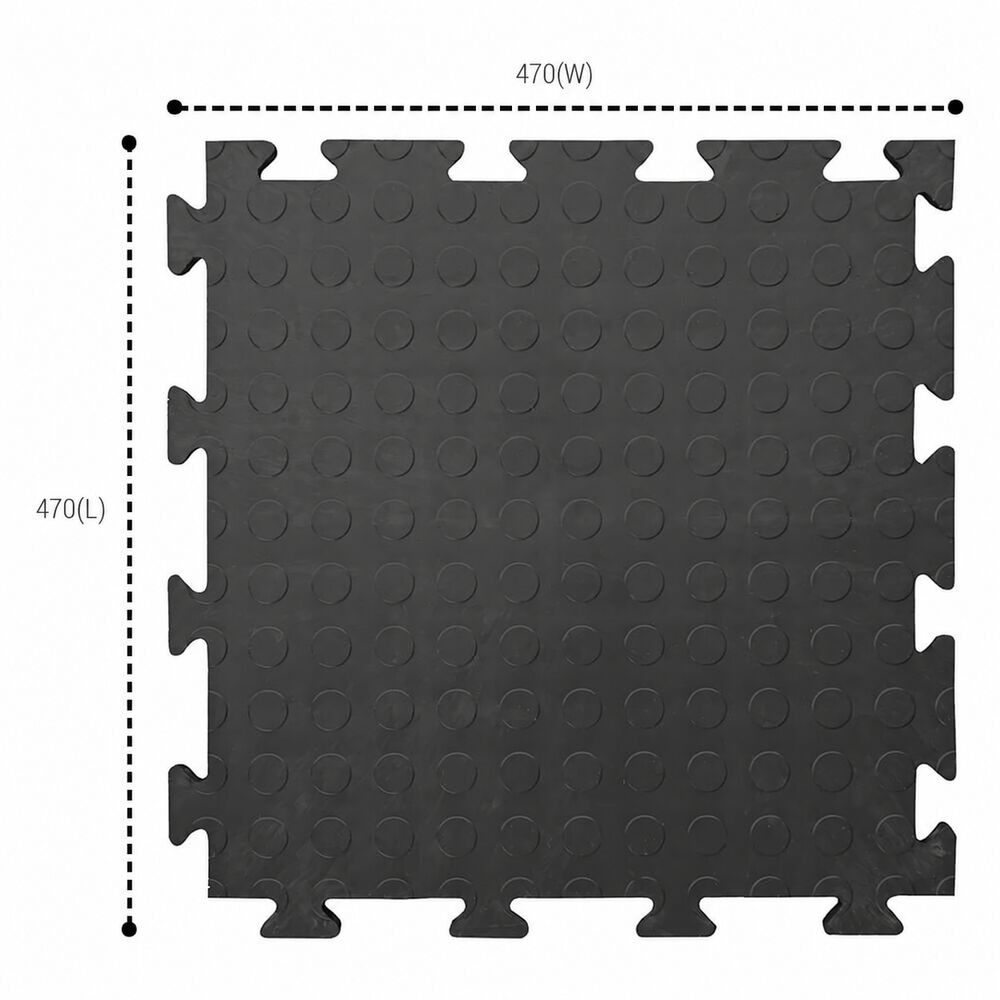

APPROX. LAID SIZE- 470 × 470mm
- TILES PER M²
- Approx. 4.57
WEIGHT- 1.8kg
COLOUR- Black
SURFACE FINISH- Dotted
LOAD CAPACITY- Up to 1 tonne/tile (UDL)
TYRE LOAD- Up to 3.35 tonnes/tyre
- INSTALLATION
- Interlocking jigsaw
FITTING METHOD- Loose or glued
CUSTOMISATION- Cut to fit
- FLOOR TYPE
- Hard floor surfaces
USE- Indoor and outdoor
FIRE RESISTANCE- BS EN ISO 11925-2:2010
- FIRE CLASSIFICATION
- Bfl-s1 (BS EN ISO 9239-1)
SLIP RESISTANCE- ASTM E303
WARRANTY- 1 year
COMMODITY CODE- 40169100
169 Tiles for a Double Garage
Floor a double garage in one order with 169 dotted tiles and 13 black edges, covering approx. 6.1m × 6.1m. The pack costs less than buying the tiles singly, and because the tiles are modular, they can be trimmed to fit a smaller garage or topped up with single tiles for a larger one.
Load Tested to 3.35 Tonnes Per Tyre
Each tile is load tested to 3.35 tonnes per tyre and rated up to 1 tonne UDL, suiting forklifts, pallet trucks, stillages and heavy loads, so parking a car and driving in and out of the garage are well within what it’s built for. The 12mm recycled vinyl PVC stands up to heavy wheels in workshops, stores and loading areas.
Made in the UK From Recycled PVC
Each black tile is made in the UK from recycled vinyl PVC, giving home users and facilities teams a hard-wearing floor that puts waste material to use. Colour can vary slightly between batches, without affecting how the tile performs, so order all the tiles for one floor in a single go.

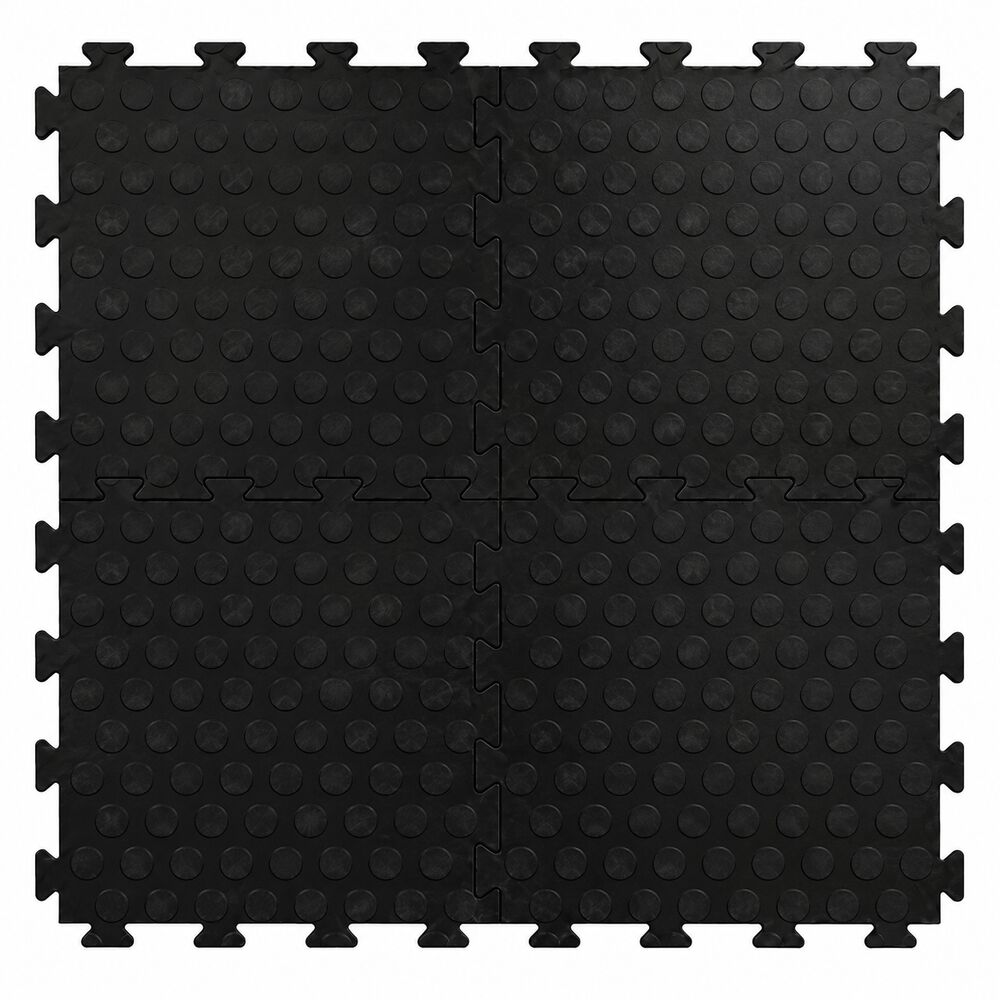

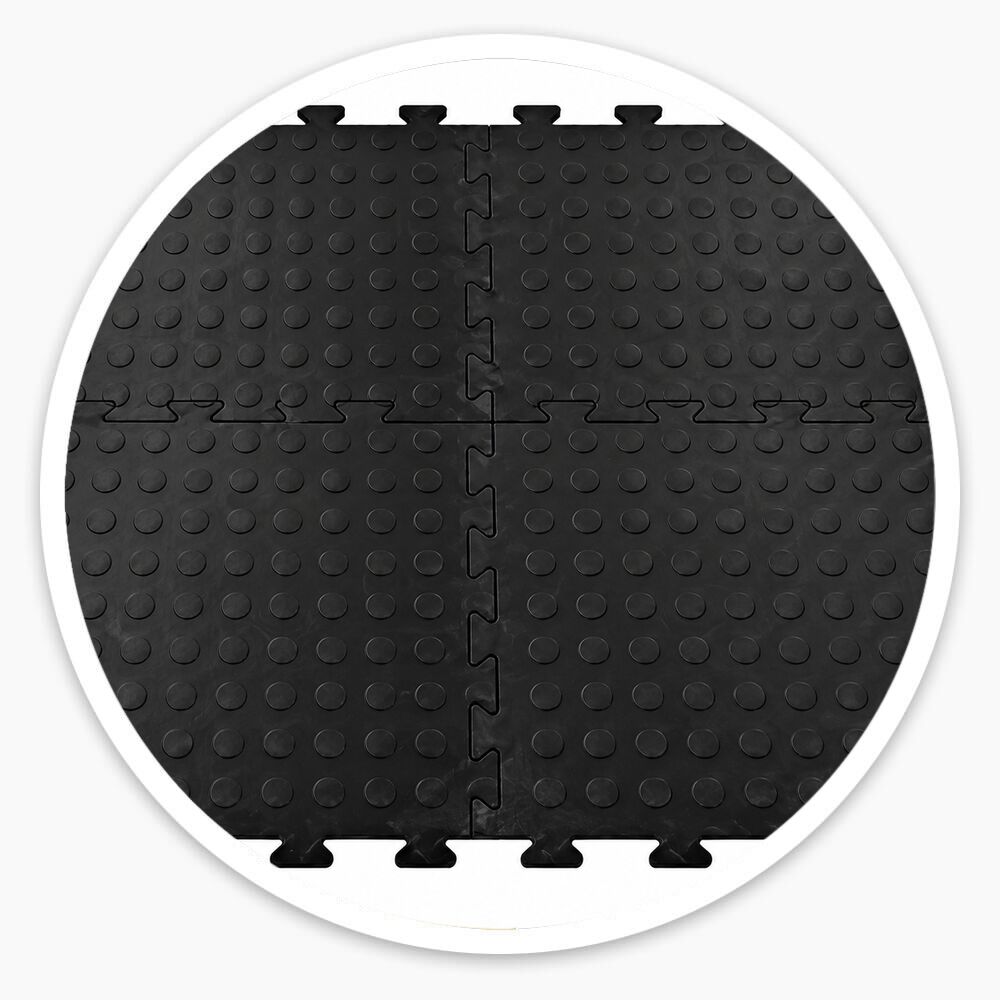

Simple Jigsaw Fitting

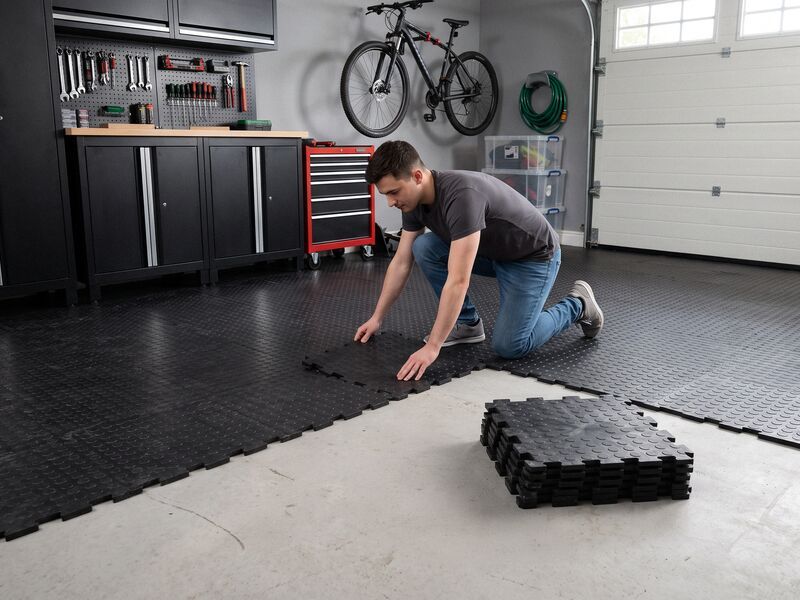

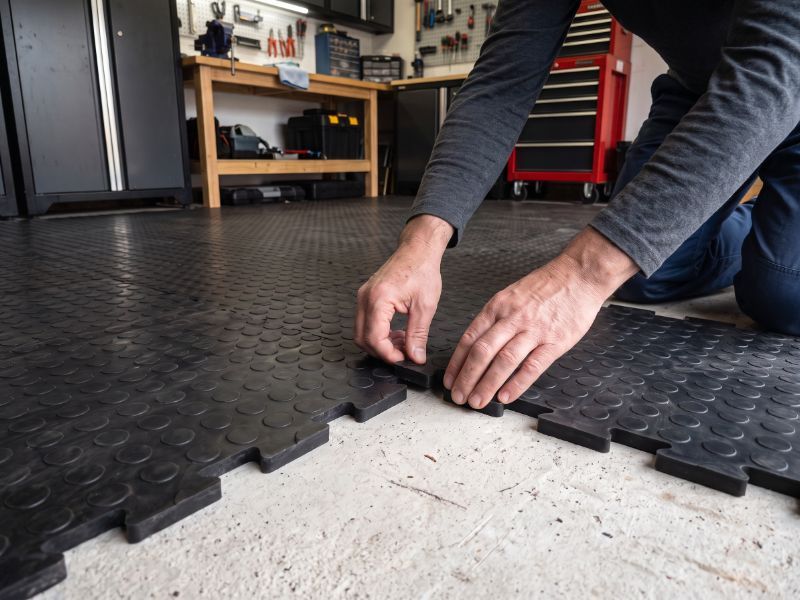

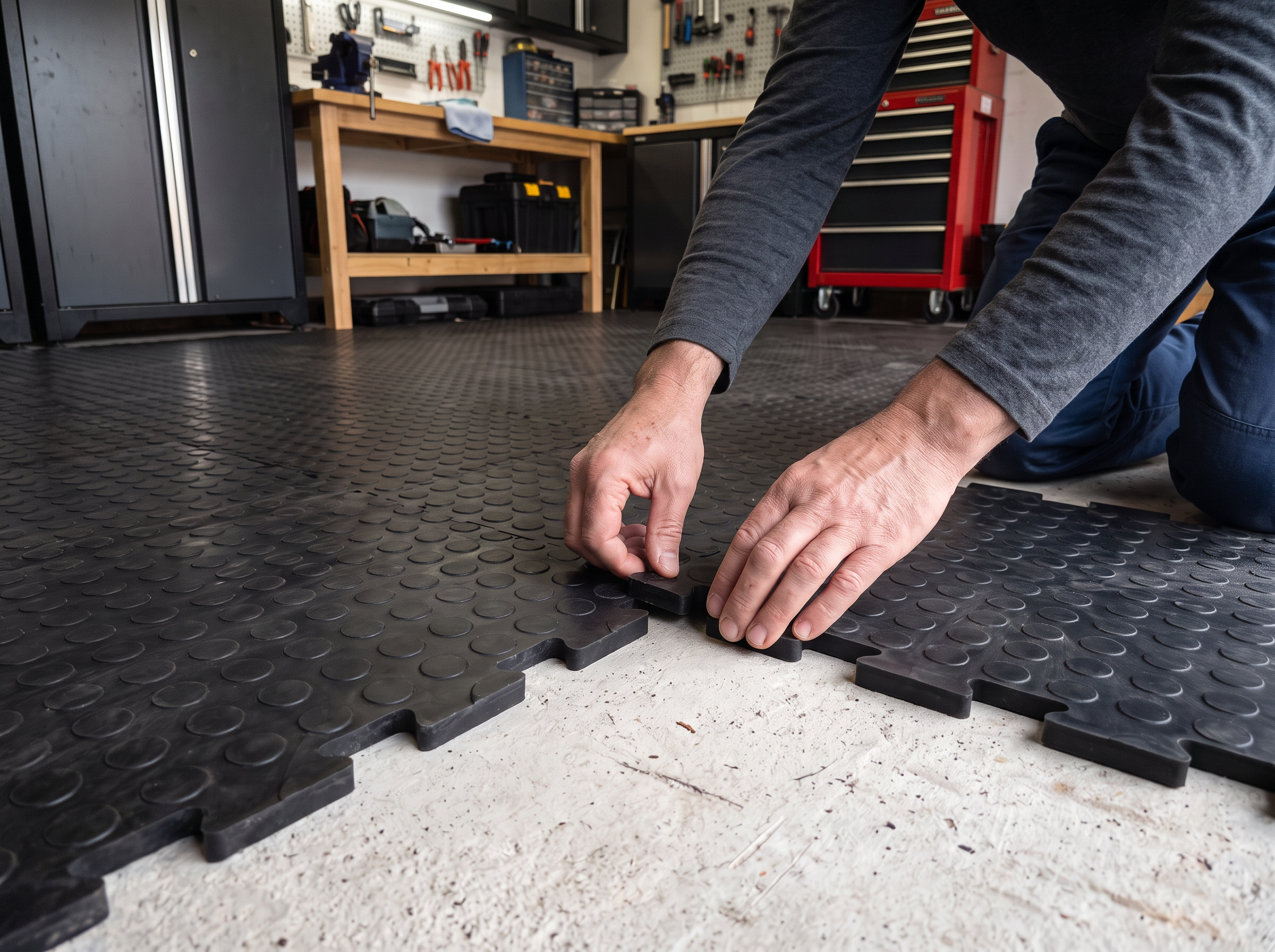

Let the tiles acclimatise for 24 hours, then lay them loose on a swept hard floor. Start at the centre, tap the jigsaw joins together with a rubber mallet and work outwards, leaving an expansion gap at walls. Then cut the perimeter tiles with a sharp utility knife. Glue only in direct sunlight or where forklifts turn tightly.

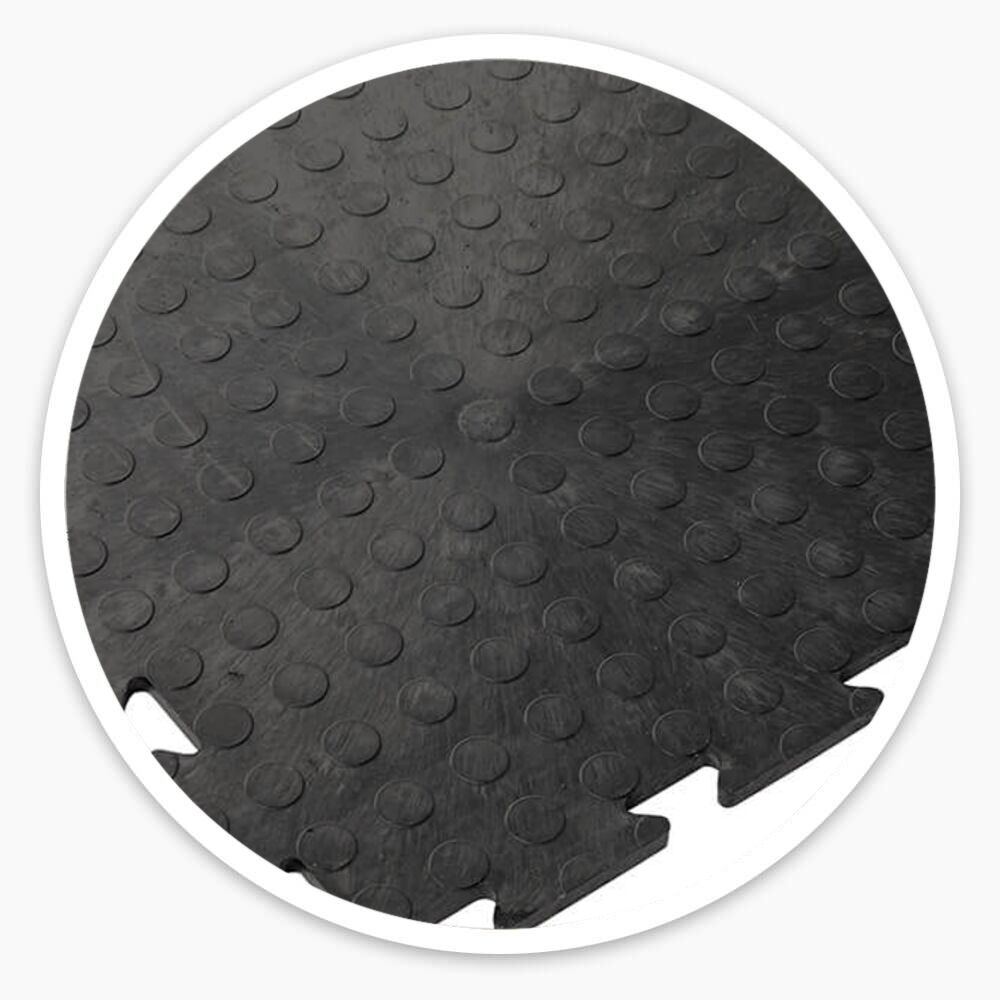

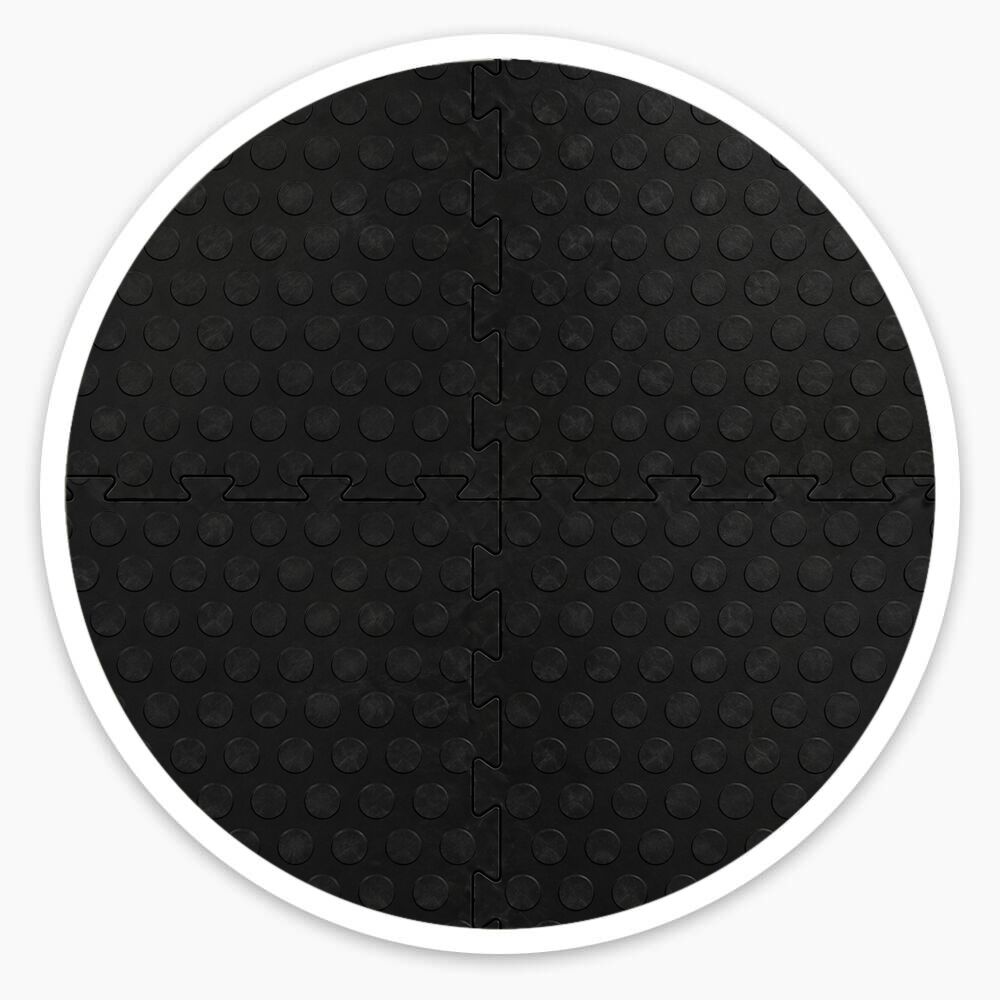

Slip-Resistant Dotted Surface
The raised dotted surface adds grip underfoot across the whole garage floor, and the vinyl resists oils, solvents and moisture, so drips from cars, tools and cleaning products won’t break it down. Spills wipe up, and the floor cleans with a damp mop or a scrub, keeping the garage tidy with little effort.

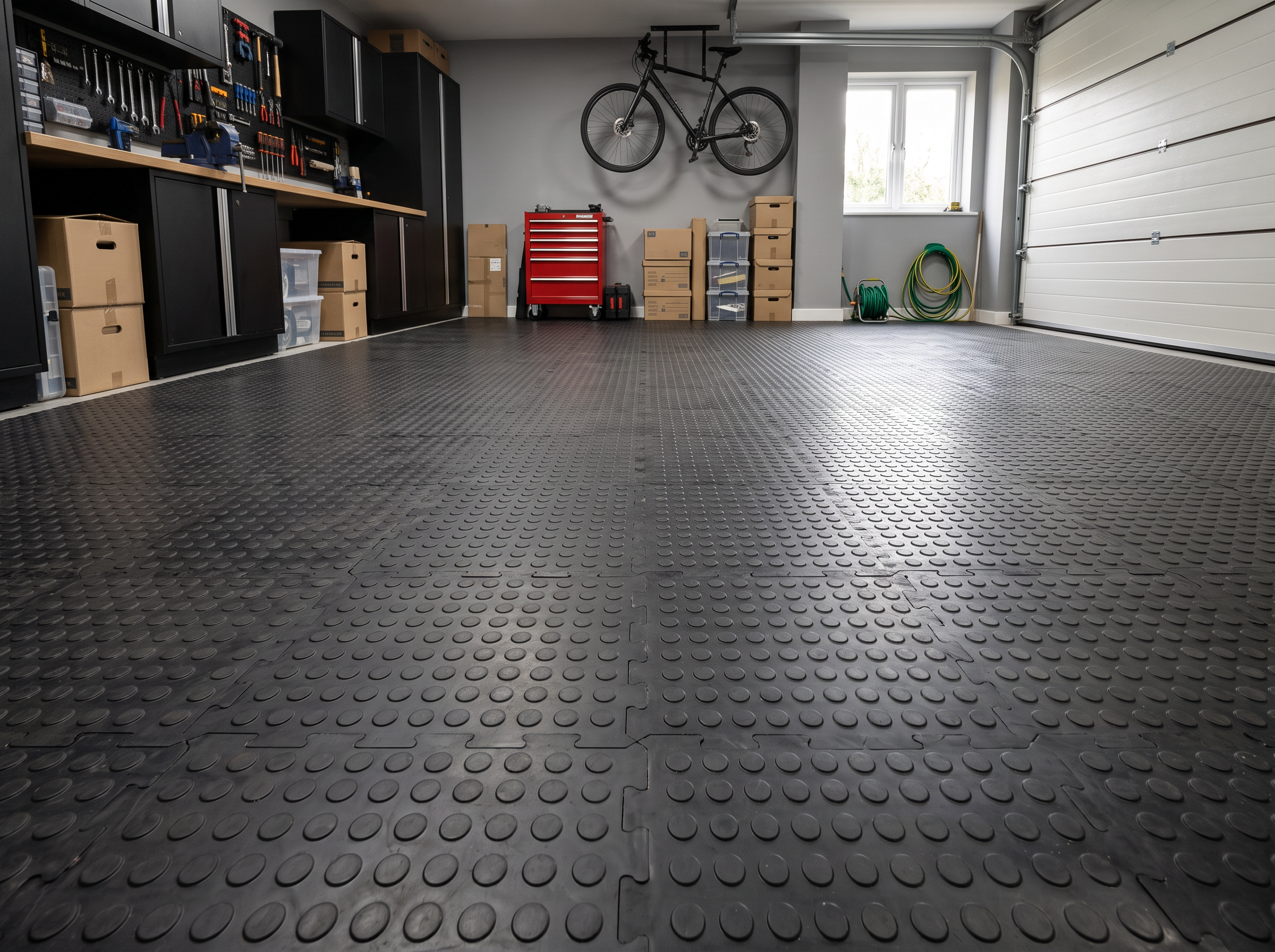

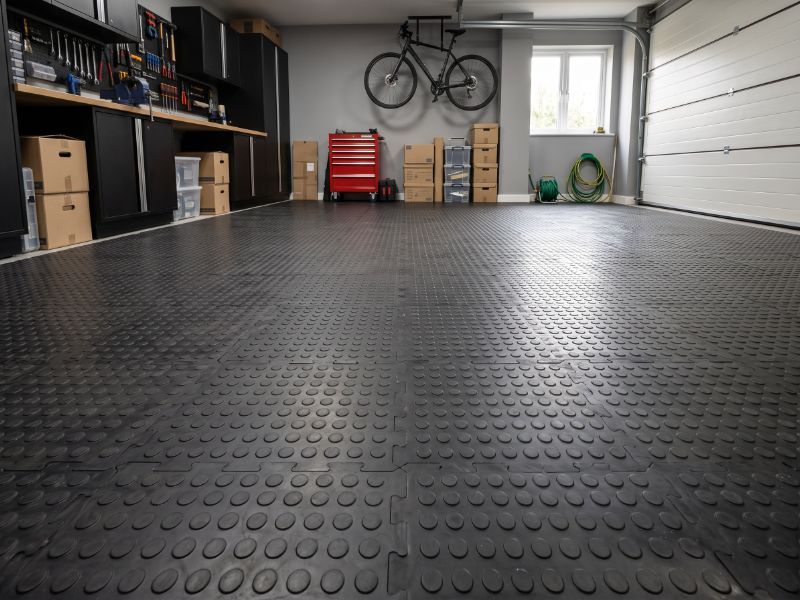

A Warmer and Quieter Floor
Covering bare concrete with 12mm vinyl tiles stops dust coming up, keeps heat in and cuts noise from footsteps and tools. The tiles also protect the floor beneath from abrasion, impact and wear, and the surface suits wheelchairs, trolleys and pushchairs rolling across it.
Fire Tested Vinyl
The tiles are fire tested to BS EN ISO 11925-2:2010 and BS EN ISO 9239-1, with a Bfl-s1 classification, so you know how the flooring performs in garages and workshops where tools, engines and electrical equipment are in use. Include the flooring in your fire risk assessment alongside the rest of the room’s fittings.
Why Choose This Dotted Double Garage Floor Tile Pack?
- 169 Tiles and 13 Edges – Covers a double garage of approx. 6.1m × 6.1m.
- Whole-Garage Pack Price – Costs less than buying the tiles singly.
- Made in the UK – Manufactured in the UK from recycled vinyl PVC.
- Up to 3.35 Tonnes Per Tyre – Load tested for forklifts, pallet trucks and stillages.
- Slip-Resistant Dots – The raised dotted surface adds grip underfoot.
- Resists Oils and Solvents – Spills wipe up without damaging the vinyl.
- Simple Jigsaw Fitting – Jigsaw joins tap together and lay loose on most hard floors.
- Fire Tested – Tested to BS EN ISO 11925-2:2010 and classed Bfl-s1.
Frequently Asked Questions
What comes in the double garage pack?
The pack contains 169 dotted interlocking tiles and 13 black edges, covering a double garage floor of approx. 6.1m × 6.1m. Each tile is 495 × 495mm overall, 12mm thick and weighs 1.8kg. Buying the pack costs less than ordering the same number of tiles singly.
Do I need to glue the tiles down?
Not on most floors: the tiles lay loose on any hard surface and lock together with the jigsaw join. The vinyl is flexible and expands and contracts with temperature, so glue them where they get direct sunlight or where heavy pallet trucks and forklifts turn tightly. Leave an expansion gap at walls and fixed points.
Will the pack fit my garage if it isn’t 6.1m × 6.1m?
Yes, the tiles cut to fit. Each one trims with a sharp utility knife to fit flush at walls and fixed points, so a smaller floor uses fewer whole tiles. For a larger floor, add single dotted tiles to the pack, and order them in one go, as colour can vary between batches.
Are edges included, and what do they do?

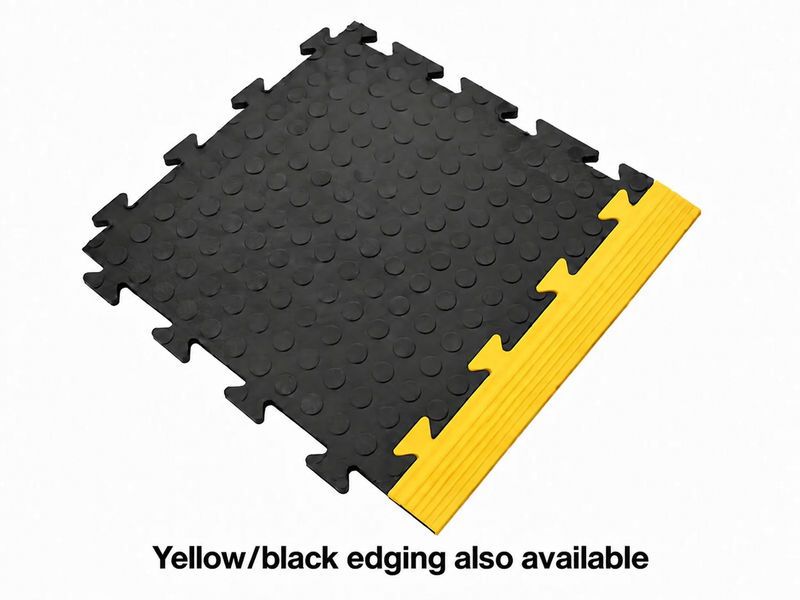

Yes, the pack includes 13 black edges to finish the open sides and give a neat transition to the bare floor. The corner is built into the edge design, so there’s no separate corner piece. More edges, in black or yellow and male or female, are sold separately as ramped floor tile edges.
Can I park and drive a car on these tiles?
Yes. The tiles are load tested to 3.35 tonnes per tyre and suit forklifts, pallet trucks, stillages and heavy loads, so parking a car and driving in and out of the garage are well within what they’re built for. Glue the tiles down where heavy trucks turn tightly, and check your own use with a risk assessment.
Are the tiles slippery when wet or oily?
The raised dotted surface is slip-resistant and slip tested to ASTM E303, but wipe up spills promptly. For areas that are often wet or oily, include the floor in your risk assessment and follow HSE guidance on slips and trips.
Why do some tiles look a slightly different colour?
Colour can vary slightly between batches of tiles, which doesn’t affect how they perform. The tiles are made in the UK from recycled vinyl PVC. Order all the tiles for one floor in a single go to keep the colour as even as possible.
Do you sell a double garage pack with a different surface?

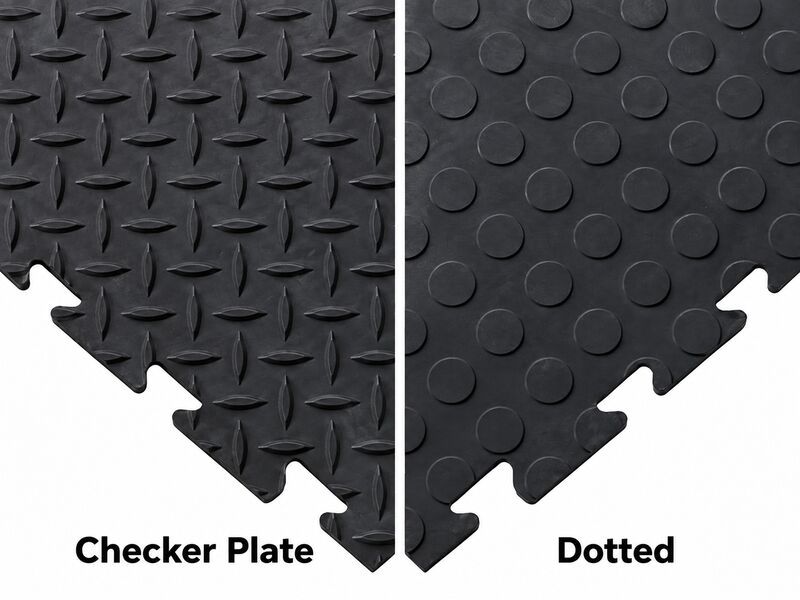

Yes. This pack has a dotted finish with raised dots for grip. For a raised chequer pattern, see our chequer plate double garage pack, which also locks together with a jigsaw join, lays loose or glued and is rated up to 1 tonne UDL.
