Dotted Interlocking Floor Tile - Black Vinyl - Up to 1 Tonne UDL

£3.49 Ex. VAT £4.19 Inc. VAT
£4.19 Inc. VAT £3.49 Ex. VAT

FREE DELIVERY

SKU CODE: TILE-3/K
In Stock (902 units)

Free Delivery - Next Working Day

Klarna available at checkout

Up to 1 Tonne UDL - Made in the UK - Load Tested for Forklifts - Slip-Resistant Dotted Finish - Free Next Day Delivery

  • Up to 1 Tonne UDL: Each tile takes up to 1 tonne of evenly distributed load.
  • Made in the UK: Manufactured in the UK from hard-wearing recycled vinyl PVC.
  • Load Tested for Forklifts: Suits fork trucks, pallet trucks, stillages and heavy loads.
  • Slip-Resistant Dotted Finish: Raised dots add grip underfoot in garages and workshops.
  • Fire Tested Vinyl: Fire resistance tested to BS EN ISO 11925-2:2010.
  • Interlocking Jigsaw Fit: Tiles tap together with a rubber mallet, with no special tools needed.
  • Oil and Solvent Resistant: Resists oils, solvents and moisture, so spills wipe up easily.
  • Loose Lay or Glued: Lays loose on most hard floors, or glue where forklifts turn tightly.
  • Cut to Fit: Trims with a sharp utility knife to fit around walls and fixed points.
  • 12mm Thick Tile: Each 12mm tile weighs 1.8kg, so it’s easy to carry and lay.
  • 12 × 495 × 495mm: Measures 12mm high, 495mm long and 495mm wide.
  • 1 Year Warranty: Backed by a one-year warranty.
  • Free Next Day Delivery: Get your tiles delivered free the next working day.
Quick Links:

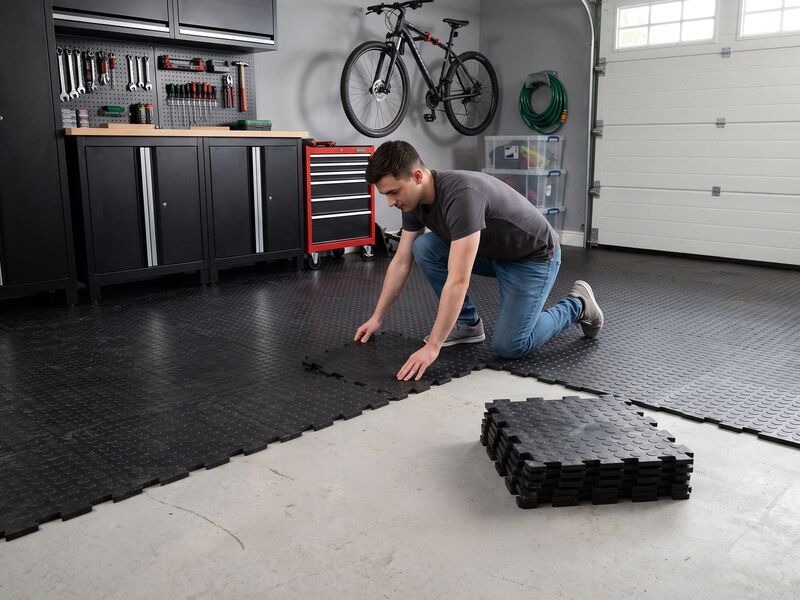

Man laying black Dotted Interlocking Floor Tiles across a home garage floor beside a stack of spare tiles

UK-Made Dotted Tiles for Garages and Workshops

Dotted interlocking tiles for garages, workshops, stores and loading areas. Made in the UK from recycled vinyl PVC, each 495 × 495mm tile is 12mm thick, takes up to 1 tonne UDL and locks into the next with a jigsaw join. The raised dots add grip underfoot, the tiles lay loose on any hard floor, and you order exactly the number your space needs.

Dotted Interlocking Floor Tile dimensions

Specification

MATERIAL
Recycled Vinyl PVC
HEIGHT
12mm
WIDTH
495mm
LENGTH
495mm
APPROX. LAID SIZE
470 × 470mm
TILES PER M²
Approx. 4.57
WEIGHT
1.8kg
COLOUR
Black
SURFACE FINISH
Dotted
LOAD CAPACITY
Up to 1 tonne/tile (UDL)
TYRE LOAD
Up to 3.35 tonnes/tyre
INSTALLATION
Interlocking jigsaw
FITTING METHOD
Loose or glued
CUSTOMISATION
Cut to fit
FLOOR TYPE
Hard floor surfaces
USE
Indoor and outdoor
FIRE RESISTANCE
BS EN ISO 11925-2:2010
FIRE CLASSIFICATION
Bfl-s1 (BS EN ISO 9239-1)
SLIP RESISTANCE
ASTM E303
WARRANTY
1 year
COMMODITY CODE
40169100
GTIN
05061036692343

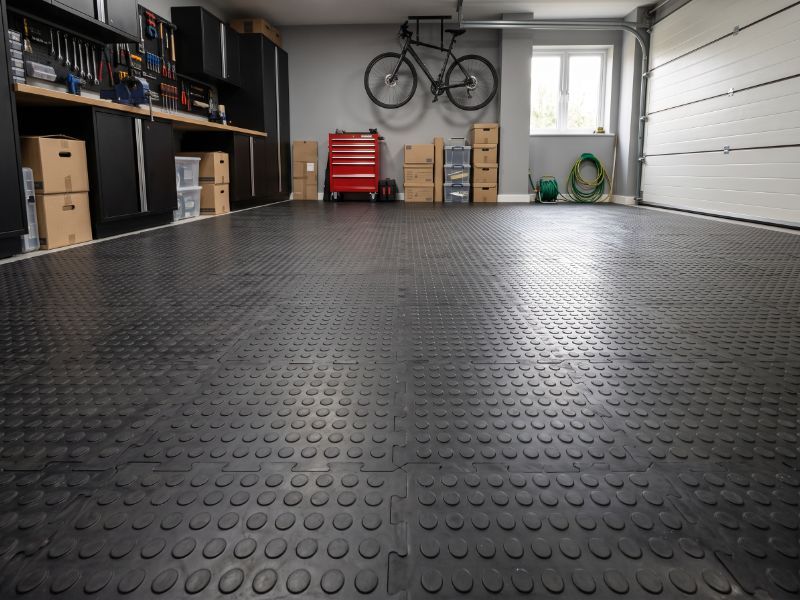

Finished garage floor covered in black Dotted Interlocking Floor Tiles, raised dots clear in the foreground

Slip-Resistant Dotted Surface

The raised dotted profile adds grip underfoot for people walking and working in garages, workshops, stores and loading areas. Slip tested to ASTM E303, the 12mm recycled vinyl gives a hard-wearing, durable surface where vehicles, tools and machines are in use.

Up to 1 Tonne UDL Per Tile

Each tile takes up to 1 tonne of evenly distributed load and up to 3.35 tonnes per tyre, and is load tested for fork trucks, pallet trucks, stillages and heavy loads. That covers a car parked in a home garage and driven in and out, as well as wheeled traffic in commercial workshops, stores and loading areas.

Two black vinyl dotted interlocking floor tiles, one showing the coin-dot top and one the grid underside that supports heavy loads

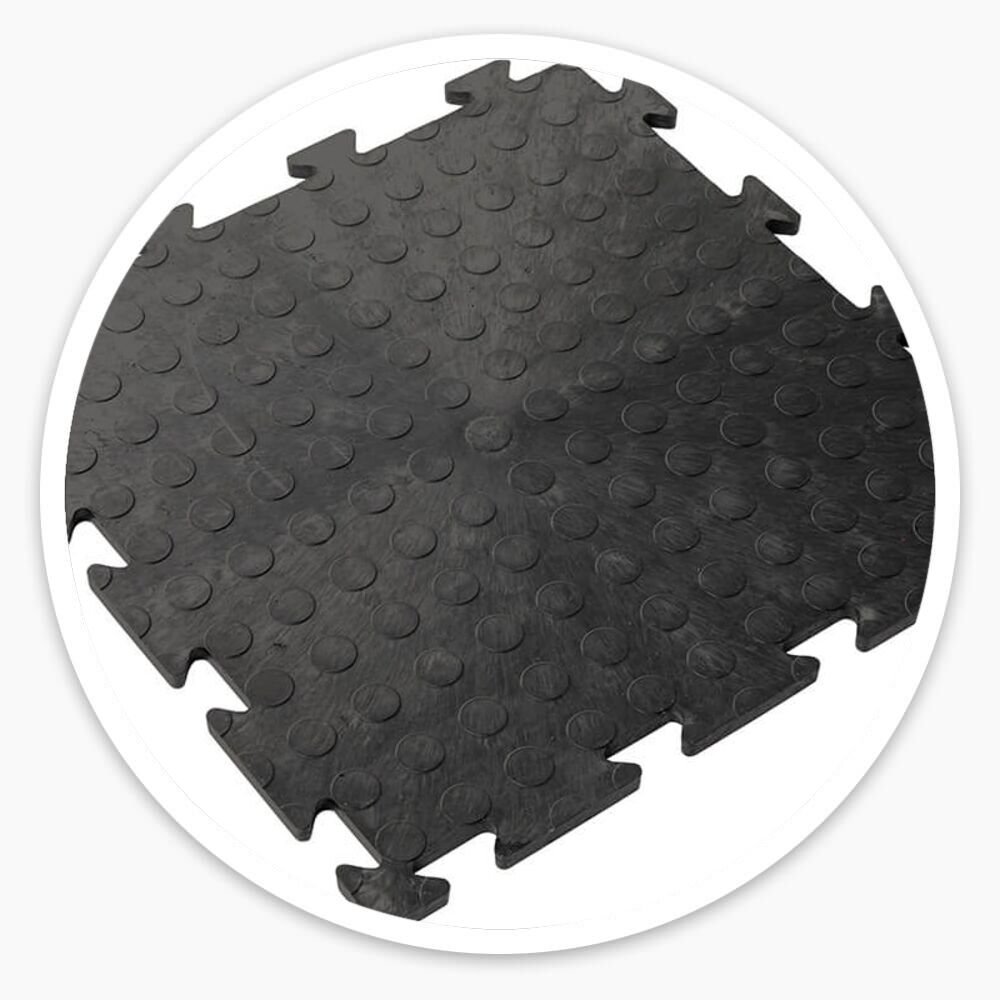

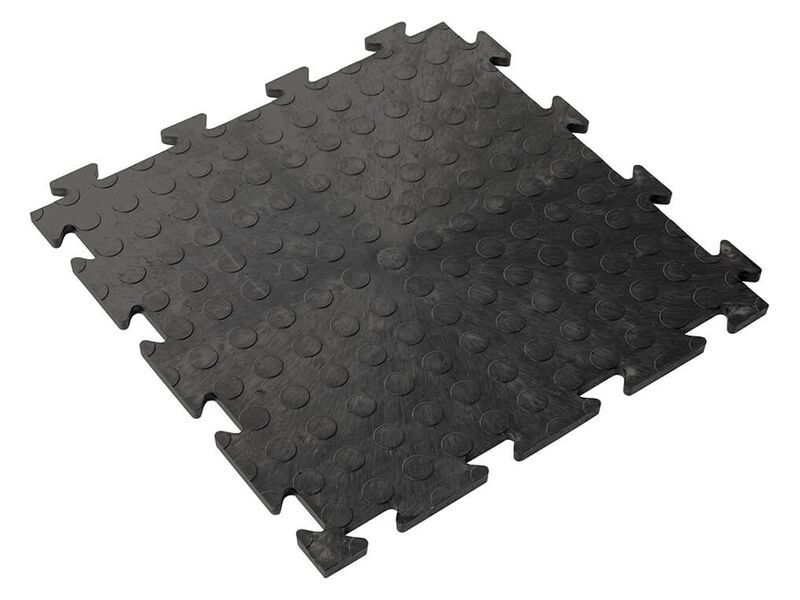

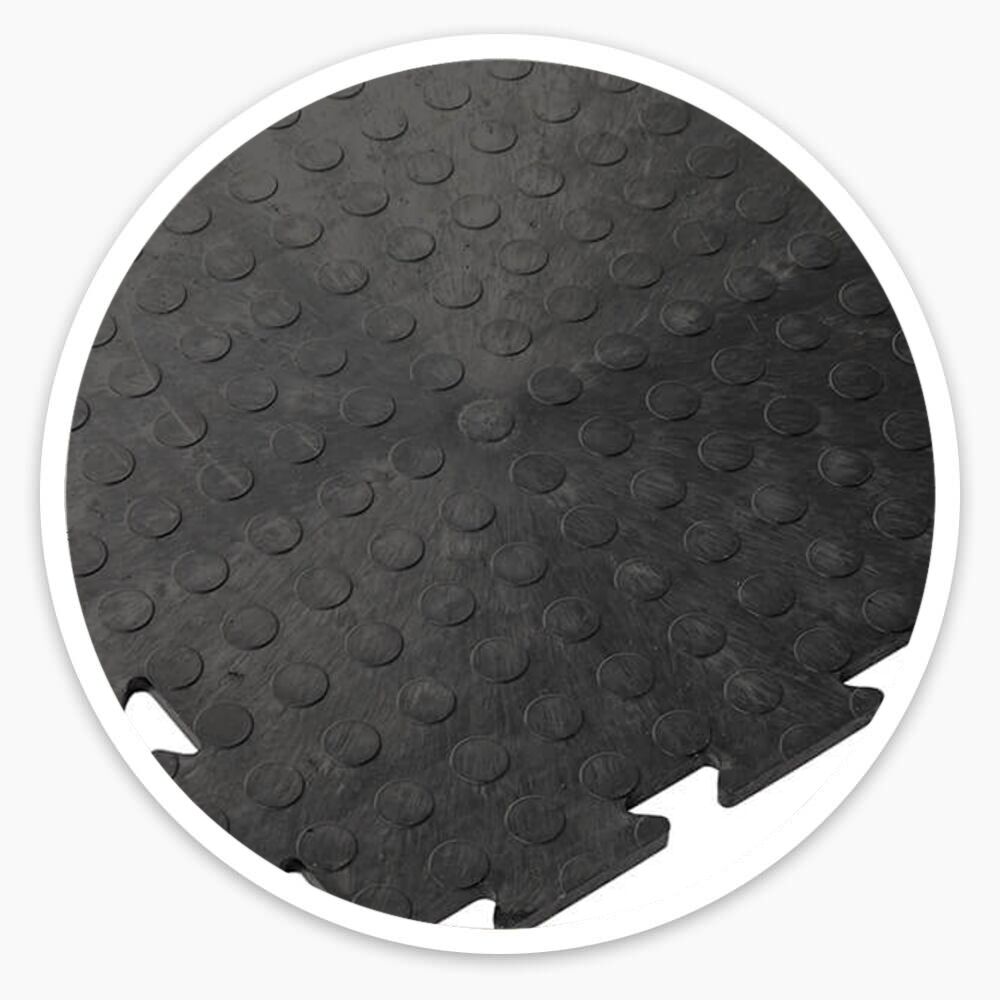

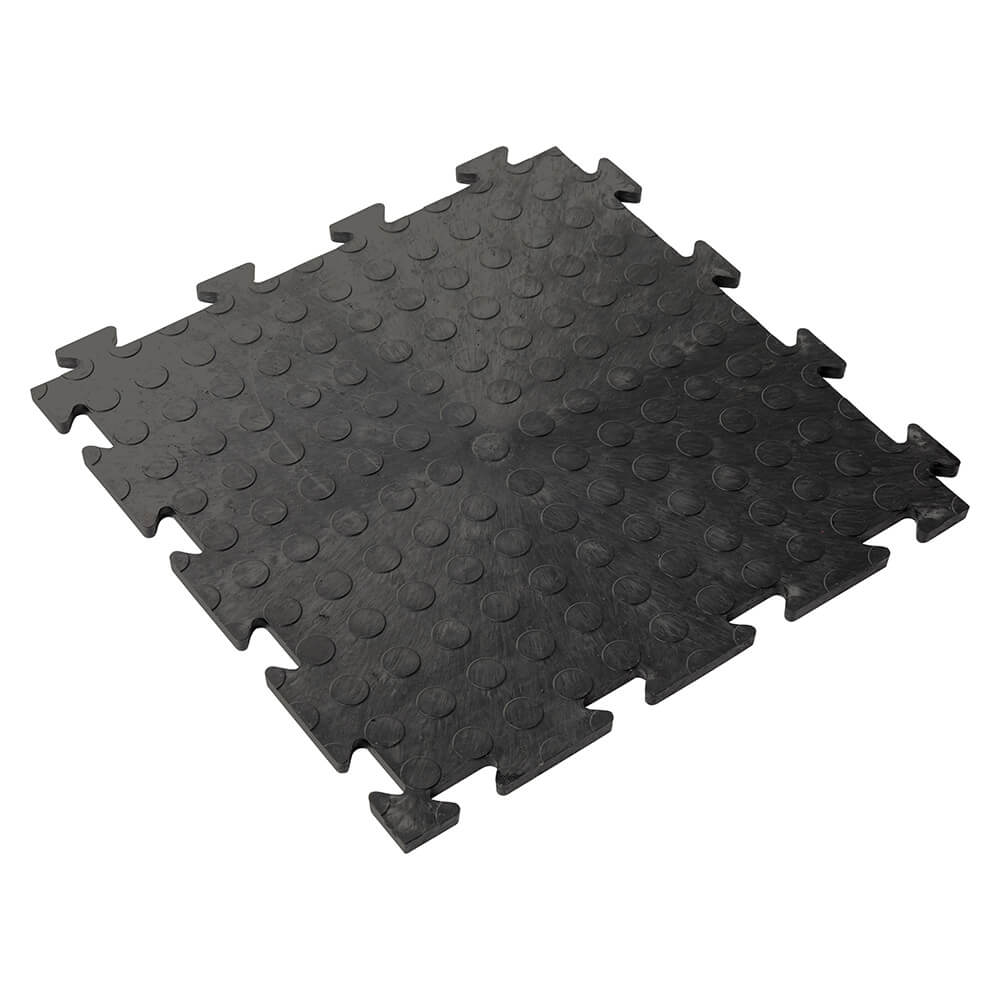

Dotted Interlocking Floor Tile in black recycled vinyl, showing its raised studs, jigsaw edges and faint marbled flecks

Made in the UK From Recycled PVC

Each black tile is made in the UK from recycled vinyl PVC, giving facilities teams and home users a hard-wearing floor that puts waste material to use. Colour can vary slightly between batches, so order all the tiles for one floor in a single go.

Quick Jigsaw Fitting

Let the tiles acclimatise for 24 hours, then lay them loose on a swept hard floor, all the same way round: the arrow-shaped corner shows which way. Start at the centre and tap the jigsaw joins together with a rubber mallet, leaving an expansion gap at walls. Cut the edge tiles with a sharp utility knife, and glue only in direct sunlight or where forklifts turn tightly.

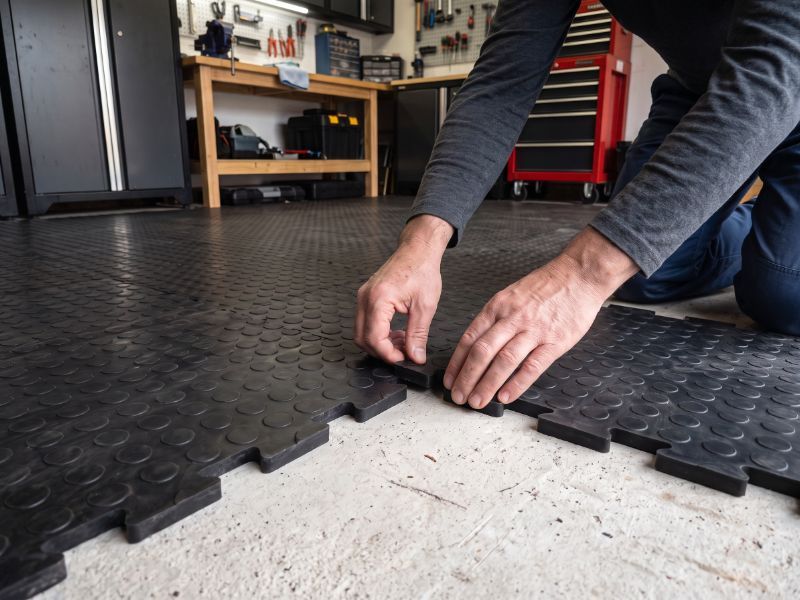

Hands pressing the jigsaw joins of black Dotted Interlocking Floor Tiles together on a garage floor

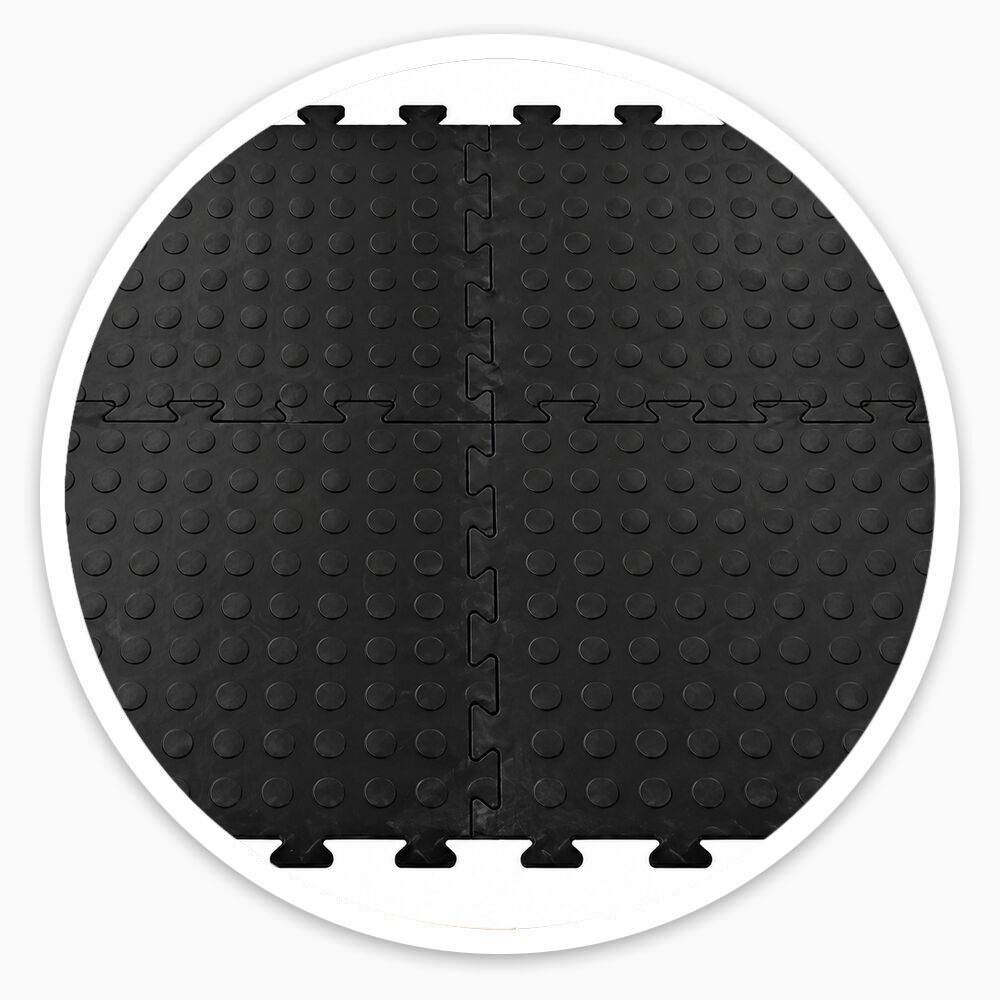

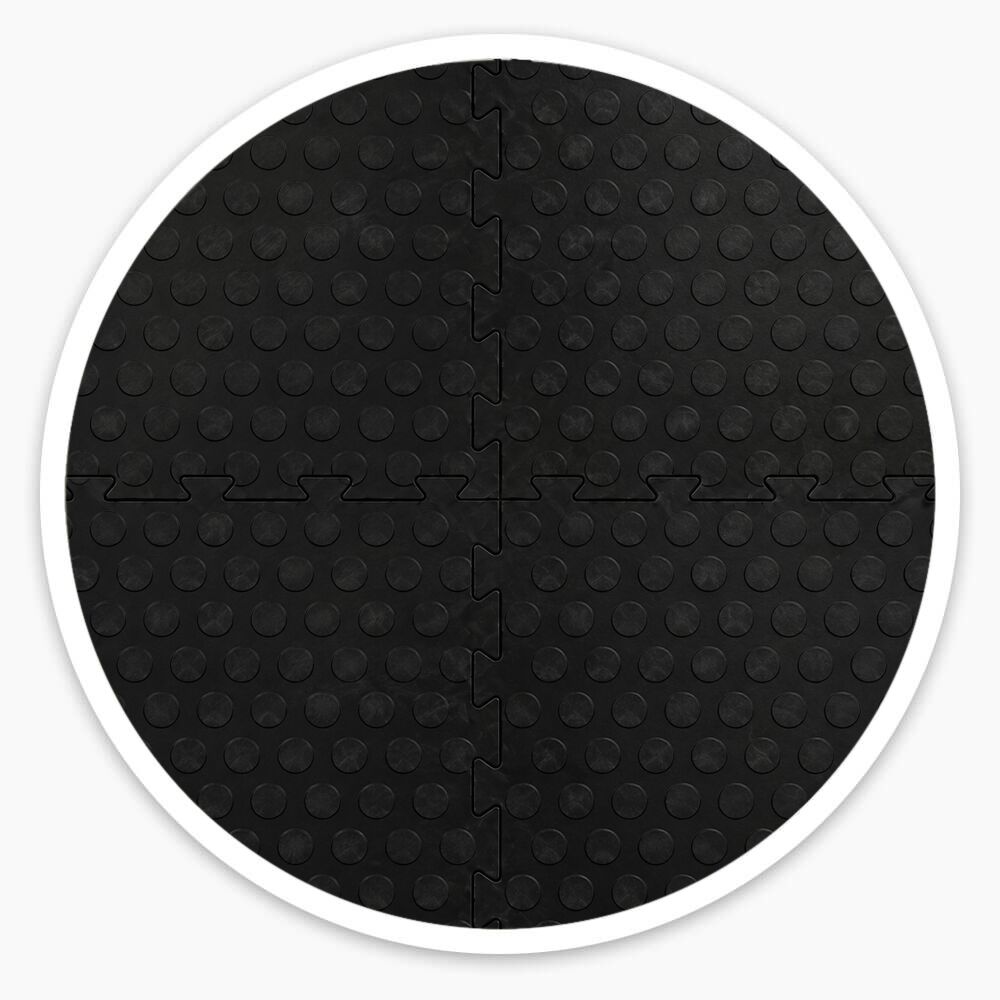

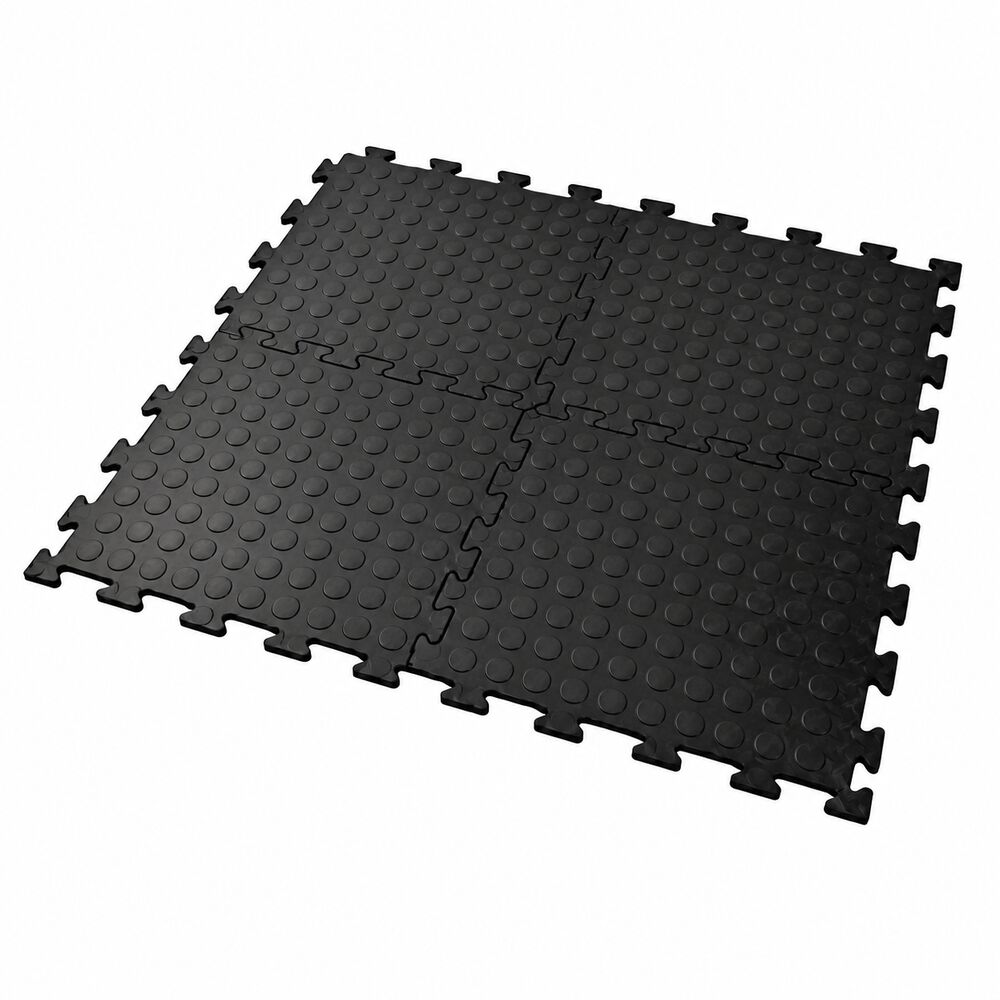

Four black vinyl Dotted Interlocking Floor Tiles joined together, showing the raised coin pattern and jigsaw edges

Resists Oils, Solvents and Moisture

The vinyl withstands everyday exposure to oils, solvents and moisture, so drips from cars, machines and cleaning products won’t break it down. Spills wipe up, and the floor cleans with a damp mop or a scrub, keeping garages, workshops and stores tidy with little effort.

A Warmer and Quieter Floor

Covering bare concrete with 12mm vinyl tiles stops dust coming up, insulates the floor and cuts noise from footsteps and equipment. The surface suits wheelchairs, trolleys and pushchairs, and because the tiles are modular, a worn or damaged one can be lifted and replaced without renewing the whole floor.

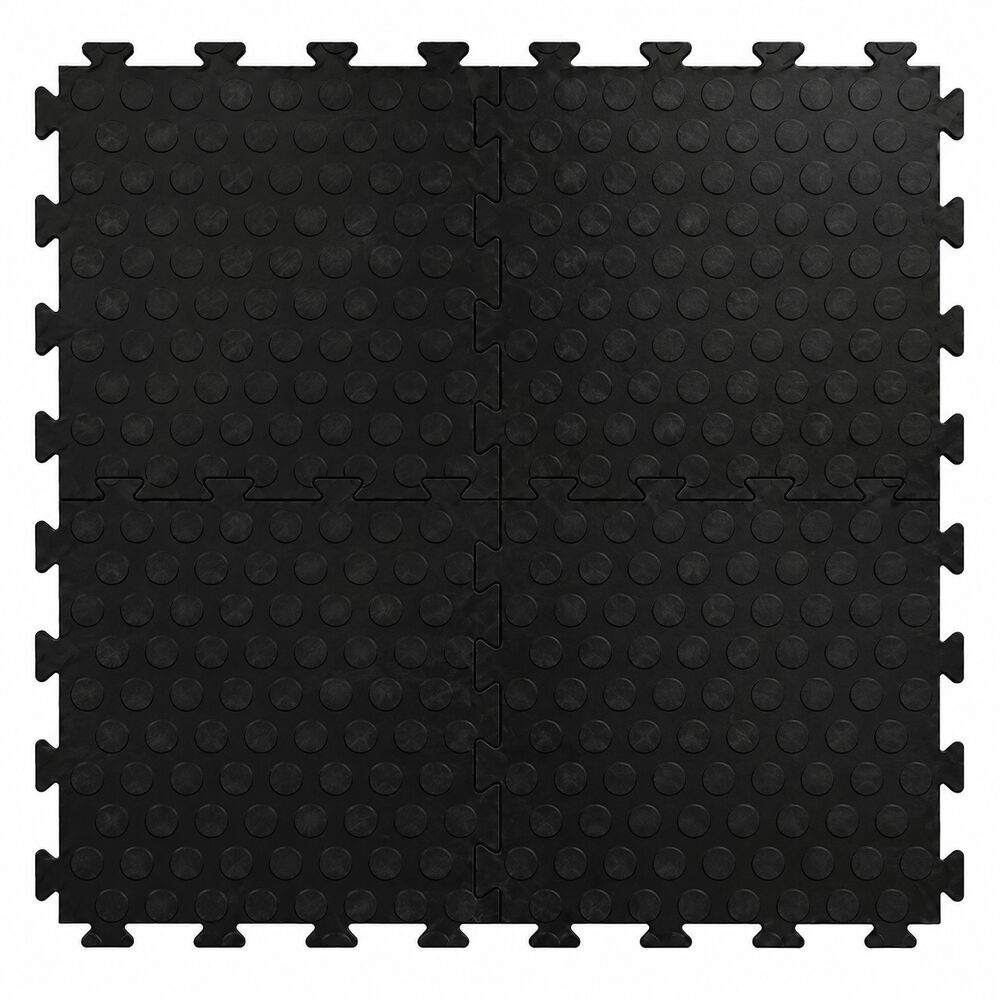

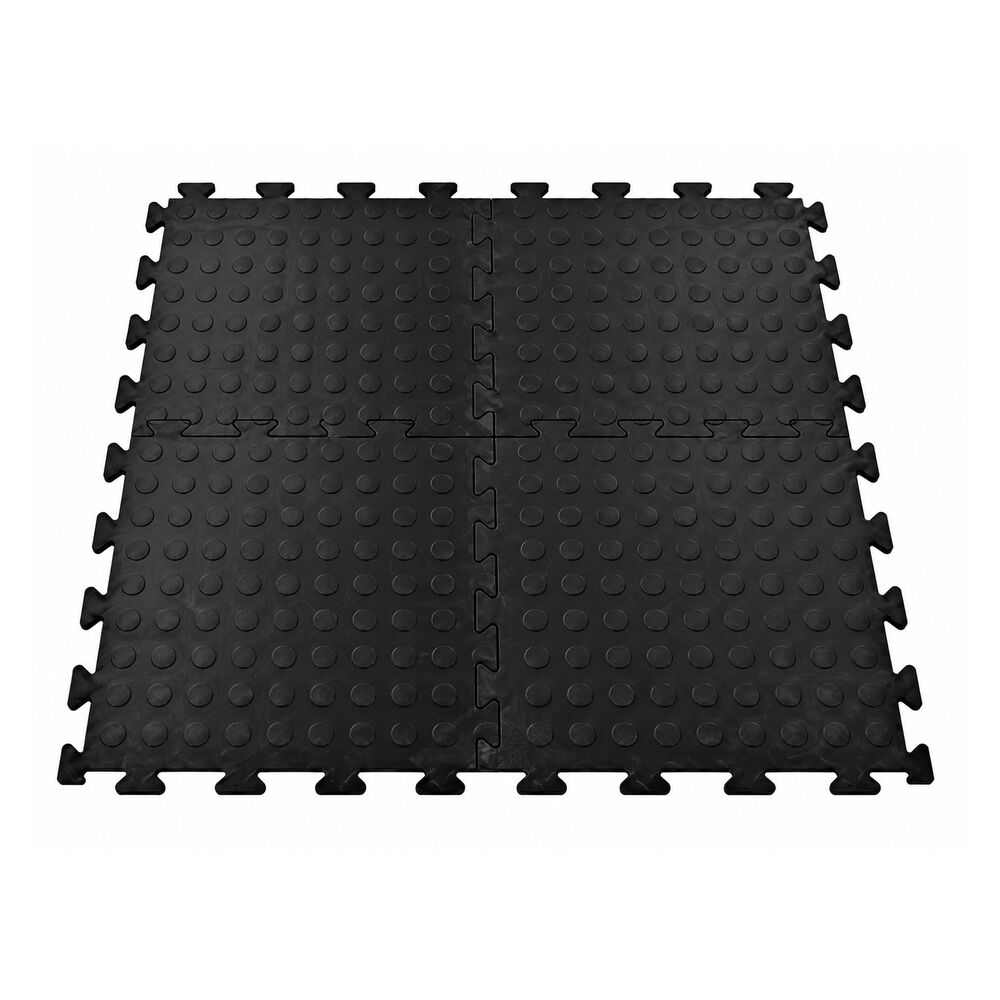

Four black Dotted Interlocking Floor Tiles locked together, showing how modular tiles can be lifted and replaced

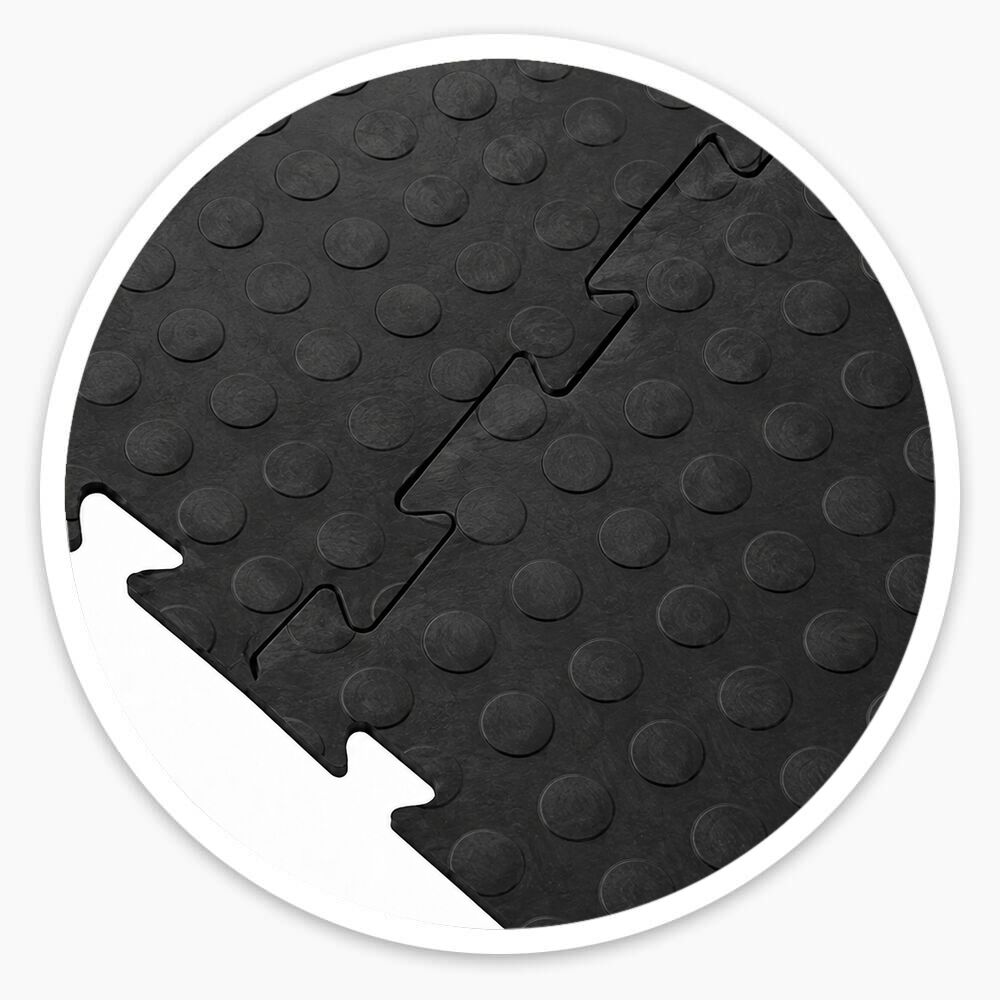

Close-up of the jigsaw join between two black Dotted Interlocking Floor Tiles

Fire Tested Vinyl

The tiles are fire tested to BS EN ISO 11925-2:2010 and classed Bfl-s1 to BS EN ISO 9239-1, adding reassurance in garages and workshops where tools, engines and electrical equipment are in use. Include the flooring in your fire risk assessment alongside the rest of the room’s fittings.

Why Choose This Dotted Interlocking Floor Tile?

  • Up to 1 Tonne UDL – Takes heavy loads spread evenly across every tile.
  • Made in the UK – Manufactured in the UK from recycled vinyl PVC.
  • Load Tested – Tested to 3.35 tonnes per tyre for forklifts and pallet trucks.
  • Dotted Surface – Raised dots add grip underfoot in busy working areas.
  • Fire Tested – Classed Bfl-s1 for peace of mind in workshops.
  • No Special Tools – Jigsaw joins tap together and lay loose on most hard floors.
  • Resists Oils and Solvents – Spills wipe up without damaging the vinyl.
  • Cut to Fit – Trims with a utility knife to fit around walls.
Worker in tan safety boots standing on black Dotted Interlocking Floor Tiles on a white background

Frequently Asked Questions

  • Where can these dotted floor tiles be used?

    They suit garages, workshops, stockrooms, stores and light industrial spaces with hard floors, indoors or outdoors. Each tile takes up to 1 tonne UDL and the dotted surface adds grip, making a practical covering where durability, easy cleaning and floor protection matter.

  • Do I need to glue the tiles down?

    Not on most floors: the tiles lay loose on any hard surface and lock together with the jigsaw join. The vinyl is flexible and expands and contracts with temperature, so glue them where they get direct sunlight or where heavy pallet trucks and forklifts turn tightly. Leave an expansion gap at walls and fixed points.

  • How many tiles do I need for my floor?

    Each tile covers approx. 470 × 470mm once laid, so you need approx. 4.57 tiles per m² of floor. Add extra for cut tiles at the walls and order in one go, as colour can vary between batches. For a whole garage, see our dotted single garage pack.

  • Are edges included with the tiles?

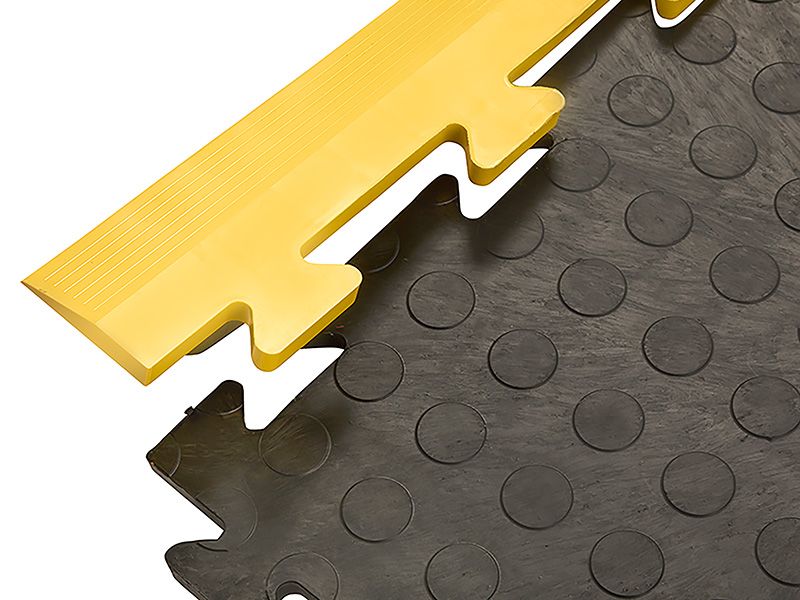

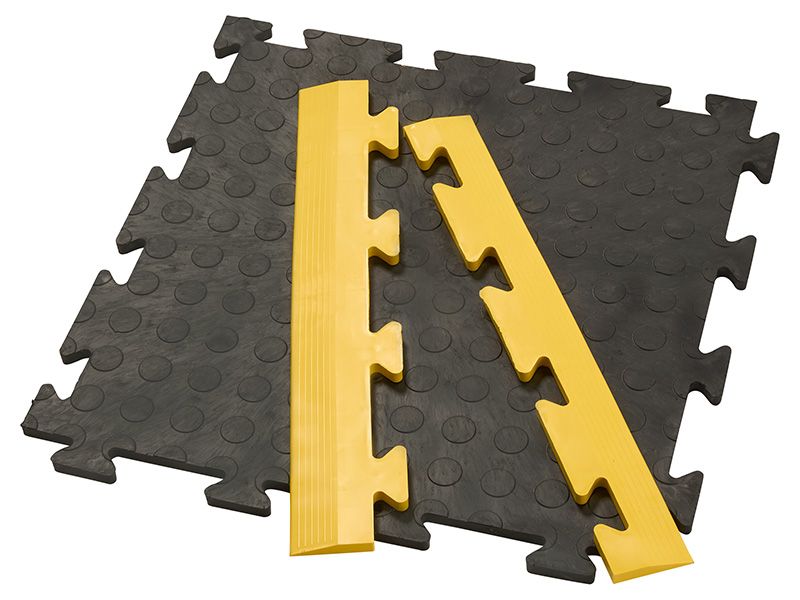

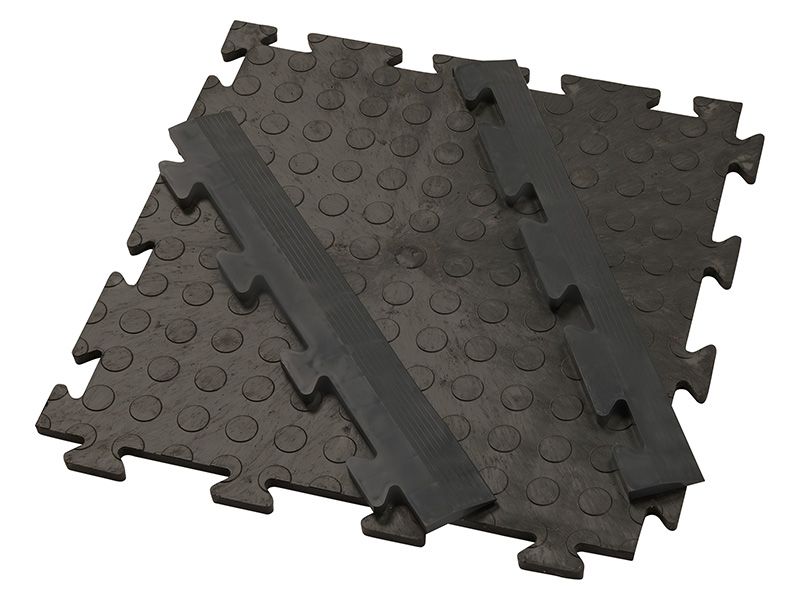

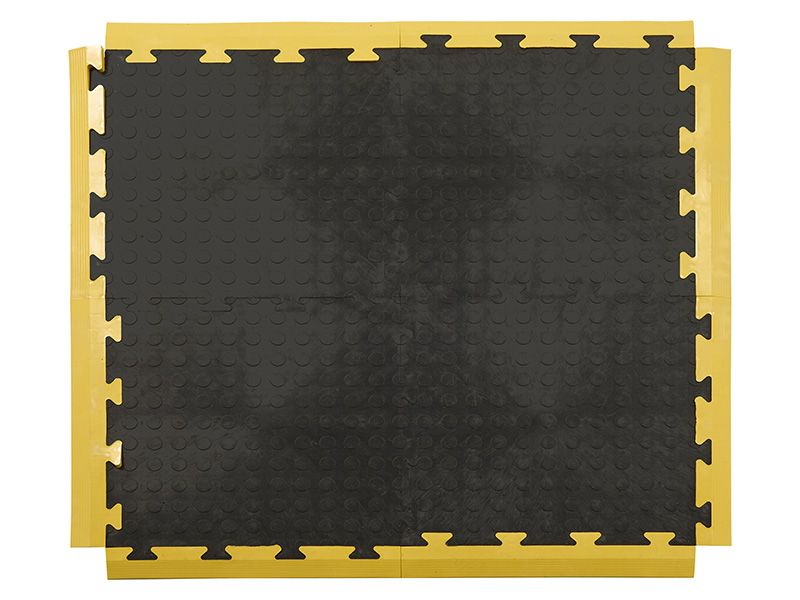

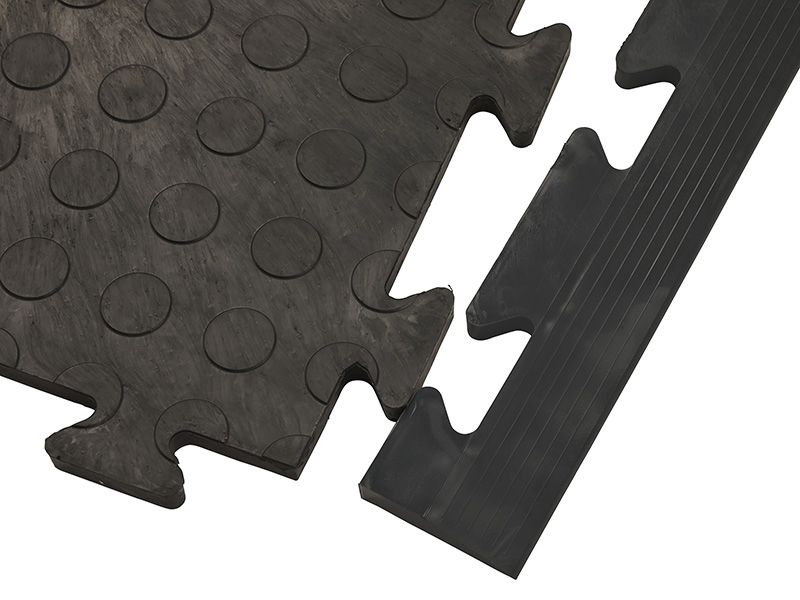

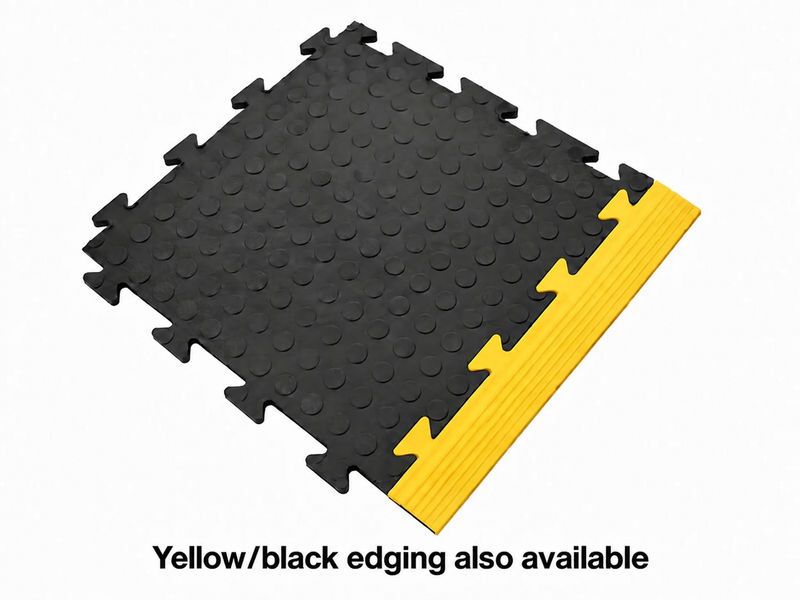

    No, ramped edges are sold separately, in male or female and in black or yellow. The corner is built into the edge design, so there’s no separate corner piece. The edges ramp down to the floor for a neat, finished border.

  • Can I park a car or use a forklift on these tiles?

    Yes. Each tile takes up to 3.35 tonnes per tyre and 1 tonne UDL, and the tiles are load tested for fork trucks, pallet trucks, stillages and heavy loads, so parking a car and driving in and out of a garage are well within what they’re built for. Glue them down where heavy trucks turn tightly, and check your own use with a risk assessment.

  • Are the tiles slippery when wet or oily?

    The raised dotted surface adds grip, and the tiles are slip tested to ASTM E303, but wipe up spills promptly. For areas that are often wet or oily, include the floor in your risk assessment and follow HSE guidance on slips and trips.

  • Why do some tiles look a slightly different colour?

    Colour can vary slightly between production batches of these UK-made recycled vinyl PVC tiles. It doesn’t affect how the tiles perform. Order all the tiles for one floor in a single go to keep the colour as even as possible.

  • Do you sell interlocking tiles with a different surface?

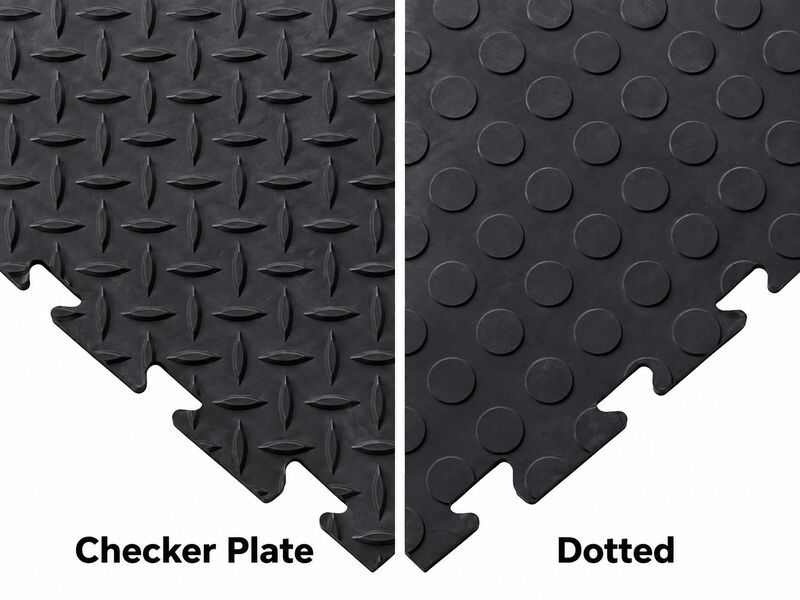

    Yes. This tile has a raised dotted finish, suited to garages, workshops and stores. For a raised chequer pattern that’s also load tested for heavy use, see our chequer plate floor tiles, which also lock together with a jigsaw join and lay loose or glued.
