Vehicle Impact Bollard - Bolt Down Galvanised Steel - 170mm Pole Diameter
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
170mm Pole Diameter - 1005mm Overall Height - 300mm Base Plate - Galvanised Steel - High-Visibility Yellow - Free Next Day Delivery
- 170mm Pole Diameter: Solid post guards walls, doors and racking from vehicle knocks.
- 1005mm Overall Height: Stands clearly in view of drivers manoeuvring nearby.
- 300mm Base Plate: Wide flanged base plate keeps the post steady once bolted down.
- 170mm Bolt Hole Spacing: Bolts straight down onto an existing hard floor with no digging.
- Fixing Bolts Supplied: Bolts are included for a straightforward bolt-down fit.
- Hot-Dip Galvanised Steel: Zinc layer protects the steel from rust and corrosion outdoors.
- Yellow Powder-Coat Finish: Bright finish catches drivers’ eyes and adds weather protection.
- Indoor and Outdoor Use: Suits loading bays, warehouses, yards and busy traffic corridors.
- 1005 × 300 × 300mm: Measures 1005mm high, 300mm long and 300mm wide.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your bollard delivered free the next working day.
Bolt-Down Protection for Loading Bays and Doors
This bolt-down vehicle impact bollard guards walls, doorways, racking and people from accidental vehicle knocks in loading bays, warehouses and busy yards. Its 170mm galvanised steel pole stands 1005mm high on a 300mm base plate, and the bright yellow finish keeps it in drivers’ line of sight as they manoeuvre.
Specification
OVERALL HEIGHT- 1005mm
POLE DIAMETER- 170mm
- BASE DIAMETER
- 300mm
BOLT HOLE DISTANCE- 170mm
WEIGHT- 15.05kg
- OVERALL WIDTH
- 300mm
OVERALL LENGTH- 300mm
- DIAMETER
- 170mm
COLOUR- Yellow
MATERIAL- Galvanised Steel
FEATURES- Bolt Down
WARRANTY- 1 year
GTIN- 0723172231934

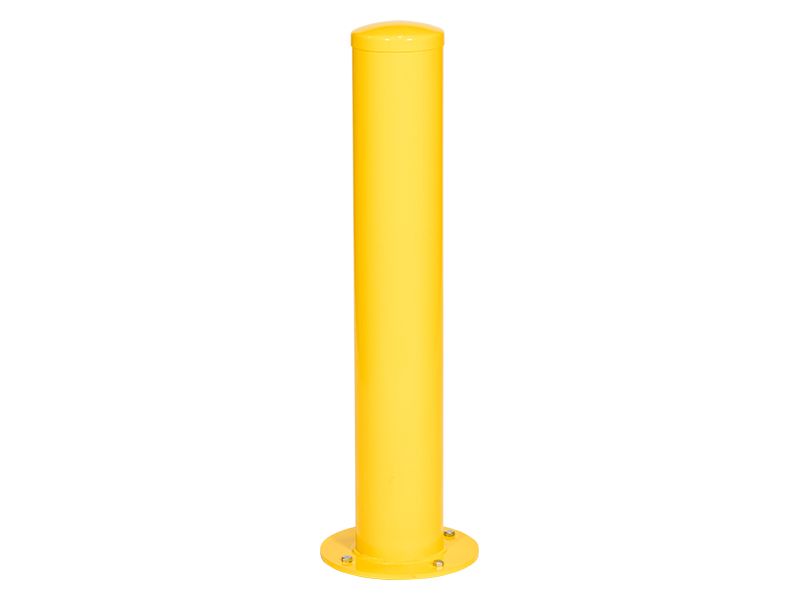

Solid 170mm Galvanised Steel Post
The 170mm pole diameter gives a solid, clearly visible post that protects building corners, door frames and equipment from accidental low-speed knocks. Built from galvanised steel and weighing 15.05kg, it suits warehouses, loading bays and yards where forklifts and vans move close to walls and staff.
Hot-Dip Galvanised Against Rust
The steel is hot-dip galvanised, which bonds a layer of zinc to the surface to protect it from rust and corrosion. That makes the bollard a practical choice for open yards, car parks and loading bays exposed to rain and weather all year, with little upkeep beyond an occasional clean.
High-Visibility Yellow Powder Coat
A bright yellow powder-coat finish over the galvanising makes the bollard easy to spot from a vehicle cab, helping drivers steer clear of structures and pedestrians. The coating also adds a second layer of protection against the weather, so the colour and the steel underneath both last longer outdoors.

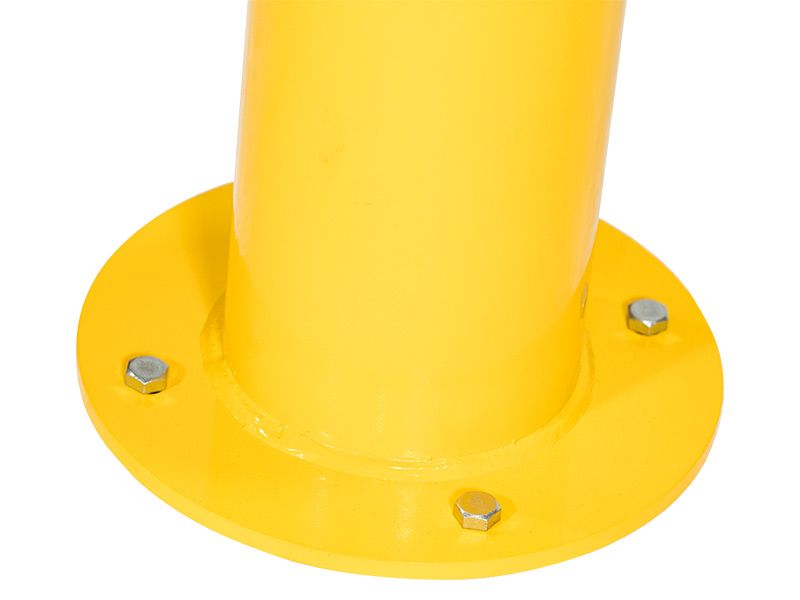

Stable 300mm Base Plate
The 1005mm post sits on a wide 300mm flanged base plate that spreads the load across the floor. Once bolted down, the broad footprint keeps the bollard steady and upright in busy traffic areas, resisting tipping or shifting when it takes an accidental knock.
Bolt Down With 170mm Hole Spacing
The flanged base bolts straight down onto an existing hard floor, so there’s no digging or concrete to pour. Fixing bolts are supplied, and the 170mm bolt hole spacing lets fitters mark out and drill the floor before the bollard arrives, keeping downtime short.

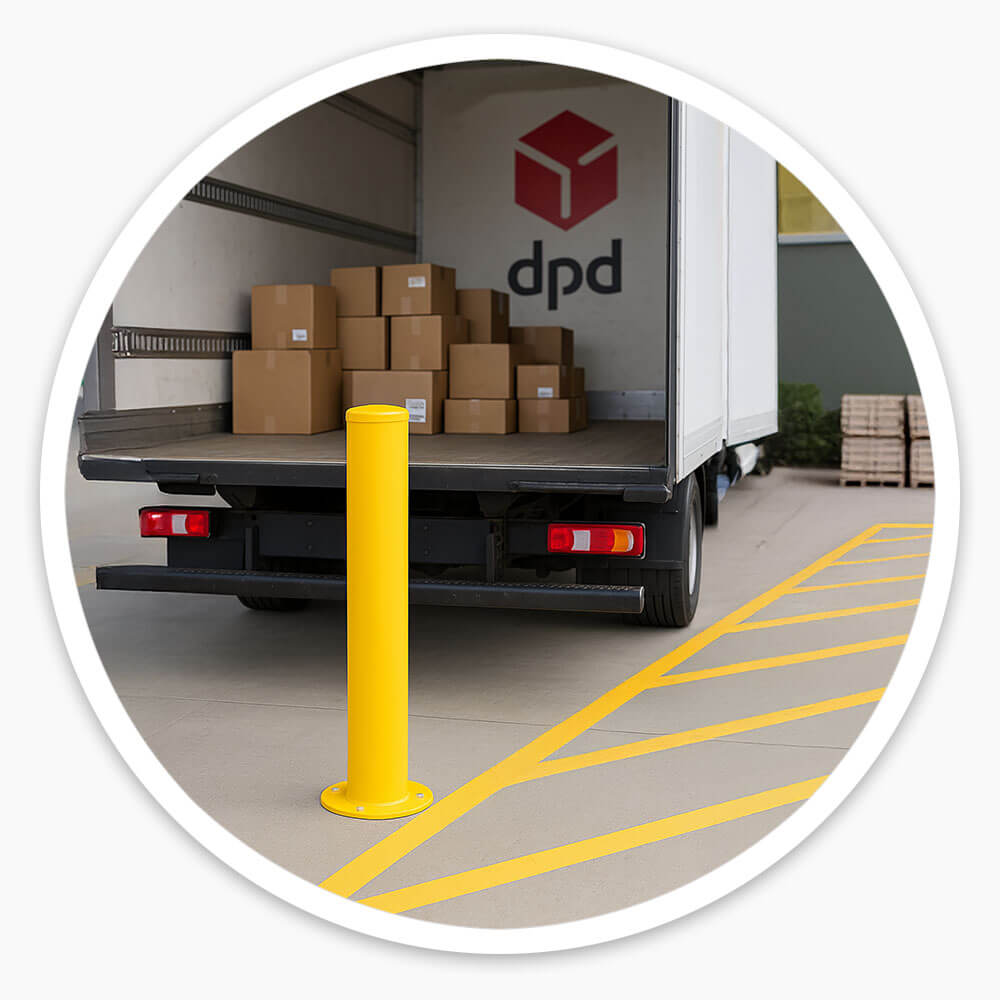

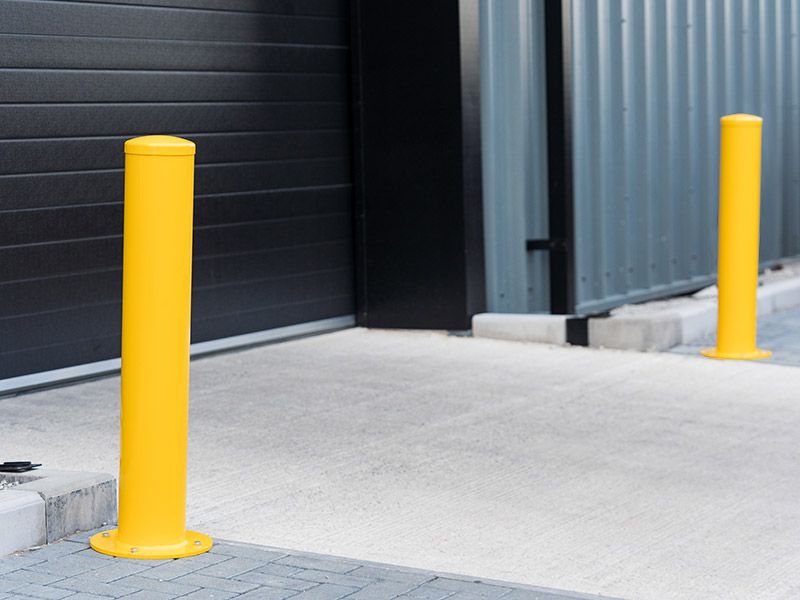

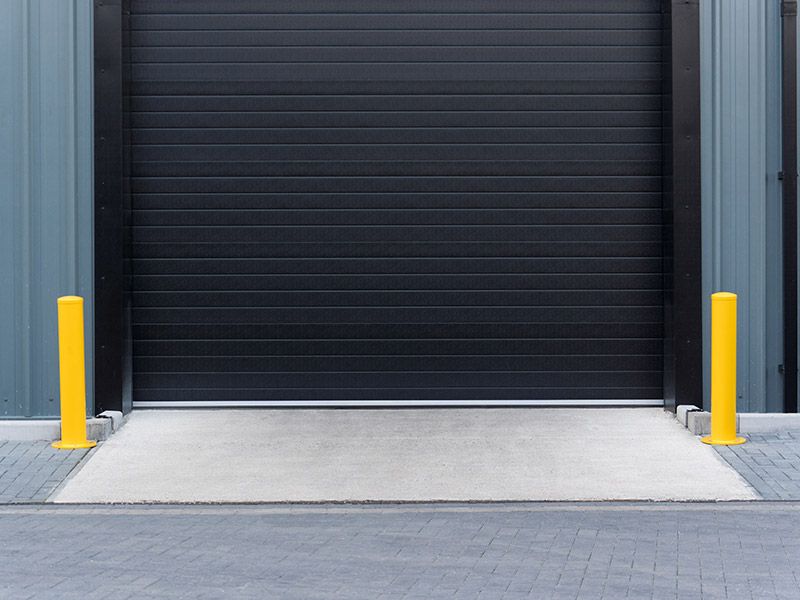

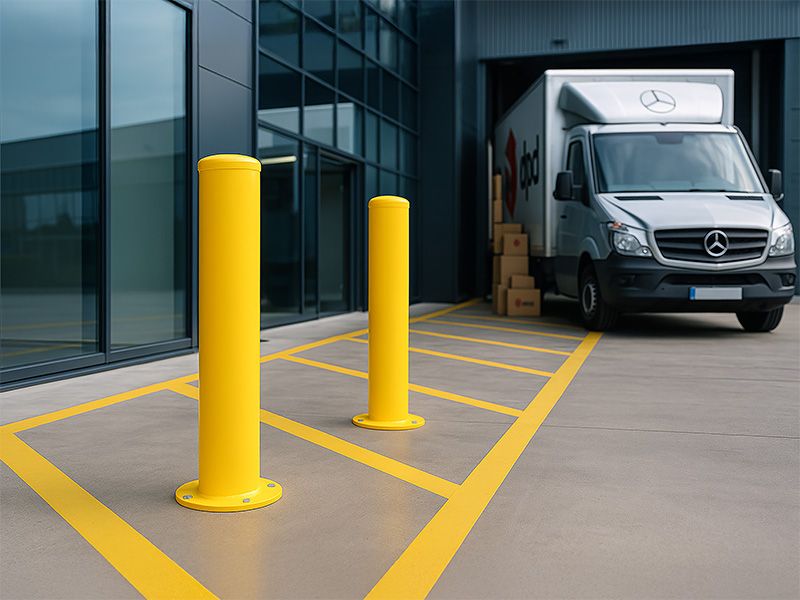

Made for Loading Bays and Doorways
Place the bollard where vehicles and buildings meet: beside roller shutter doors, at the corners of loading bays, along racking ends and at the edges of busy traffic corridors. It suits light to heavy-duty sites, from vans in a yard to forklifts moving through a warehouse.

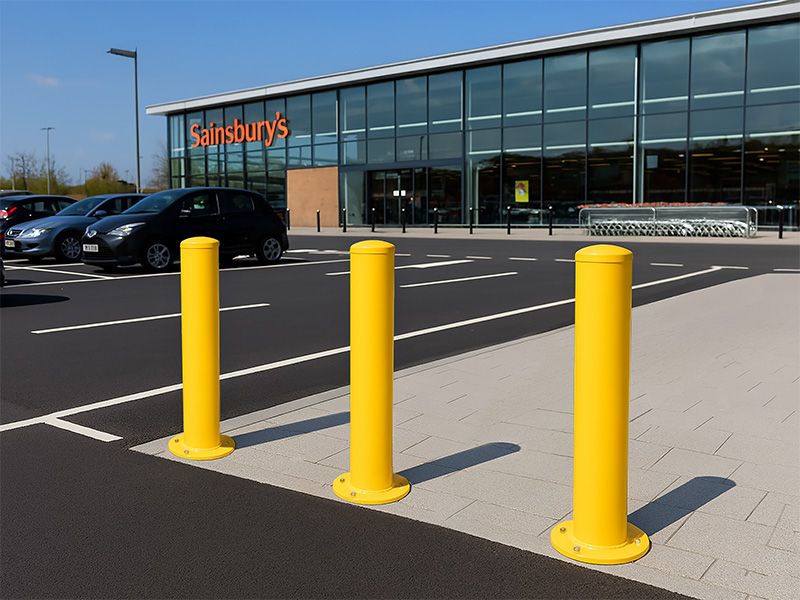

Indoor and Outdoor Fitting
The bollard works inside warehouses and outside in yards and car parks, and bolts down onto concrete, asphalt or tiled surfaces. Order several to guard a run of doors or a full loading bay, with free next day delivery when a bollard needs to go in quickly.
Why Choose This Vehicle Impact Bollard?
- 170mm Pole Diameter – Solid post guards walls, doors and equipment from knocks.
- 1005mm Overall Height – Stands clearly in view of drivers manoeuvring nearby.
- 300mm Base Plate – Wide flanged base keeps the post steady once bolted down.
- Hot-Dip Galvanised Steel – Zinc layer resists rust indoors and out.
- High-Visibility Yellow – Bright powder coat helps drivers steer clear.
- Simple Bolt-Down Fitting – Fixing bolts are supplied and no digging is needed.
- 1 Year Warranty – Backed by a one-year warranty.
- Free Next Day Delivery – Order before 4pm and it arrives the next working day.
Frequently Asked Questions
Is this bollard crash rated or impact tested?
No, this bollard has no crash or impact rating. It is designed to mark out space and protect walls, doors and equipment from accidental low-speed knocks, not to stop hostile vehicles. Base your choice of barrier on a site risk assessment and HSE guidance on workplace transport.
Will the bollard rust if it’s fitted outdoors?
It is built to resist rust outdoors. The steel is hot-dip galvanised, giving it a protective zinc layer, and then finished in a yellow powder coat that adds a second barrier against rain and weather. An occasional clean keeps the finish bright and visible.
Are fixing bolts included?
Yes, fixing bolts are supplied with the bollard. It has a flanged 300mm base plate that bolts straight down onto an existing hard floor, so there’s no digging or concrete to pour.
What surface can I bolt the bollard to?
It bolts down onto a solid hard surface such as concrete, asphalt or tiles, indoors or outdoors. Make sure the floor is sound enough to hold the fixings, and ask a qualified installer if you are unsure about the floor’s condition.
What are the base plate size and bolt hole spacing?
The base plate is 300mm in diameter and the bolt holes are 170mm apart. The bollard stands 1005mm high with a 170mm pole diameter and weighs 15.05kg, so fitters can mark out and drill the floor before it arrives.
Do you have a lighter bollard for walkways and car parks?
Yes, for marking out walkways, parking bays and pedestrian areas, our metal bollards are a lighter option. This vehicle impact bollard, with its 170mm pole, is better suited to corners, doorways and loading bays where vehicles move.
Is there a heavier bollard for loading bays?
Yes, our safety bollards are a heavier steel option for doorways and loading bays with frequent vehicle movement. Compare their specification with this bollard’s 170mm pole and 300mm base plate to choose the right fit for your site.
Can I order several bollards for a run of doors?
Yes, you can order as many as you need to guard a run of doors, a loading bay or a traffic corridor. Every bollard comes with free next day delivery when you order before 4pm, so a full run can go in quickly.
Customer Reviews
How do you rate this product? Guidance:
- Please focus on the item itself. Your review will be most helpful if you include the specific reasons why you either liked or disliked the item.
- Try to be concise and straight to the point - but avoid single-word reviews.
Vehicle Impact Bollard Delivered Fast
Order before 4pm and get your vehicle impact bollard the next working day. With a 170mm galvanised steel pole, 300mm bolt-down base plate and bright yellow finish, it’s a practical choice for loading bays, warehouses and yards that need protection from accidental vehicle knocks.
