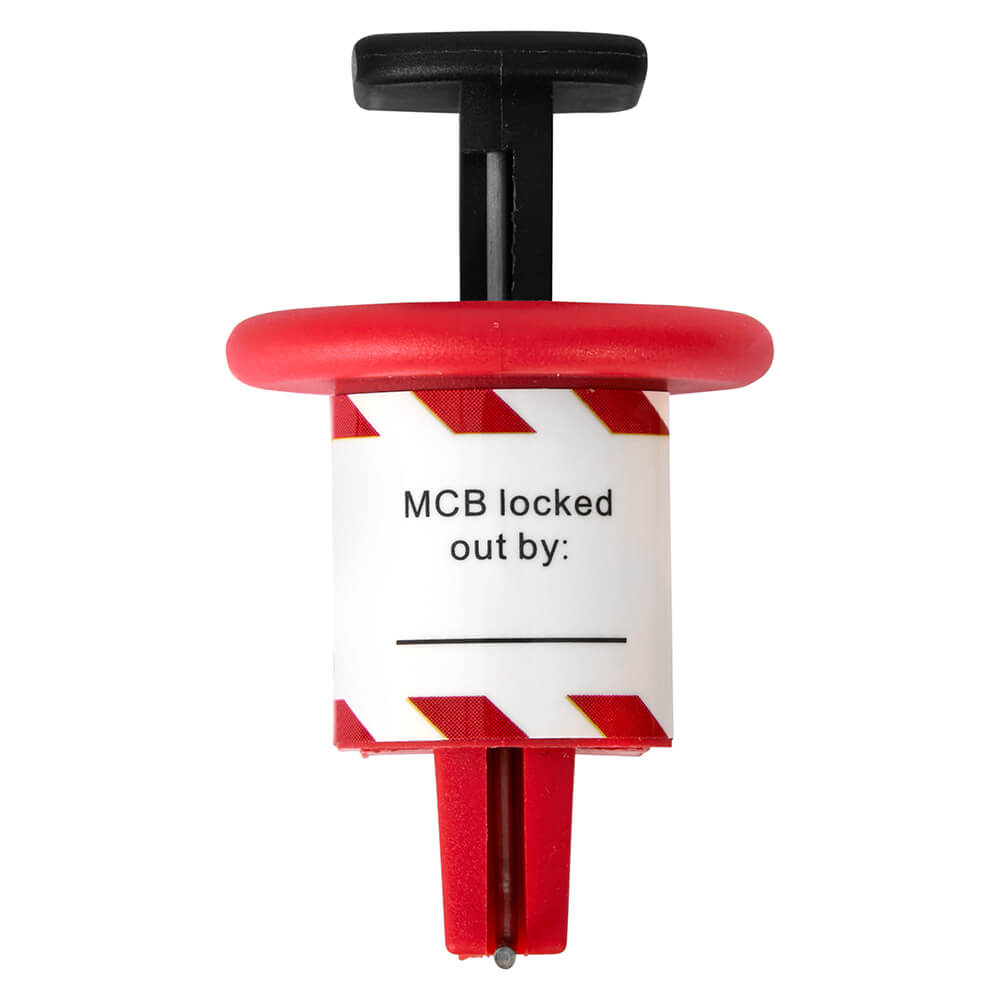

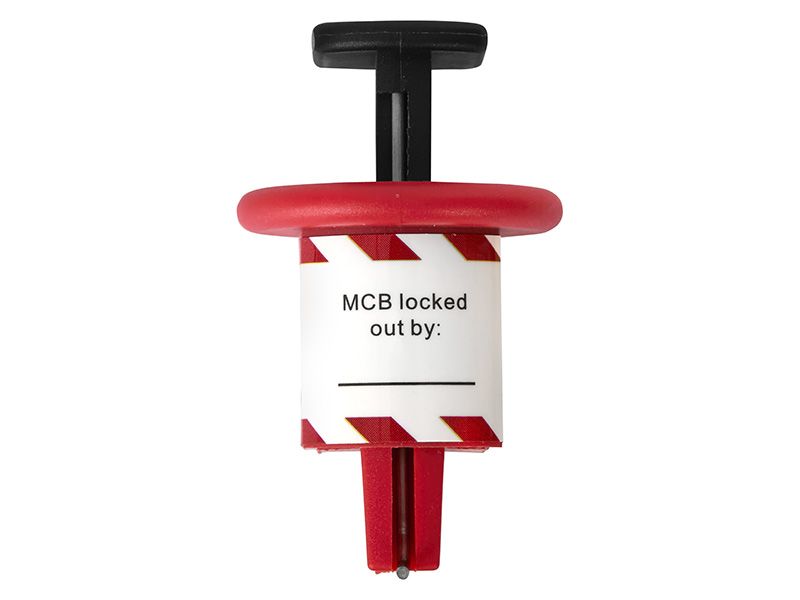

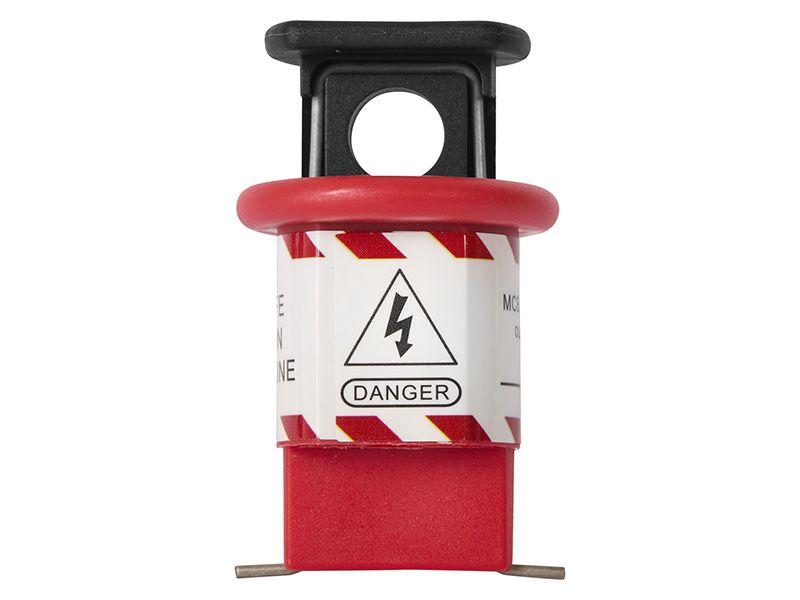

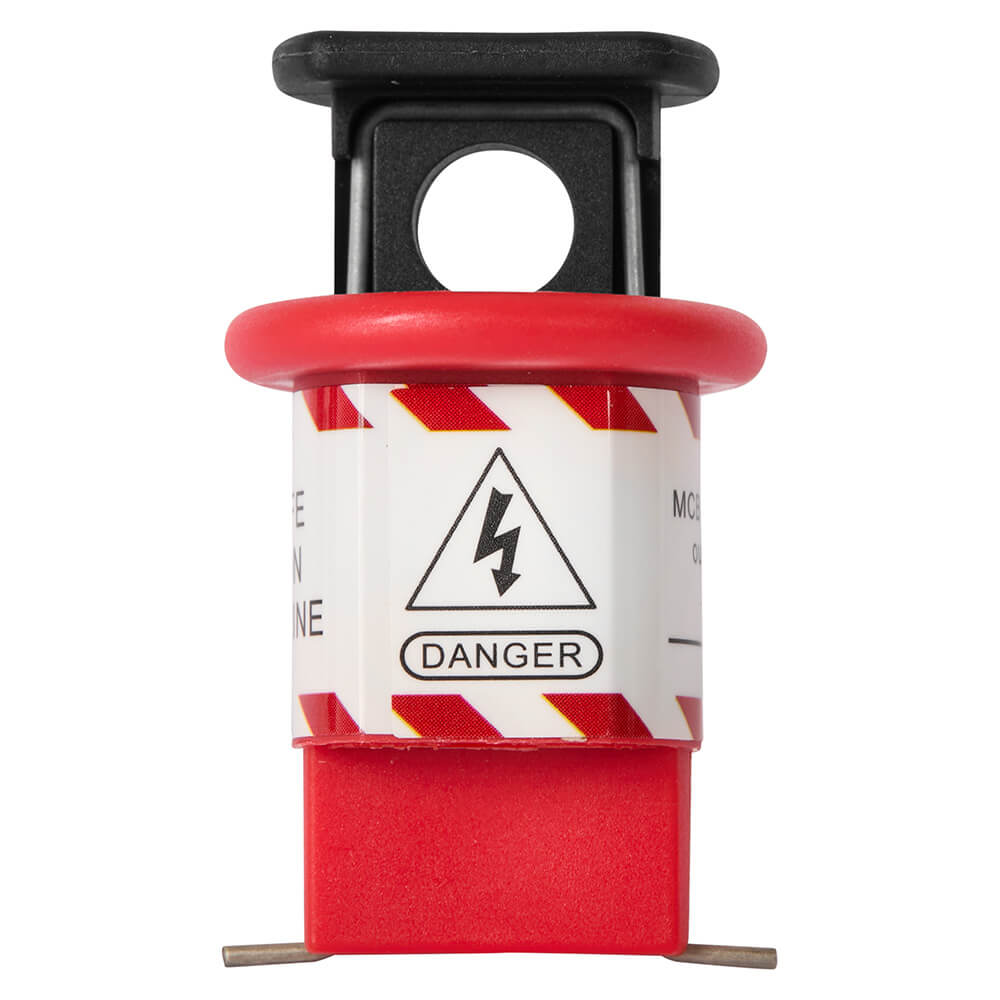

Pin Out Wide Lockout
FREE DELIVERY
Tool-free Lockout
- Versatile Lockout Solution: The Pin Out Wide Lockout secures miniature circuit breakers across offices, workshops, and industrial sites, providing reliable isolation.
- Reinforced Nylon Durability: Crafted from reinforced nylon PA, this lockout withstands heat, wear, and deformation, delivering dependable insulation and structural integrity.
- Snap-On Installation: Featuring a push-button catch design, the Pin Out Wide Lockout locks onto breakers in seconds without tools, streamlining your safety procedures.
- Broad Compatibility: Engineered to accommodate most single- and multi-pole miniature circuit breakers without panel modifications, this lockout streamlines stock requirements.

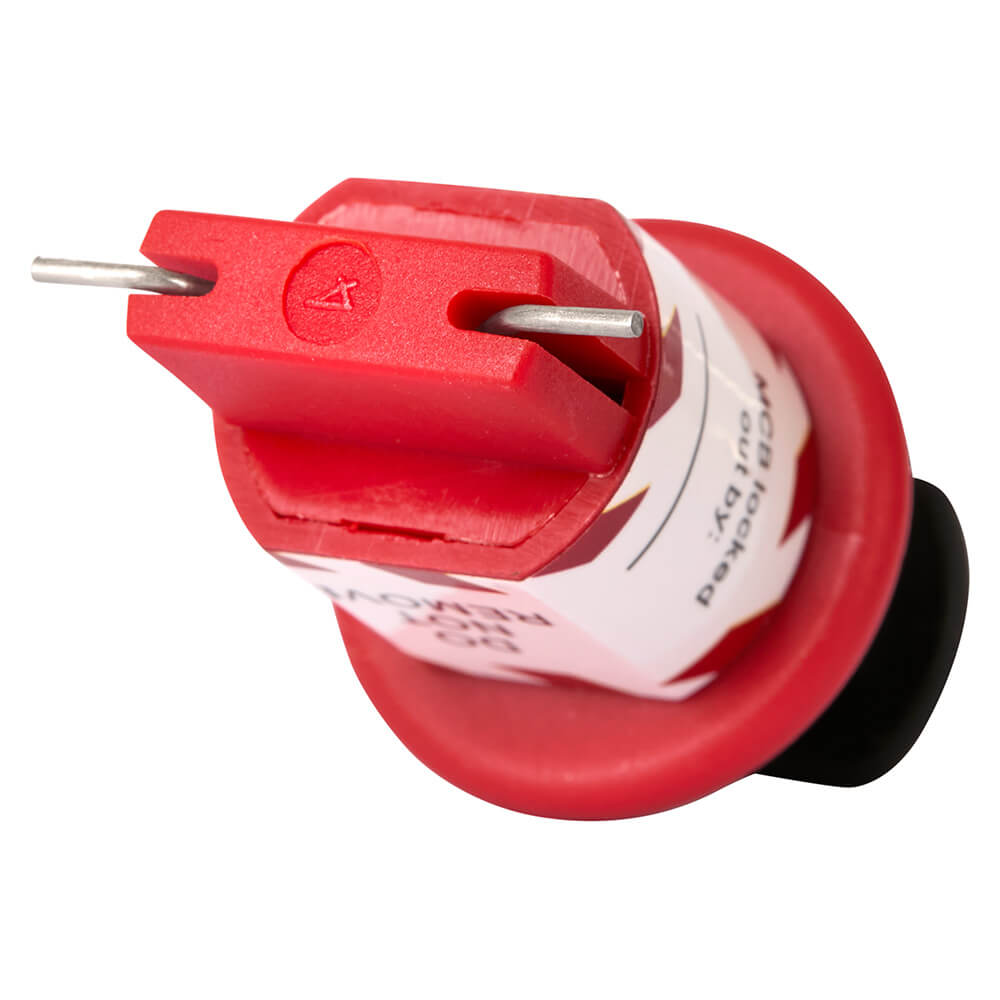

- Secure Pin-Out Control: The precision-engineered pin-out mechanism blocks toggle activation, sustaining a fail-safe lockout state and preventing unintended circuit energisation.
- Padlock-Ready Security: Designed to accept safety padlocks with up to an 8 mm shackle diameter, this lockout delivers an additional layer of tamper-resistant protection.
- Heat and Wear Resistance: Built from reinforced nylon PA, the lockout endures high temperatures, abrasion, and mechanical stress, ensuring a consistent, reliable barrier.
- Low-Profile Design: With its slim dimensions, the Pin Out Wide Lockout fits neatly within crowded switchgear, avoiding panel interference while offering full lockout functionality.
- Overall Dimensions: 40(H) x 18(W) x 25(D) mm – Compact and unobtrusive, this lockout balances minimal space requirements with dependable performance for any safety setup.
Secure Every Circuit
The Pin Out Wide Lockout brings peace of mind to every maintenance job by delivering a robust, user-friendly solution for energy isolation. Its thoughtfully engineered design minimises risk of accidental energisation, helping teams work confidently and safely.
Whether you’re servicing switchboards in a busy warehouse or isolating power in an office plant room, this lockout equipment reduces complexity and cuts downtime. With a straightforward, tool-free approach and industrial-grade durability, it sets a new standard for electrical safety on site.
Built to Last
Its durable construction ensures long-lasting reliability under heavy use, thanks to reinforced nylon PA that resists heat, wear and deformation. You can trust this lockout gear to maintain its structural integrity through countless service cycles, even in demanding industrial settings.
Beyond strength, the material provides excellent insulation properties that shield technicians from stray currents. That combination of toughness and safety makes it an investment that pays dividends in reduced replacement costs and enhanced protection.
Fast Setup
A simple push-button catch lets you secure the lockout in seconds, eliminating the need for extra tools or drilling. This streamlined installation process keeps maintenance schedules on track and cuts out unnecessary delays.
Once in place, the mechanism locks firmly around the breaker toggle, so you can focus on the task at hand rather than fiddling with fiddly fittings. It’s an intuitive system that anyone on site can master immediately.
Item Information
- Material: Reinforced nylon PA for exceptional durability and electrical insulation.
- Dimensions: 40(H) x 18(W) x 25(D) mm compact footprint.
- Weight: 0.1 kg for lightweight, easy handling.
- Padlock hole diameter: 8 mm for standard safety padlocks.
- Compatibility: Fits single- and multi-pole miniature circuit breakers.
- Installation: Push-button latch enables tool-free setup in seconds.
- Pin-out mechanism prevents toggle activation for secure lockout.
- Heat resistance up to industrial ambient temperatures.
- Wear-resistant surface withstands abrasion and mechanical stress.
- Low-profile design avoids interference with adjacent breakers.
- Colour: Black body with red accent for clear visibility.
- No panel modifications required for installation on most MCBs.
Wide Compatibility
Designed to fit most single- and multi-pole miniature circuit breakers without panel alterations, it adapts effortlessly to the equipment you already have. This versatility slashes the need for multiple part numbers, simplifies stock control and streamlines purchasing.
Whether you’re standardising across an array of breaker types or dealing with mixed switchgear, a single device covers all bases. That universal approach makes it easy to roll out consistent safety protocols throughout your facility.

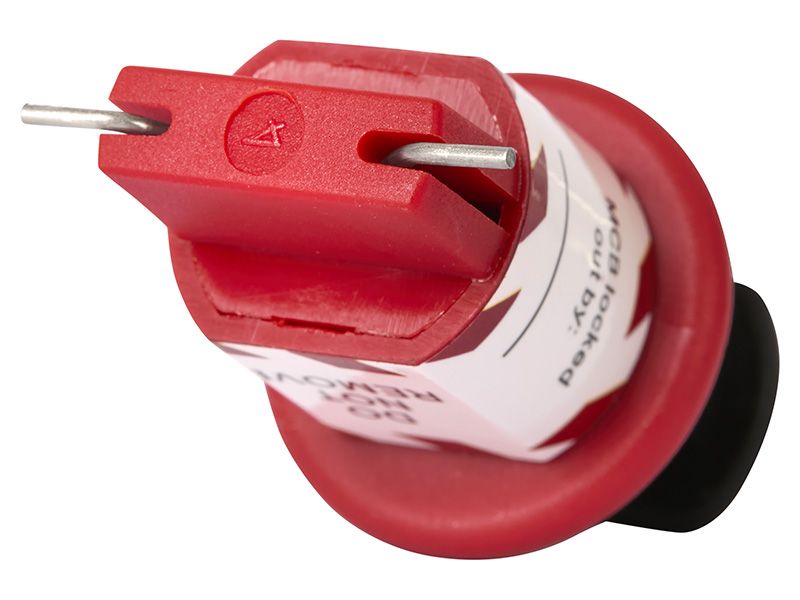

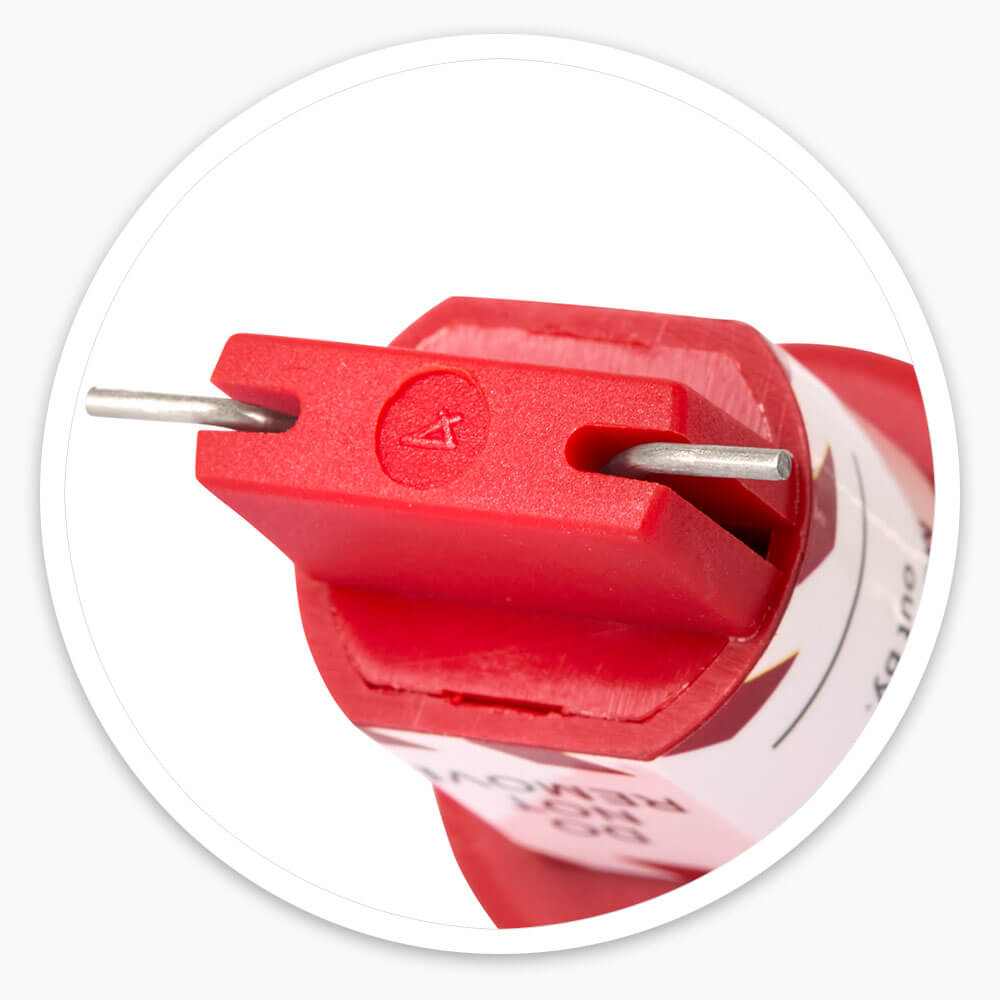

Pin-Out Security
Its precision pin-out mechanism blocks the breaker toggle from moving, creating a fail-safe barrier against accidental energisation. This straightforward design ensures that the circuit remains securely isolated throughout service operations.
By physically preventing the switch from being flipped, it removes uncertainty and enhances confidence during maintenance. Technicians can focus on their work, knowing the isolation point won’t be compromised.

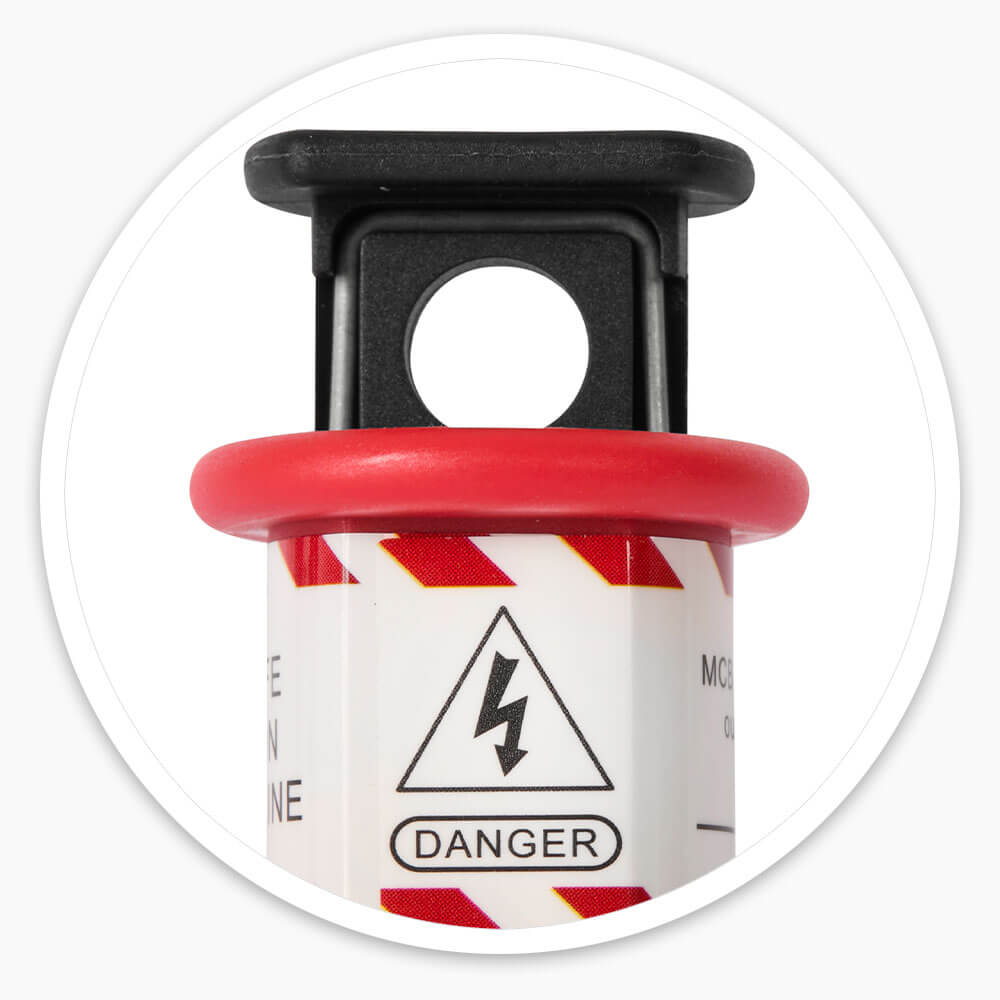

Padlock Integration

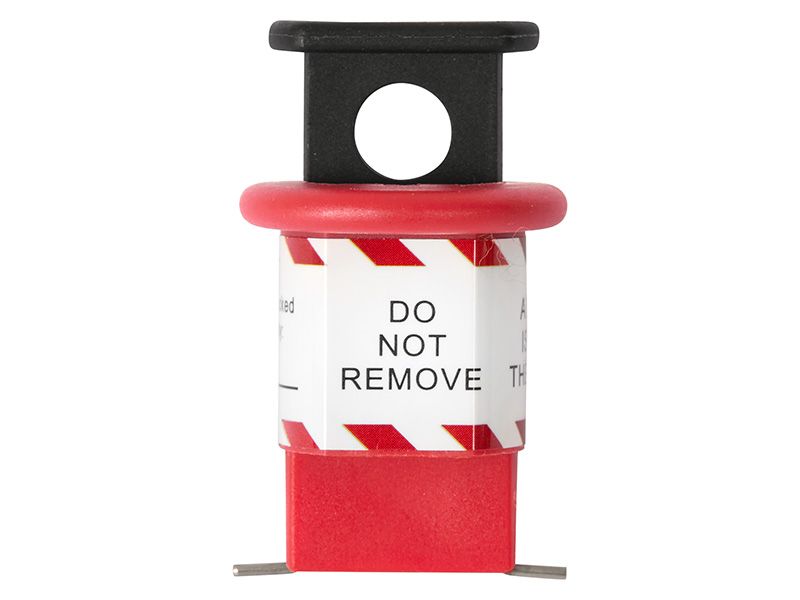

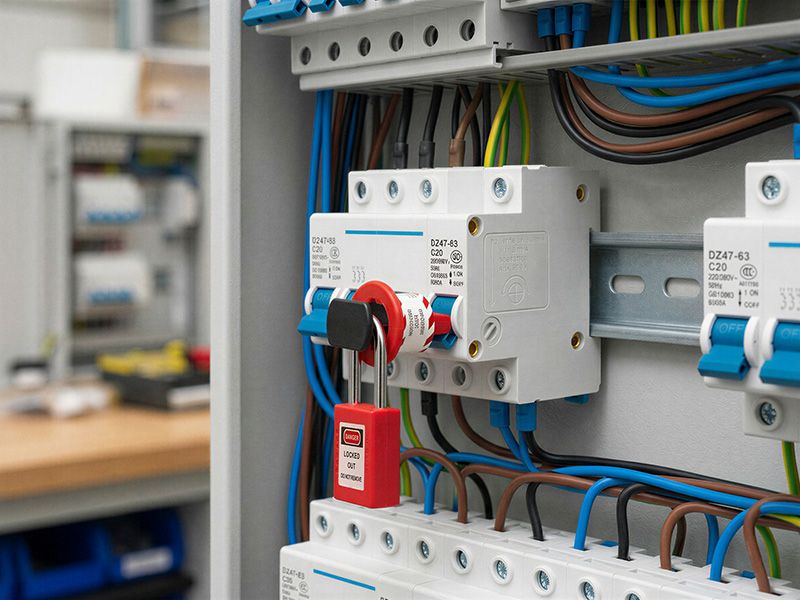

Designed to accept safety padlocks with up to an 8 mm shackle, it provides an extra layer of security without additional adapters. Simply slide your padlock into place and rest assured that unauthorised tampering is effectively deterred.
This straightforward compatibility means you can use existing padlocks from your safety inventory, saving time and reducing the need for specialised hardware. It’s a practical solution for enforcing clear lock-out procedures on site.
Heat & Wear Shield
Built from reinforced nylon PA, it stands up to high temperatures, abrasion and mechanical stress without cracking or deforming. This resilience guarantees consistent performance even in the toughest industrial environments.
The material’s inherent insulation properties also protect against stray currents, helping to maintain a safe working zone. Over repeated service cycles, this robustness translates into fewer replacements and lower long-term costs.
Low-Profile Design
With its slimline form, the lockout equipment fits neatly into crowded switch panels without obstructing adjacent breakers. This compactness simplifies installation and avoids the need for panel modifications.
Despite its minimal footprint, it delivers full lock-out functionality and clear visual indication when engaged. That balance of size and performance makes it ideal for a wide range of electrical setups.
