Flat Base Trolley - Two Fitted Handles - 500kg Maximum Load
FREE DELIVERY
| 20+ units gets 3% off | |
| 10+ units gets 2% off | |
| 5+ units gets 1% off |
Free Delivery - Next Working Day
500kg Maximum Load - Two Fitted Handles - 40mm Plywood Deck - Foot-Operated Brake - Free Next Day Delivery
- Two Fitted Handles: Handles give a firm grip for steering in tight spaces.
- 500kg Maximum Load: Steel-framed base moves heavy stock, materials and equipment.
- 40mm Plywood Deck: Thick plywood on a steel frame gives a flat, stable surface.
- Swivel and Braked Castors: Swivel castors steer easily and a foot brake holds it still.
- 195mm Solid Rubber Wheels: Steel-centred rubber wheels roll smoothly under heavy loads.
- Powder-Coated Blue Finish: Blue powder coat helps resist wear, scratches and dents.
- Slot-Together Modular Frame: Handles fit 34mm corner sockets and swap between layouts.
- Flat-Pack Assembly: Arrives flat-packed and the parts slot together on site.
- 710mm Platform to Handle: Handles stand 710mm above the platform for easy pushing.
- 1000 × 690 × 1190mm: Measures 1000mm high, 690mm wide and 1190mm deep.
- 1 Year Warranty: Backed by a one-year warranty.
- Free Next Day Delivery: Get your trolley delivered free the next working day.

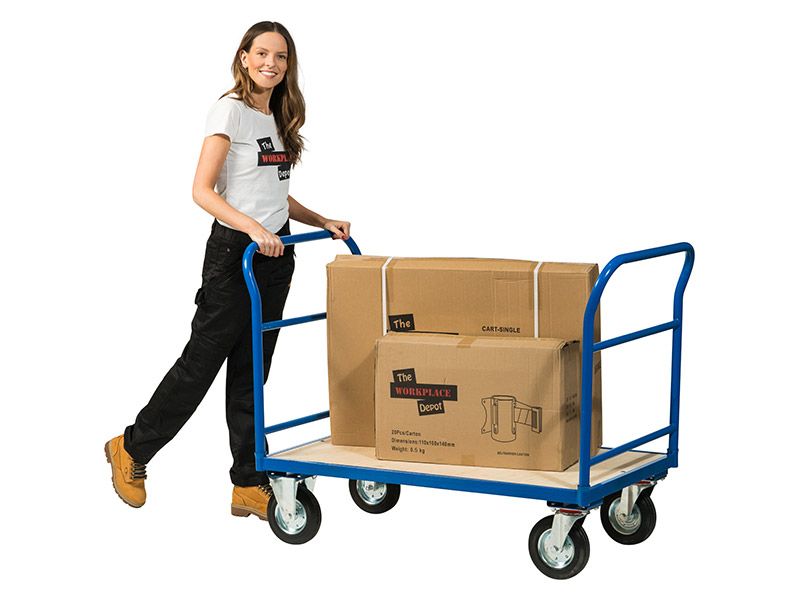

Flat Base Trolley With Two Fitted Handles
The Flat Base Trolley is a 500kg steel platform trolley with two fitted handles and a flat 40mm plywood deck for stacked boxes, equipment and delicate items. It suits warehouses, factories, offices and retail spaces that move heavy goods every day, and it comes with free next day delivery.
Specification
OVERALL HEIGHT- 1000mm
OVERALL DEPTH- 1190mm
OVERALL WIDTH- 690mm
- BOTTOM SHELF HEIGHT
- 275mm
- PLATFORM TO TOP OF HANDLE
- 710mm
- CENTRE GAP
- 305mm
- TOP GAP
- 235mm
- BOTTOM GAP
- 75mm
PLATFORM THICKNESS- 40mm
WHEEL DIAMETER- 195mm
- HOLE DIAMETER
- 34mm
WEIGHT- 32.3kg
MAXIMUM LOAD- 500kg
COLOUR- Blue
MATERIAL- Steel
WHEEL TYPE- Solid Rubber
WARRANTY- 1 year
COMMODITY CODE- 8716800000
- GTIN
- 0723172209537
Two Fitted Handles
Two fitted handles give users a firm, comfortable grip for pushing, pulling and steering, even with a full load on board. They stand 710mm above the platform and make the trolley easy to guide through warehouse aisles, factory floors and office corridors.
500kg Maximum Load
The steel-framed base carries up to 500kg, so one trolley can move heavy stock, materials or equipment in a single trip, cutting down on repeat journeys and manual handling. Every trolley built on this base shares the same 500kg maximum load, whichever handles or sides are fitted.
40mm Plywood Deck
A 40mm plywood deck sits in the tubular steel frame, giving a flat, even surface for stacked boxes, bulky items and delicate equipment. The thick deck spreads weight across the frame, helping keep loads steady as the trolley moves around the warehouse or shop floor.
Powder-Coated Blue Finish
The steel frame has a blue powder-coated finish that helps protect it against wear, scratches and dents from daily use in warehouses, factories and retail spaces. The bright blue colour also makes the trolley easy to spot and identify on a busy site.
Foot-Operated Brakes
The swivel castors steer the trolley through tight spaces and corners, and a foot-operated brake holds it in place while it’s loaded or unloaded. Users can apply the brake without bending down, which helps keep loading bays and work areas safe.
195mm Solid Rubber Wheels
The 195mm solid rubber wheels have steel centres for strength under heavy loads and roll smoothly and quietly across warehouse, workshop and office floors. The trolley is robust enough to use outdoors, though it’s best stored indoors when not in use.
Slot-Together Modular Frame
The trolley arrives flat-packed and slots together. Its handles fit into 34mm sockets at the corners of the steel frame, the same base used across our platform trolley range, so parts come apart and can be swapped to change the layout as your work changes.
Why Choose This Flat Base Trolley?
- Two Fitted Handles – Give a firm, steady grip for pushing and steering.
- 500kg Maximum Load – Moves heavy stock and materials in one trip.
- 40mm Plywood Deck – A flat, thick deck on a steel frame supports stacked loads.
- Foot-Operated Brake – Holds the trolley still while it’s loaded and unloaded.
- 195mm Solid Rubber Wheels – Steel-centred wheels roll smoothly under load.
- Powder-Coated Finish – Helps the frame resist wear, scratches and dents.
- Modular Design – Parts slot together and swap between layouts.
- 1 Year Warranty – Backed by a one-year warranty.
Frequently Asked Questions
How much weight can the Flat Base Trolley carry?
It carries up to 500kg. That is the maximum load for the steel-framed base, which every trolley in the range shares, so the figure stays the same whichever handles or sides are fitted. Check heavy loads against this figure and your own risk assessment before moving them.
Does the trolley arrive assembled?
No, it arrives flat-packed for easy assembly. The handles slot into 34mm sockets at the corners of the steel frame, and the parts fit together from there. If you don’t need handles at all, the platform dolly cart is the same base on its own.
Can I use the trolley outdoors?
Yes, it’s robust enough to use outdoors, for example to move loads between buildings. We recommend storing it indoors when it’s not in use to keep the plywood deck and powder-coated finish in good condition.
Which castors steer and which have brakes?
The swivel castors steer the trolley, and they have a foot-operated brake so you can hold the trolley still while loading and unloading. All the wheels are 195mm solid rubber with steel centres.
Can I add sides or swap the handles later?
Yes, the range is modular. Handles, sides and shelves slot into the corner sockets of the same steel base, so parts come apart and can be swapped between layouts. If you need sides to hold loose items, see the flatbed trolley with sides.
Will the trolley fit through my doorways?
The trolley is 690mm wide, 1190mm long and 1000mm high overall, and weighs 32.3kg. Measure your doorways, lifts and aisles against these figures before ordering so it moves freely around your site.
Is it suitable for stacked boxes?
Yes, the flat 40mm plywood deck gives an even surface for stacked boxes and delicate items, and the two fitted handles make it easy to steer with a full load. If you want mesh panels to keep stacked loads in place, see the warehouse trolley.
What warranty does the trolley come with?
The Flat Base Trolley is backed by a one-year warranty. If you have a problem with it in that time, contact our customer service team with your order details.
